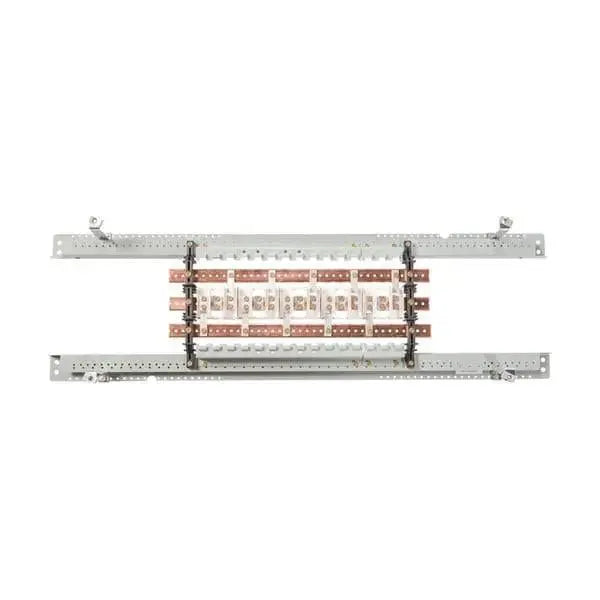

PRL1X3225X42CS - Eaton PRL1X Interior No TFL 120/208 3P 4W 225A 42 CKT Cu Bus

The Eaton PRL1X Interior No TFL is a high-performance interior designed for 120/208V, 3-phase, 4-wire electrical systems. With a 225A main bus rating, it supports up to 42 circuits, making it ideal for a wide range of commercial and industrial applications. Featuring a copper bus, this interior ensures superior conductivity and long-term reliability. The design excludes TFL (Terminal Lug Function) for specific configurations, making it a versatile solution for various panelboard setups. It is engineered for easy installation and integration into compatible Eaton panelboard enclosures.

Key Features:

• Product Type: Panelboard Interior (No TFL)
• Voltage Rating: 120/208V, 3-Phase, 4-Wire
• Amperage Rating: 225 Amps
• Circuit Capacity: 42 Circuits
• Bus Material: Copper
• Compatibility: Designed for Eaton PRL1X panelboard enclosures
• No TFL: Excludes Terminal Lug Function for specific applications
• Installation: Easy integration for flexible panelboard setups

The Eaton PRL1X Interior No TFL provides a reliable and efficient solution for electrical distribution needs, ensuring safe and organized power management in commercial and industrial environments.

Documents:

Brochures
Eaton's Pow-R-Xpress stocking program

Multimedia
Pow-R-Line Xpert family overview

Specifications and datasheets
Eaton Specification Sheet - PRL1X3225X42CS
