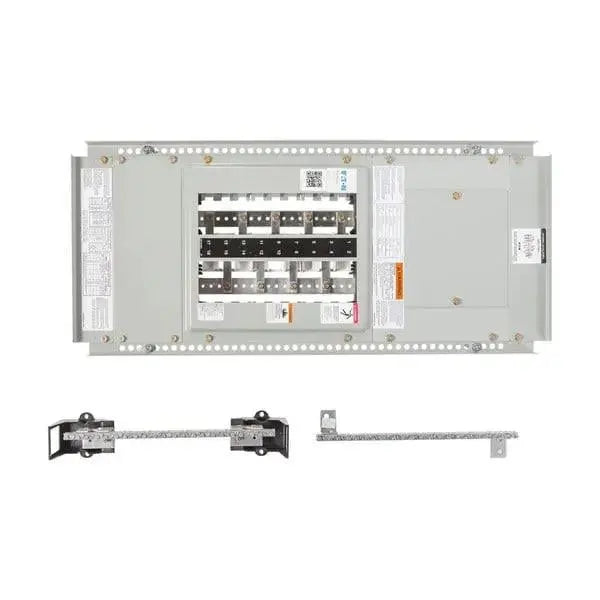

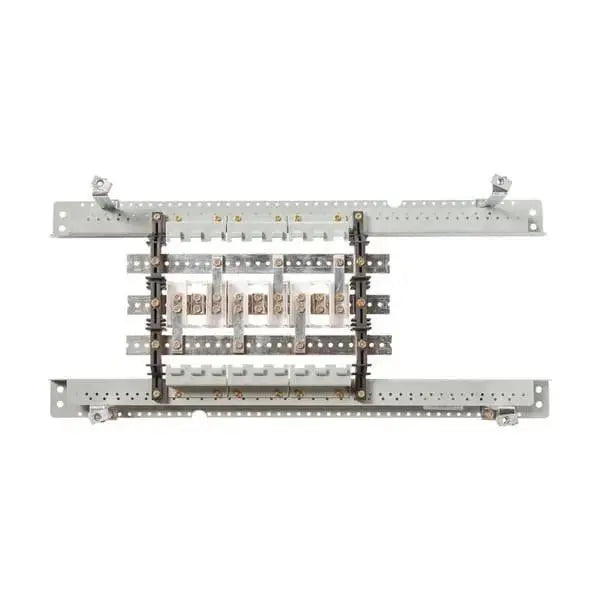

PRL1X3100X30A - Eaton PRL1X Interior 120/208 3P 4W 100A 30 CKT Al Bus

The Eaton PRL1X Interior is a high-quality panelboard interior designed for efficient and reliable power distribution in commercial and industrial applications. Rated for 100A and featuring 30 circuit spaces, this interior is designed for 120/208V, 3-phase, 4-wire systems. With an aluminum bus bar for enhanced conductivity and durability, it provides a compact yet robust solution for managing electrical circuits in environments with moderate to heavy power demands. It is ideal for use in conjunction with Eaton’s compatible enclosures to create a fully integrated electrical distribution system.

Key Features:

• Product Type: Panelboard Interior
• Amperage Rating: 100 A
• Voltage Rating: 120/208V AC
• Phase/Wire Configuration: 3-Phase, 4-Wire
• Number of Circuits: 30 Circuits
• Bus Material: Aluminum (providing an optimal balance of conductivity and weight)
• Enclosure Compatibility: Designed to be installed in Eaton PRL1X enclosures (sold separately)
• Application: Suitable for commercial and light industrial applications requiring reliable power distribution
• Mounting Style: Compatible with both flush and surface mounting
• Certifications: UL Listed for safety and compliance with industry standards

The Eaton PRL1X Interior 120/208 3P 4W 100A 30 CKT Al Bus offers an efficient, reliable, and cost-effective solution for electrical power distribution, making it an excellent choice for modern commercial and industrial electrical systems.

Documents:

Brochures
Eaton's Pow-R-Xpress stocking program

Multimedia
Pow-R-Line Xpert family overview

Specifications and datasheets
Eaton Specification Sheet - PRL1X3100X30A
