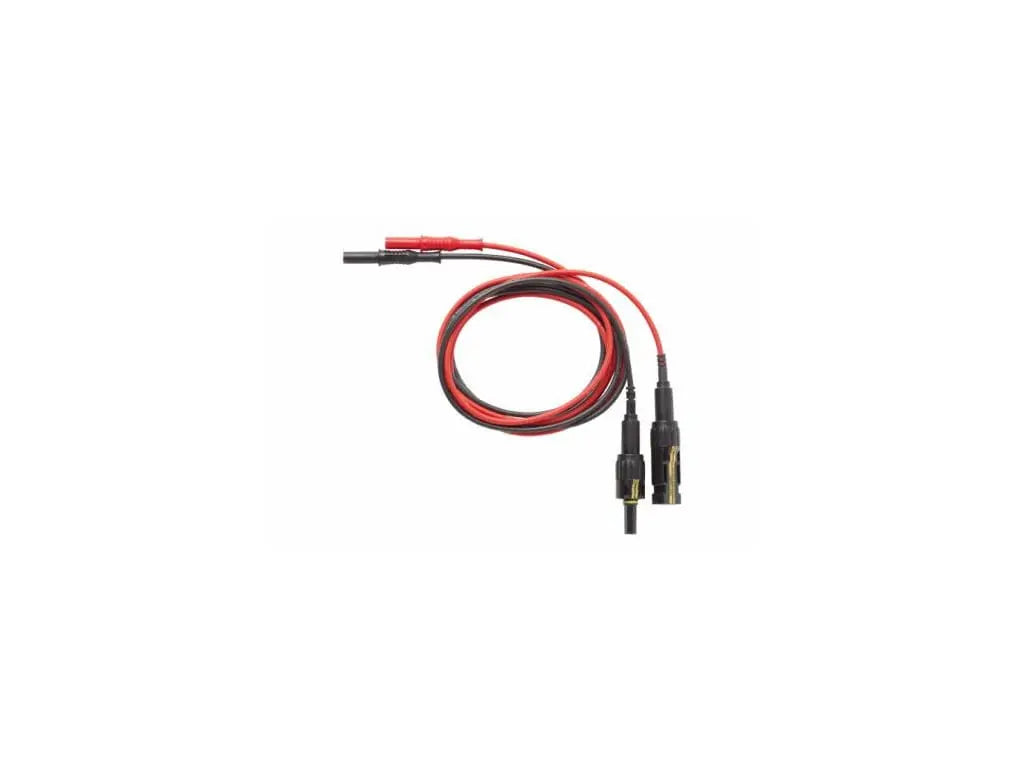

Pomona PVLEAD1 - Solar MC4 to 4mm Test Lead Set

The Pomona PVLEAD1 is a precision-engineered duo of test leads (red and black) designed to adapt standard solar MC4 connectors to 4 mm sheathed banana plugs. Ideal for photovoltaic (PV) maintenance, it delivers a safe, reliable connection between solar modules and multimeters or clamp meters.

Key Features

• Complete Lead Set – Includes one red and one black lead (male and female MC4 respectively), each terminating in a 4 mm insulated banana plug.

• Generous Reach – 60″ (1.5 m) length per lead for flexible setup in PV arrays.

• High Safety Ratings – Certified to CAT III 1000 V / CAT IV 600 V and rated to 20 A per IEC/EN 61010‑031 standards.

• Durable Construction – Nickel‑plated contacts provide reliable conductivity and corrosion resistance.

• Plug Compatibility – Seamlessly connects MC4-equipped PV modules to test equipment that accepts standard banana plug interfaces

Application Scenarios

• Routine performance measurements on solar panels and PV systems.

• Troubleshooting and diagnostics at inverters, junction boxes, and combiner arrays.

• Field service verifications where standard test tools need secure solar panel connections.

Specifications at a Glance

Why It Matters

The PVLEAD1 solves the common challenge of linking solar PV systems with standard test gear. Its rugged, safety-certified design ensures technicians can confidently measure voltage and current on solar installations without improvised adapters or exposure risk.

Document: Specification Sheet
