PLK1 - Eaton Molded Case Circuit Breaker Accessory Padlockable Handle Lock

The Eaton PLK1 Padlockable Handle Lock Hasp is an essential accessory for enhancing the safety and security of electrical systems. Designed specifically for Eaton Series C molded case circuit breakers, this hasp is compatible with two-, three-, and four-pole breakers within the F-frame category.Its primary function is to allow the circuit breaker handle to be securely locked in either the "ON" or "OFF" position, providing an effective means for lockout/tagout procedures and ensuring compliance with safety regulations.

Key Features:

• Type: Padlockable Handle Lock Hasp
• Compatibility: Eaton Series C molded case circuit breakers
• Frame Size: F-frame
• Poles Supported: Two-, three-, and four-pole breakers
• Locking Positions: Handle can be locked in either "ON" or "OFF" position
• Mounting Options: Hasp can be mounted to either the left or right side of the breaker handle
• Construction: Durable design with included mounting hardware
• Dimensions: Approximately 4.3 inches (length) x 1.9 inches (width) x 1 inch (height)
• Weight: Approximately 0.15 lbs
• Certifications: UL Listed
• Catalog Number: PLK1
• UPC: 786679161586

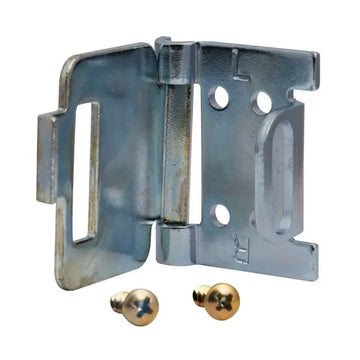

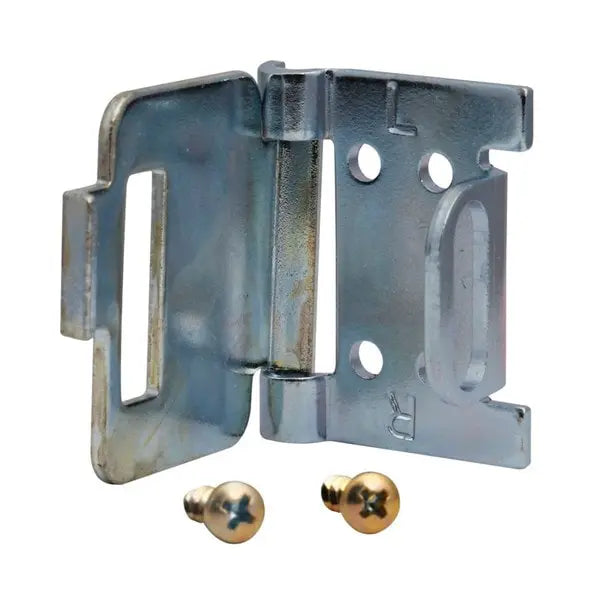

This hasp is supplied with two plates and two screws, facilitating straightforward installation.The design ensures that the handle can be securely locked, preventing unauthorized operation and enhancing overall system safety.
