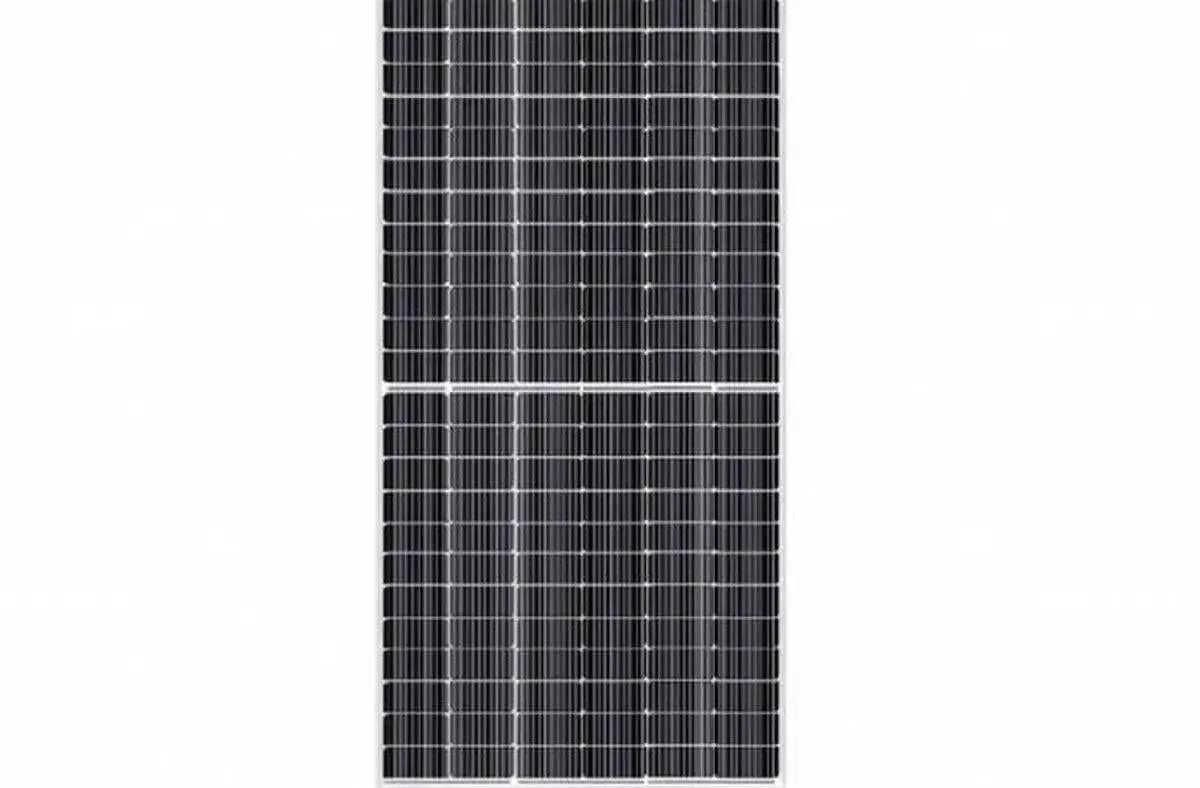

Phono Solar 550W Solar Panel 144 Cells Bifacial PS550M8-24/THB

Phono Solar 550W Solar Panel: Superior Energy Performance with 144 Cells Bifacial Technology

Phono Solar 550W Bifacial Solar Panel – 144 Half-Cut Cells, Mono PERC – PS550M8-24/THB

High-Efficiency, Durable, and Advanced Solar Technology

The Phono Solar 550W Bifacial Solar Panel (PS550M8-24/THB) is engineered for superior energy production, reliability, and longevity. Utilizing mono PERC technology with 144 half-cut cells, this panel offers outstanding efficiency and performance, making it ideal for residential, commercial, and utility-scale applications.

Key Features & Benefits

✅ High Power Output – Delivers up to 550W with an enhanced efficiency rate, maximizing energy generation per square meter.
✅ Bifacial Energy Gain – Captures sunlight on both the front and rear sides, increasing overall energy yield by up to 30% in optimal conditions.
✅ 144 Half-Cut Cell Technology – Reduces power loss, improves shade tolerance, and enhances durability.
✅ Durability & Longevity – Built with high-quality tempered glass and an aluminum alloy frame, designed to withstand extreme weather conditions, including heavy snow loads and strong winds.
✅ High Performance in Low-Light – Optimized for energy production even in cloudy, shaded, or low-light environments.
✅ Enhanced Temperature Coefficient – Ensures consistent performance in high temperatures for better energy conversion throughout the day.
✅ Certified & Reliable – IEC, UL, and ISO certified with industry-leading warranty protection for long-term peace of mind.

Specifications:

• Power Output: 550W
• Cell Type: Monocrystalline PERC, Half-Cut Cells
• Panel Efficiency: ~21%
• Bifacial Gain: Up to 30% additional energy production
• Voltage (Vmp): ~41V
• Current (Imp): ~13.4A
• Weight: Approx. 28kg
• Dimensions: ~2278 × 1134 × 35 mm
• Frame Material: Anodized Aluminum Alloy
• Glass: 2.0mm Tempered Glass
• Operating Temperature: -40°C to +85°C
• Warranty: 12-Year Product Warranty | 30-Year Power Output Warranty

Why Choose the Phono Solar 550W Bifacial Panel?

The Phono Solar PS550M8-24/THB is a high-performance, bifacial solar panel designed for maximum efficiency, durability, and long-term savings. Whether you're setting up a grid-tied or off-grid system, this panel delivers unmatched power output and excellent performance in various environments.

Documents;

Data Sheet

Advanced Bifacial Design for Enhanced Energy Yield

The Phono Solar 550W solar panel features 144 high-quality bifacial cells, designed to capture sunlight from both the front and back sides of the panel. This innovative design significantly increases energy generation by utilizing reflected sunlight, resulting in superior power output compared to traditional monofacial panels. Ideal for residential, commercial, and utility-scale solar projects, the bifacial technology ensures higher efficiency and reliability, especially under diverse environmental conditions.

Robust Build Quality and Durability

Constructed using premium materials, the Phono Solar 550W solar panel offers excellent durability and weather resistance. The panel is engineered with a sturdy frame and tempered glass that protects it against harsh weather, including heavy rain, snow, and high wind loads. This reliability ensures long-term performance with minimal degradation, making it a trusted choice for solar installations that demand consistent power output and longevity.

Optimized for Maximum Efficiency and Easy Installation

Designed for ease of installation, the Phono Solar 550W solar panel combines high efficiency with user-friendly features. Its 144-cell module is optimized for maximum sunlight absorption and minimal energy loss, delivering outstanding conversion rates. The panel’s compatibility with standard mounting systems further facilitates quick setup and integration into existing or new solar arrays, helping users maximize their return on investment with reduced installation time.
