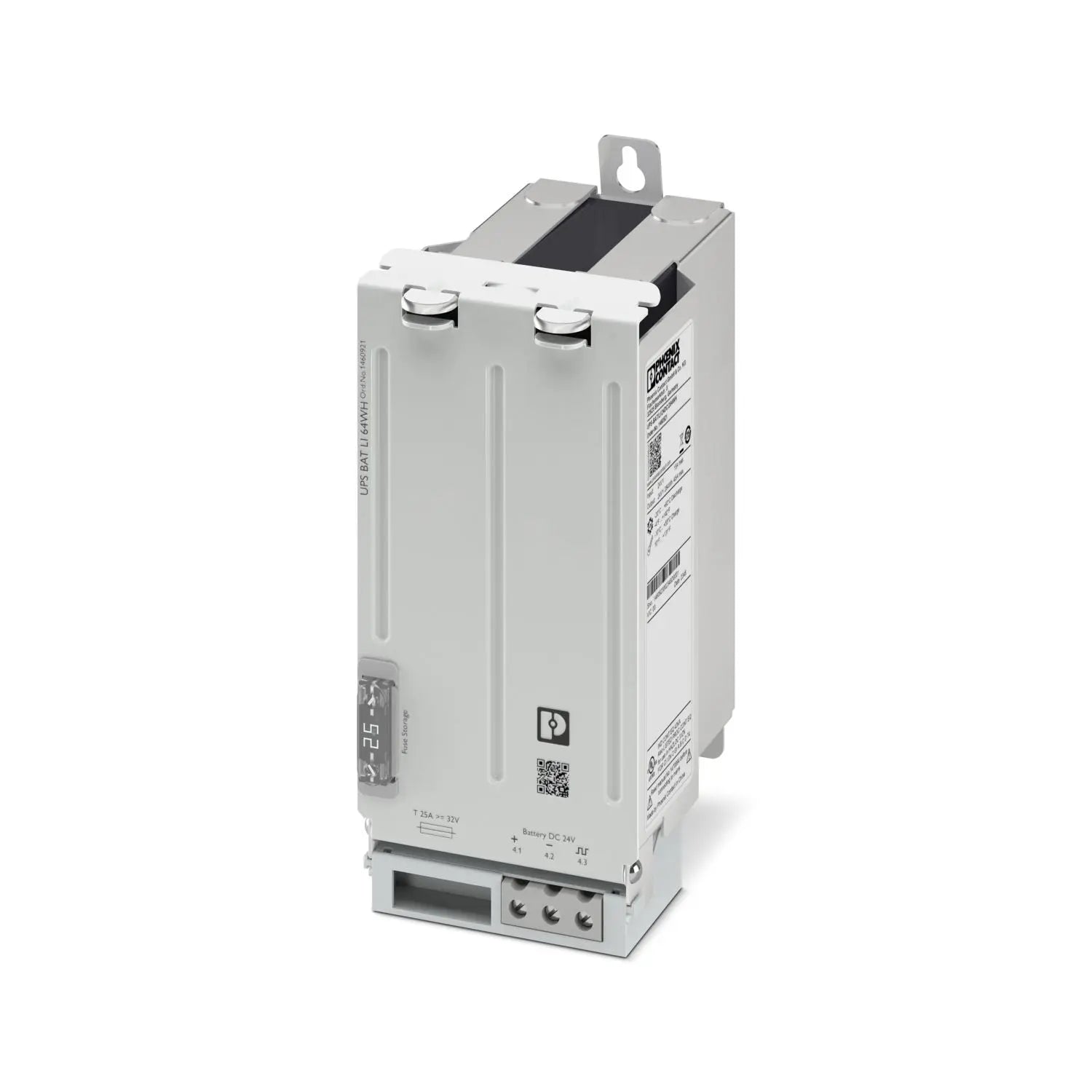

Phoenix Contact UPS-BAT/LI/24DC/64WH - Battery module

The UPS-BAT/LI/24DC/64WH is a lithium-ion energy storage module designed for Phoenix Contact’s QUINT UPS systems. It provides backup power in case of DC supply failure, ensuring continuous operation of critical industrial equipment.

Key Features

• Battery Type: Lithium-ion (Li-ion)

• Nominal Voltage: 24 V DC

• Capacity: 64 Wh

• Service Life: Long-lasting with up to 8 years design life under normal conditions

• Temperature Range: Wide operational range for demanding environments

• Maintenance-Free: No need for electrolyte refilling (unlike lead-acid modules)

• Compact & Lightweight: Smaller footprint compared to lead-acid equivalents

• Smart Monitoring: Communicates with QUINT UPS to provide state-of-charge and diagnostic data

• High Reliability: Designed for industrial automation, process control, and critical systems

Dimensions & Construction

• Width: 75 mm

• Height: 130 mm

• Depth: 113 mm

• Weight: ~0.8 kg (lightweight vs. lead-acid alternatives)

• Housing: Rugged, DIN rail-mountable design

Typical Applications

• Industrial automation systems

• PLCs (Programmable Logic Controllers)

• Networking & communication equipment in control cabinets

• Safety systems & emergency backup power

• Renewable energy applications (small PV/solar DC systems requiring short backup)
