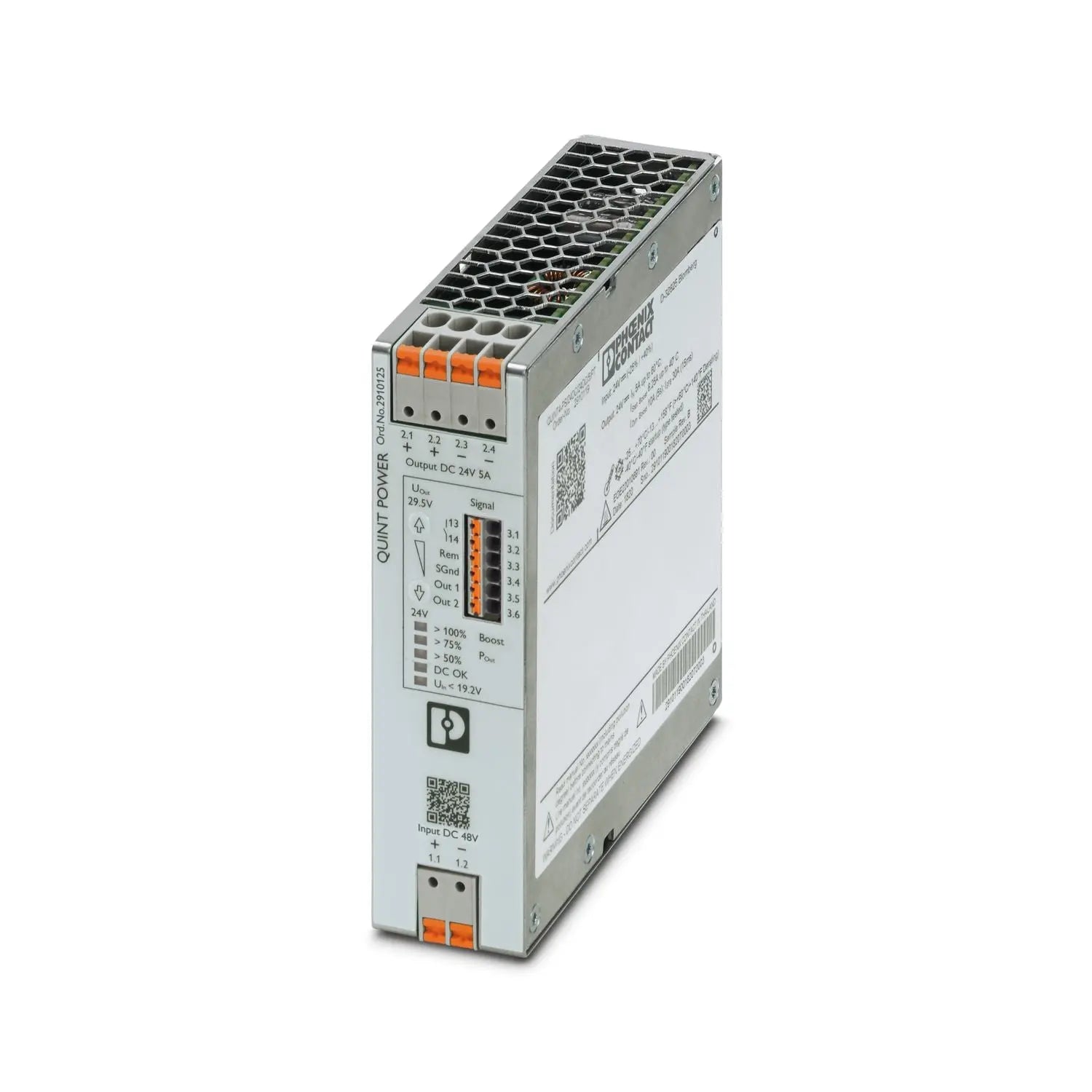

Phoenix Contact QUINT4-PS/48DC/24DC/5/PT – DC/DC Converter

The Phoenix Contact QUINT4-PS/48DC/24DC/5/PT is a high-performance DC/DC converter designed to deliver maximum reliability and efficiency in demanding industrial environments. With an input voltage of 48 V DC and a regulated output of 24 V DC at 5 A (120 W), it ensures a stable and safe power supply for sensitive control systems, automation equipment, and other mission-critical applications.

Equipped with QUINT POWER technology, this converter offers advanced diagnostics, preventive function monitoring, and selective fuse triggering to guarantee system uptime. Its high MTBF rating and wide temperature tolerance make it ideal for harsh operating conditions.

Key Features:

• Input Voltage: 48 V DC

• Output Voltage: 24 V DC (regulated)

• Output Current: 5 A

• Output Power: 120 W

• Design: Push-in connection technology (PT) for fast, tool-free wiring

• Functionality: Preventive function monitoring, selective fuse tripping

• Reliability: High MTBF and robust design for continuous industrial use

• Mounting: DIN-rail mountable, compact housing

Applications:

• Industrial automation and process control

• Machine building and robotics

• Transportation and infrastructure systems

• Renewable energy and power distribution panels
