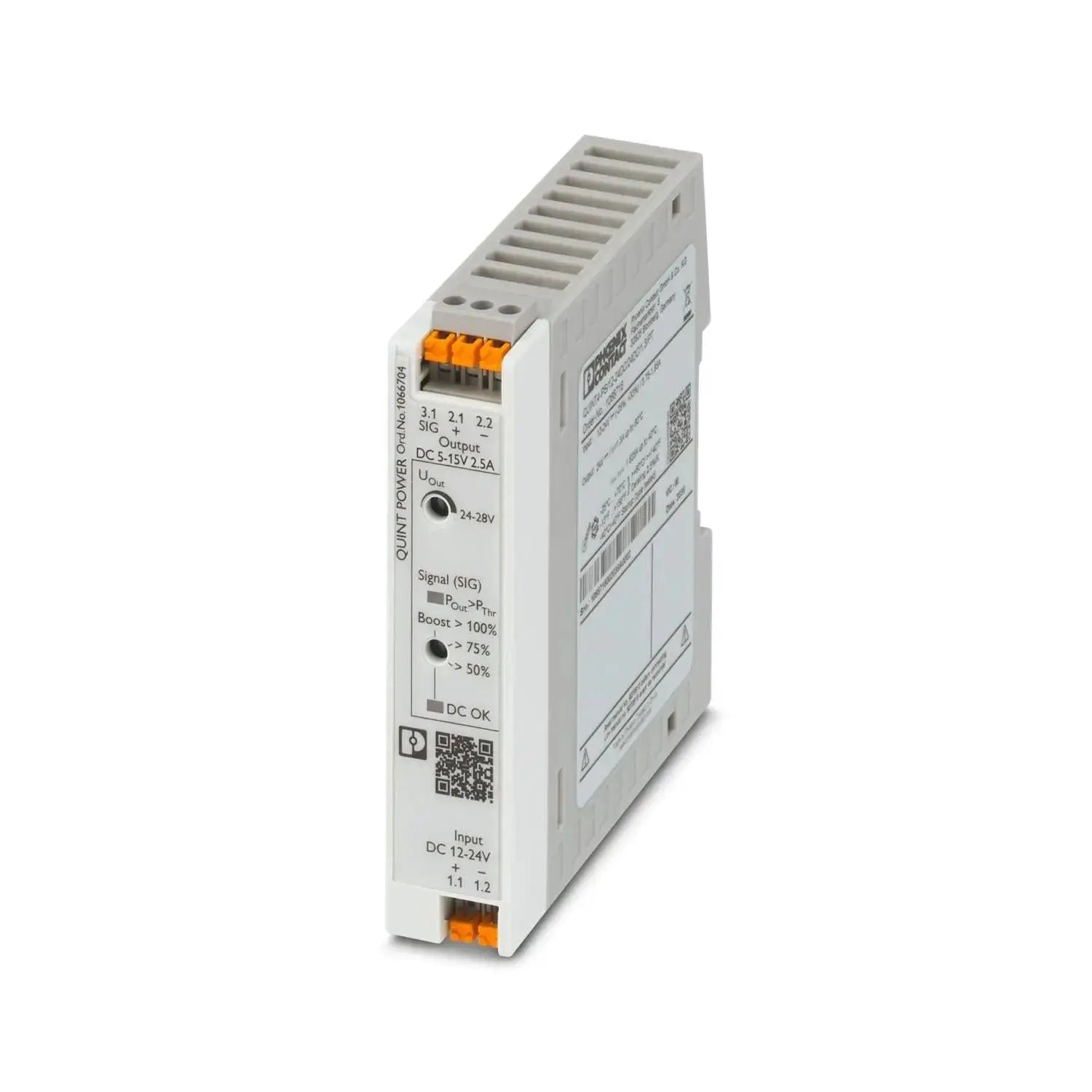

Phoenix Contact QUINT4-PS/12-24DC/5-15DC/2.5/PT - DC/DC converter

Ensure reliable and regulated DC power conversion in demanding industrial environments with the Phoenix Contact QUINT4 series. This high-performance DC/DC converter accepts an input voltage range of 12–24 V DC and provides a stable 5–15 V DC adjustable output at up to 2.5 A (max. 37.5 W).

Featuring wide-range input, high efficiency, and electromagnetic compatibility compliance, this unit is ideal for isolating, adapting, or regenerating DC voltages in control, automation, and instrumentation systems. The QUINT4 series also offers Preventive Function Monitoring, allowing real-time diagnostics for critical power parameters to prevent downtime.

Key Features:

• Input Voltage: 12–24 V DC

• Output Voltage: Adjustable 5–15 V DC

• Output Current: 2.5 A (max. 37.5 W)

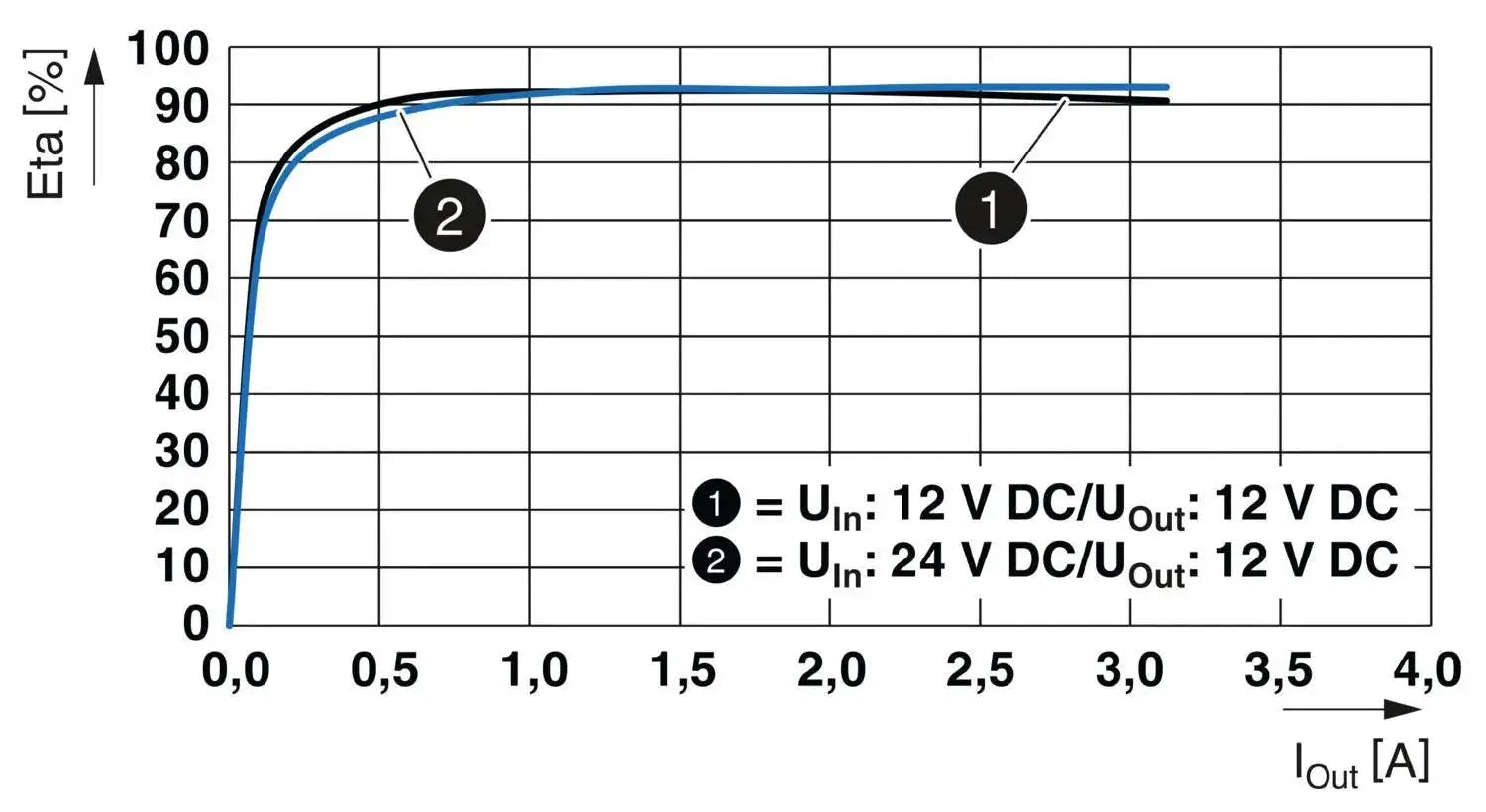

• High efficiency for reduced energy loss and heat generation

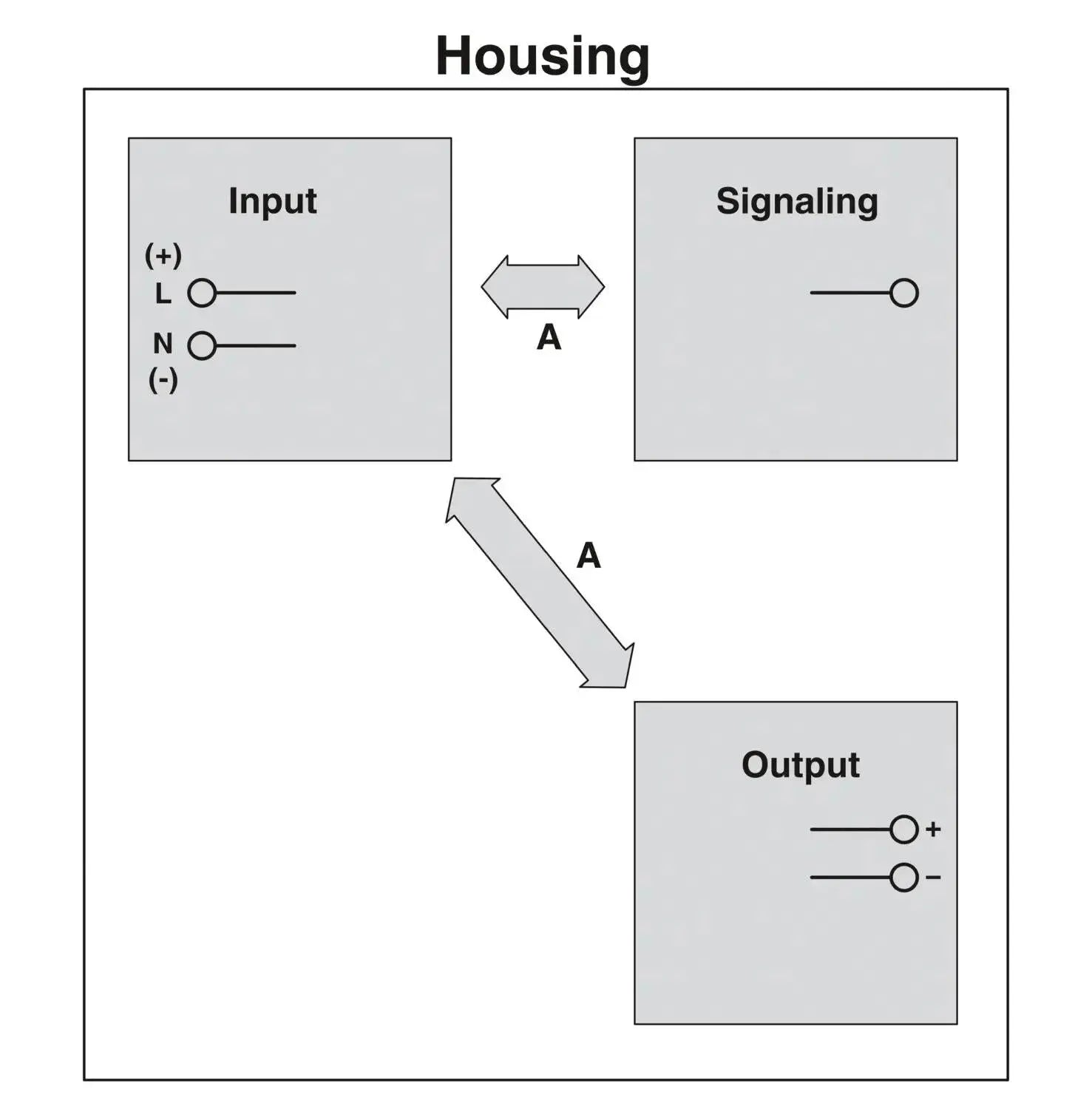

• Galvanic isolation between input and output for equipment protection

• Preventive Function Monitoring for early fault detection

• DIN rail mountable for easy installation in control panels

• Operating Temperature Range: –25 °C to +70 °C

Dimensions:

• Width: 32 mm

• Height: 130 mm

• Depth: 102 mm

• Weight: approx. 470 g

Typical Applications:

• Supplying sensors, controllers, and PLCs with stable DC voltage

• Voltage matching between different DC bus systems

• Isolating sensitive loads from supply fluctuations

• Regenerating voltage in extended cable runs

Document: Specification Sheet
