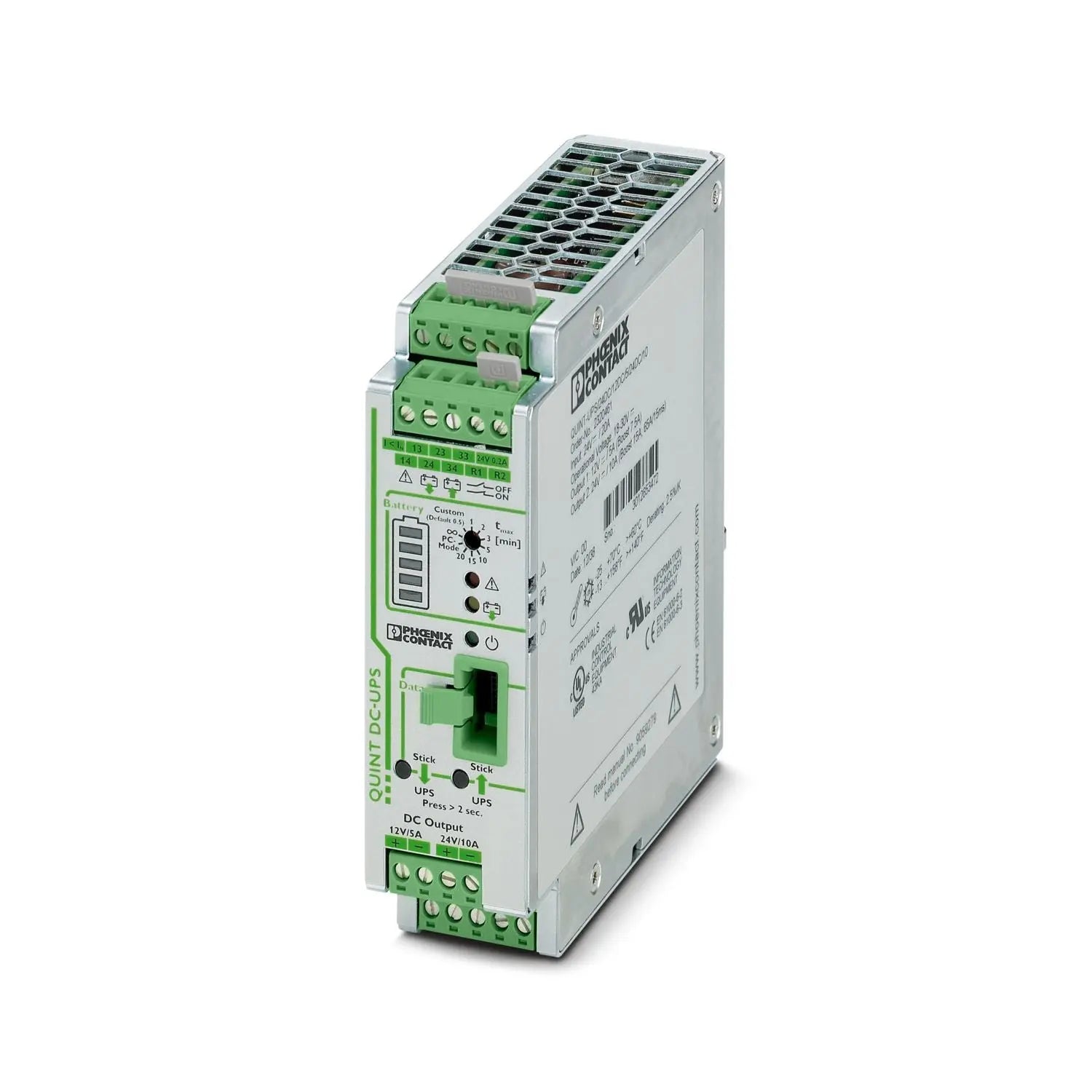

Phoenix Contact QUINT‑UPS/24DC/12DC/5/24DC/10 – Dual‑Voltage DIN‑Rail UPS

The QUINT‑UPS/24DC/12DC/5/24DC/10 is a smart, dual-voltage uninterruptible power supply designed for DIN-rail mounting in industrial applications. From a 24 V DC input (18–30 V DC), it delivers:

• 24 V DC output at 10 A

• 12 V DC output at 5 A

Equipped with intelligent IQ technology, it ensures optimal buffer time, battery management, and system signaling. Features include fast charging, automatic battery detection, tool-free replacement, power boosting, and SFB technology for rapid fuse breaking. It also delivers comprehensive relay outputs for remote monitoring (alarm, battery mode, etc.), and is housed in a robust, humidity-resistant, IP20-rated metal casingideal for harsh industrial environments

Key Features:

• Input: 24 V DC (18–30 V DC)

• Outputs: 24 V/10 A & 12 V/5 A

• Dual output power: up to 360 W total

• Efficiency: >98% (main), >93% with storage

• Buffer runtime: up to ~3 hours with 38 Ah battery

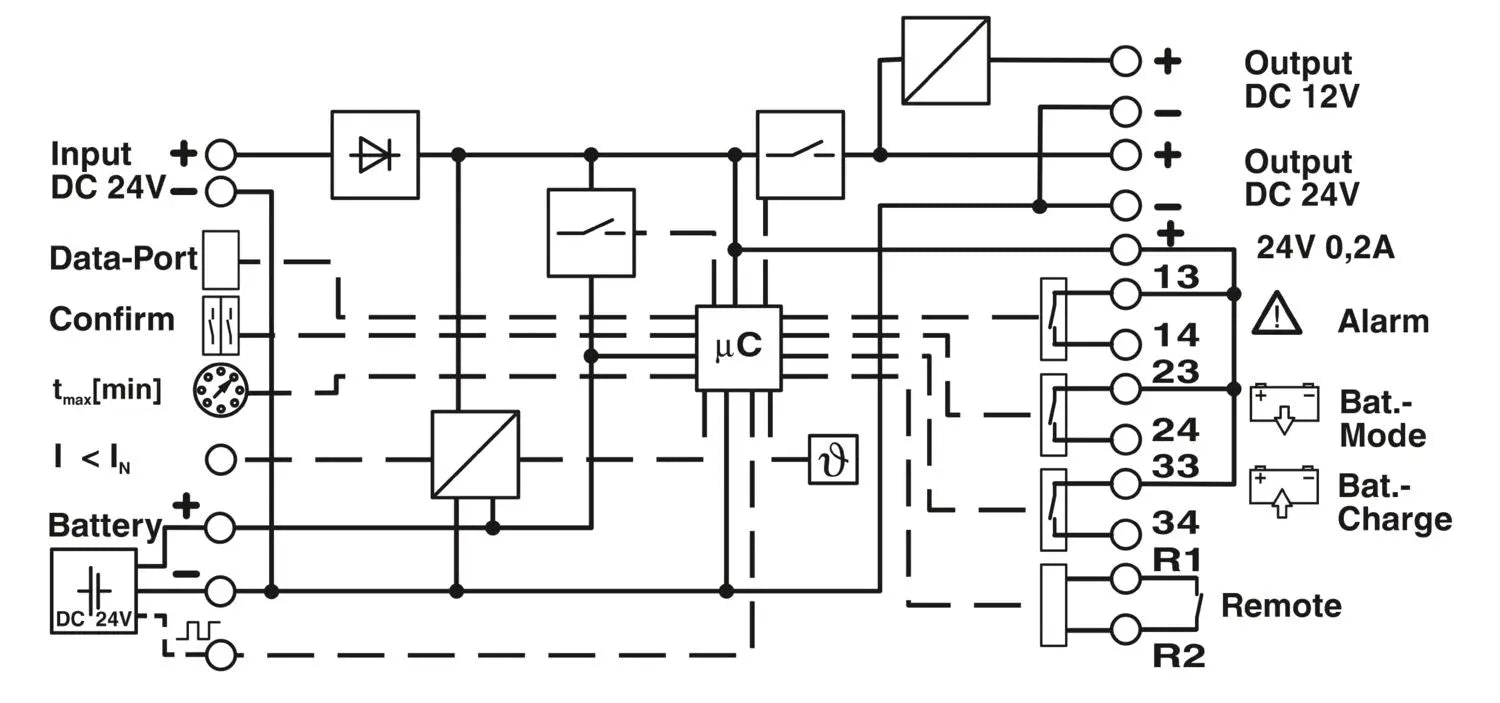

• Signal outputs: Relay contacts for alarms, modes, and boost status

• Mounting: DIN-rail with included adapter UTA 107/30

• Protections: Overload, short-circuit, selective fuse breaking (15 A boost, 65 A SFB), deep-discharge protection

• Operating conditions: –25 °C to +70 °C, IP20, robust metal housing

Ideal Applications:

• Industrial control panels, PLC/HMI systems

• Network/security infrastructure in automation

• Transportation, critical process and safety systems

• Redundancy configurations with up to two units in parallel
