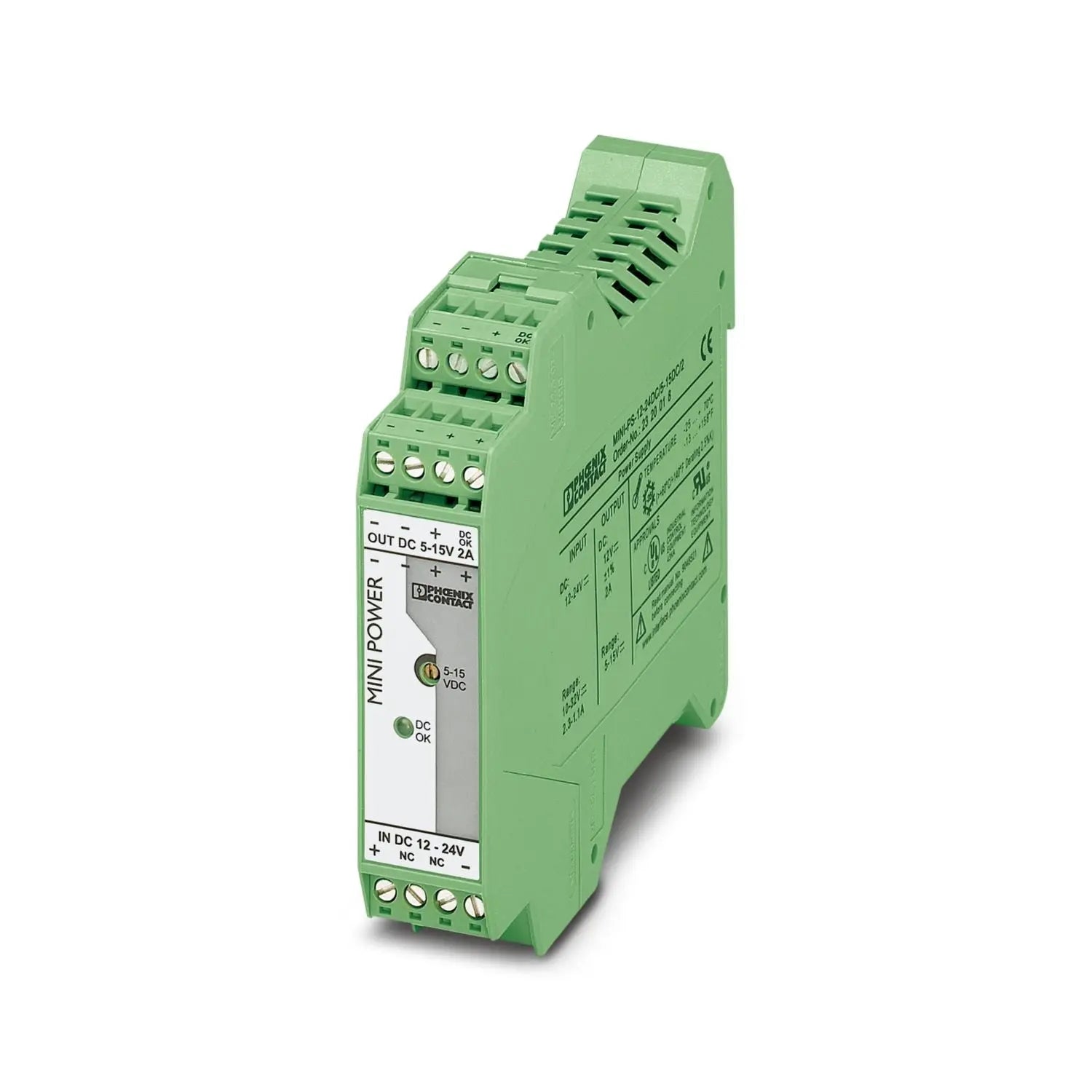

Phoenix Contact MINI-PS- 12- 24DC/ 5-15DC/2 - DC/DC converter

The Phoenix Contact MINI-PS-12-24DC/5-15DC/2 is a compact, DIN-rail mountable DC/DC converter engineered for MCR (Measurement, Control, and Regulation) technology. It enables flexible power conversion, voltage regeneration across long cables, and electrically isolated supply systems for robust and reliable performance.

Compact & Efficient Design

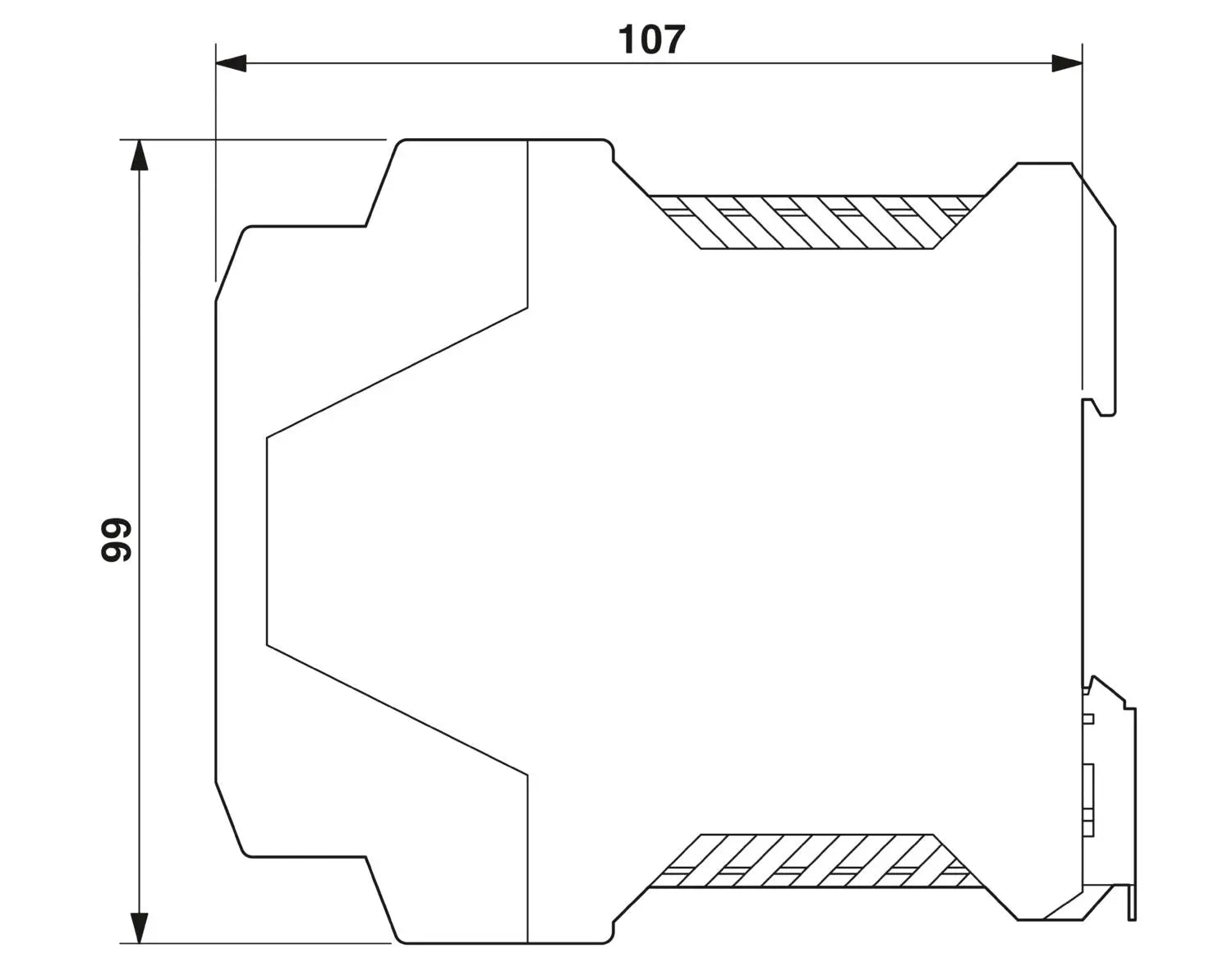

• DIN-rail form factor measuring just 22.5 mm × 99 mm × 107 mm—sleek, space-saving, and ideal for dense electrical panels.

• Lightweight, approximately 200 g (200–230 g including packaging).

• Highly efficient (> 88% at 24 V DC nominal input), minimizing heat buildup and energy waste.

Flexible Input & Output

• Supports a wide DC input range from 10 V to 32 V (with startup at > 10.5 V), compatible with both 12 V and 24 V systems.

• Output adjustable between 5 V and 15 V DC, delivering up to 2 A (24 W).

• Maintains stable voltage even with long cables, thanks to regenerative output capabilities.

Reliable & Safe

• Features input overvoltage protection, internal 6.3 A slow-blow fuse, and low inrush current (< 10 A, I²t ≈ 0.2 A²s).

• Minimal standby losses: no-load power dissipation < 1 W; max power loss under load < 4.2 W.

• Outstanding MTBF: > 2,072,000 hours at 40 °C.

• Input/output isolation tested to 1.5 kV (type test) and 1 kV (routine test) for enhanced safety.

Smart Functionality

• Offers “DC OK” LED status indication (green LED lights when U_OUT > 90 % of U_N), aiding quick diagnostics.

• Can be connected in parallel or series, enabling redundancy or increased capacity configurations.

Document: Specification Sheet
