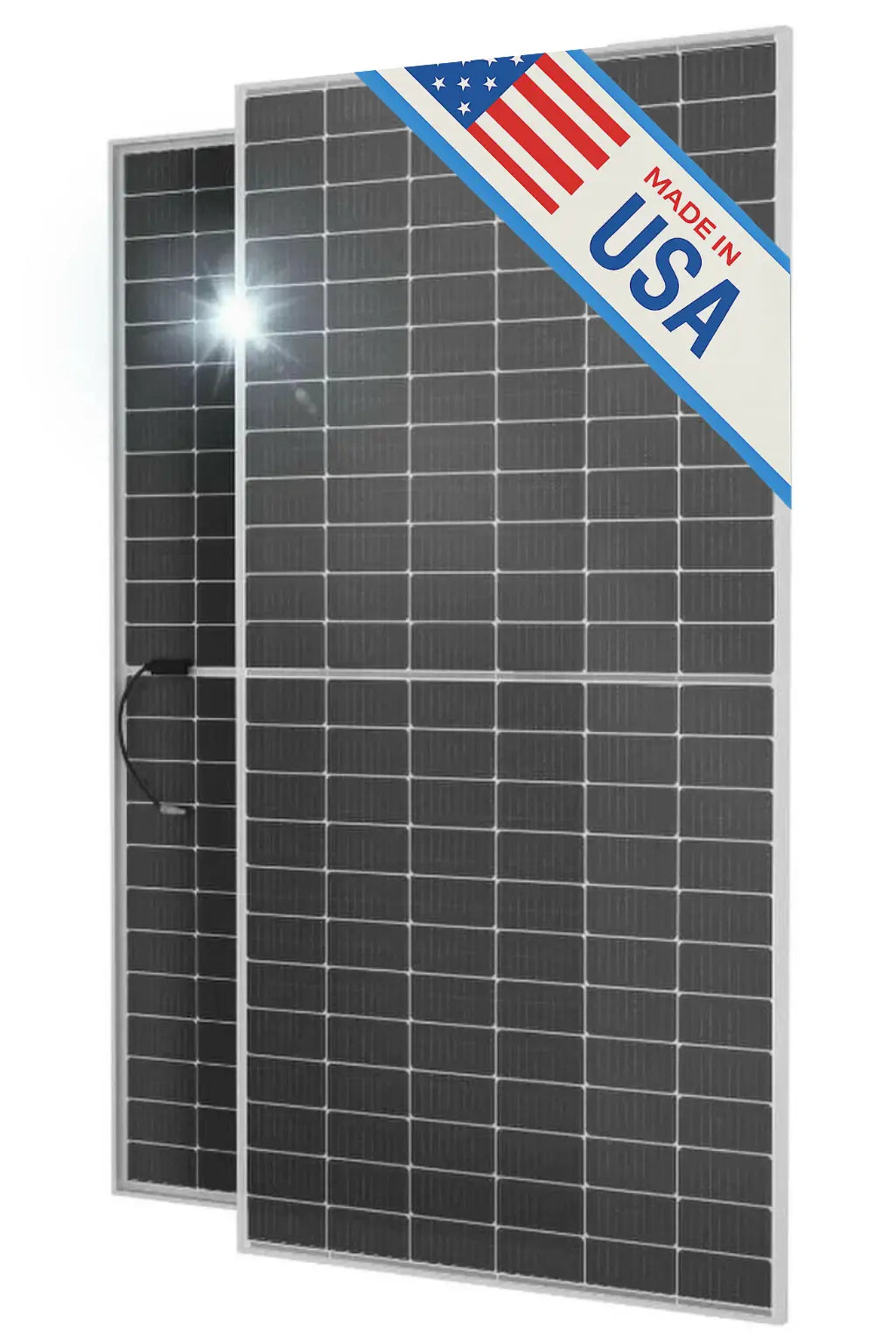

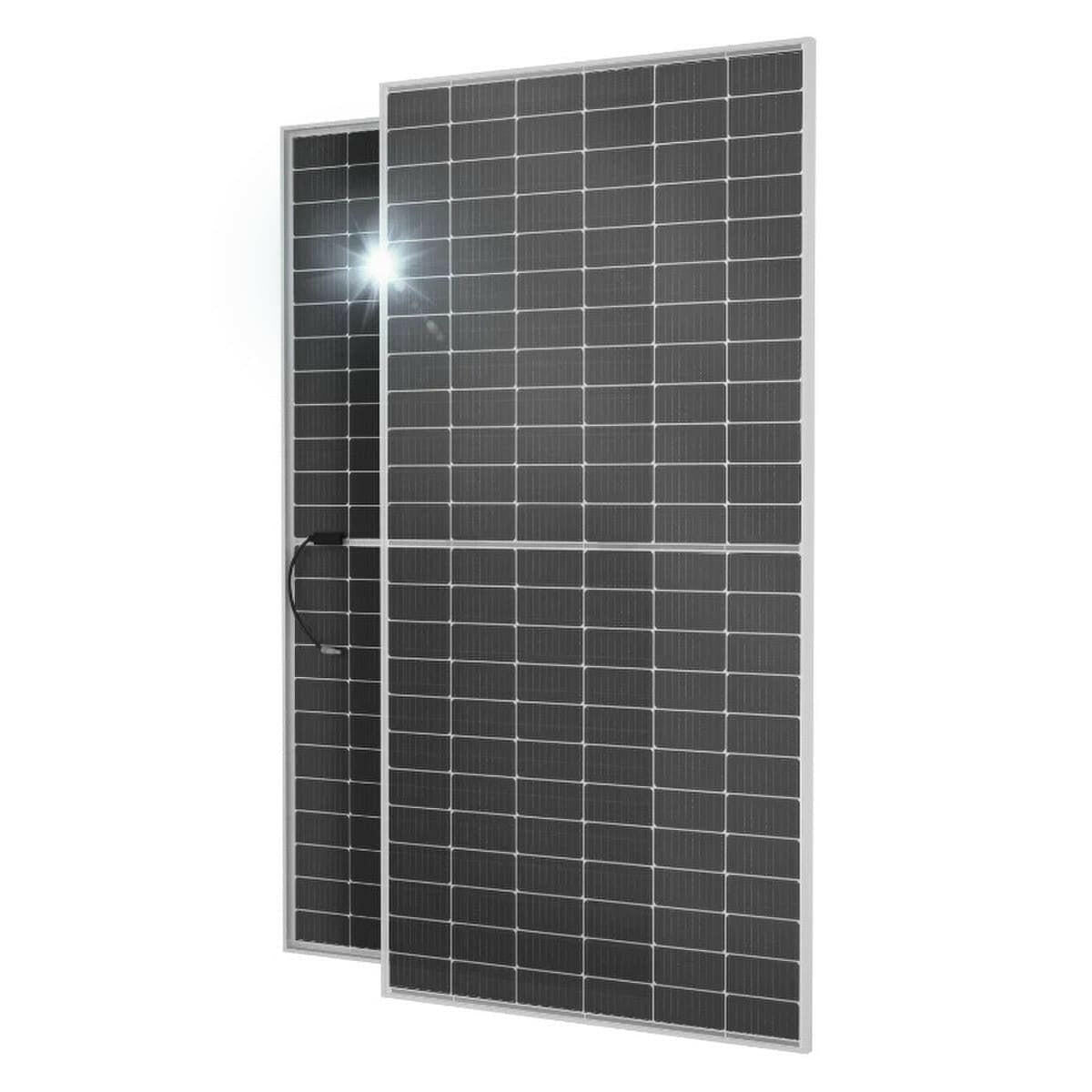

Philadelphia Solar 580W Bifacial 144-Cell Solar Panel

The Philadelphia Solar 580W Bifacial 144-Cell Solar Panel (MNB144(HCBF)-580W) is a high-performance solar module designed to deliver superior efficiency and durability for utility-scale and commercial solar projects. Featuring cutting-edge bifacial technology and an advanced 144-cell half-cut design, this panel ensures maximum energy output, even in demanding environmental conditions.

Features

• High Power Output – Rated at an impressive 580W, this panel is designed for large-scale solar energy systems, ensuring optimal power generation.
• Bifacial Technology – Generates power from both the front and rear sides, capturing additional sunlight reflected from surrounding surfaces. This increases energy yield by up to 30% in reflective environments like sand, snow, or water.
• 144 Half-Cut Cell Design – Reduces resistance losses and enhances energy conversion efficiency. The half-cell design also improves performance under partial shading conditions and increases durability.
• Durable Construction – Built with dual-layer tempered glass and a corrosion-resistant aluminum frame, the panel withstands extreme weather conditions, including heavy snow loads and high winds.
  • Certified resistance to salt mist and ammonia ensures reliability in coastal and agricultural installations.
• Advanced Temperature Performance – Excellent temperature coefficient allows the panel to maintain high efficiency even in hot climates, minimizing thermal degradation.
• Long-Term Reliability – Backed by a 12-year product warranty and a 25-year linear performance warranty, ensuring consistent energy production over its lifespan.


Specifications

• Model: MNB144(HCBF)-580W
• Rated Power: 580W
• Efficiency: ≥ 21%
• Cell Type: Monocrystalline, half-cut bifacial
• Number of Cells: 144 (12x12 layout)
• Dimensions: 2279 mm x 1134 mm x 35 mm
• Weight: Approx. 31 kg
• Glass: Dual-layer tempered glass (2.0 mm)
• Frame: Anodized aluminum alloy for durability and corrosion resistance
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1500V DC
• Junction Box: IP68-rated for superior water and dust protection
• Connectors: MC4 compatible


Benefits

• Increased energy output with bifacial technology, ideal for reflective surfaces.
• Reduced power loss and enhanced durability with half-cell design.
• High efficiency in limited spaces, ensuring better returns on investment.
• Long-term reliability supported by extensive warranties.
• Versatile application for various installation types, including ground-mounted and rooftop systems.

Applications

• Utility-Scale Solar Farms: Maximize energy production with high-power and bifacial technology.
• Commercial and Industrial Installations: Perfect for large-scale rooftops or ground-mounted systems.
• Reflective Environments: Optimized performance in deserts, snowy regions, or near water bodies.

Documents

• Specification Sheet
