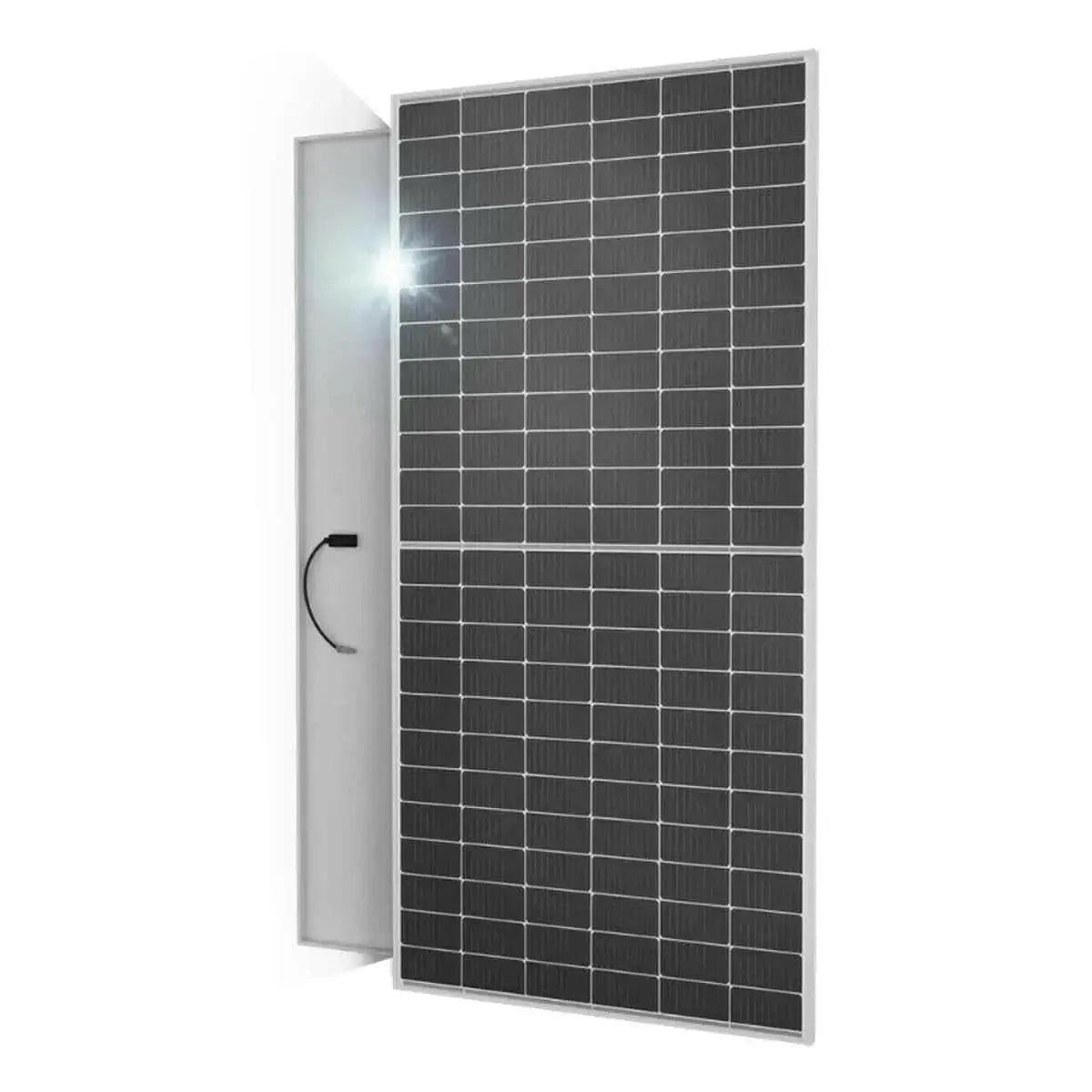

Philadelphia Solar 540W Solar Panel 144 Cell Bifacial M144(HCBF)-540W

The Philadelphia Solar 540W Phenex Bifacial Solar Panel combines advanced bifacial technology and a robust 144-cell half-cut design to deliver unparalleled energy efficiency and reliability. Designed for high-performance energy generation, this panel is ideal for utility-scale, commercial, and industrial solar installations, maximizing power output even in challenging environmental conditions.

Features

• High Power Output – Rated at 540W, the Phenex series ensures exceptional energy production, making it a top choice for large-scale solar systems.
• Bifacial Technology – Captures sunlight on both the front and rear sides of the panel, boosting energy output by up to 30% in reflective environments such as sandy areas, snow-covered regions, or water bodies.
• 144 Half-Cut Cell Design – Reduces electrical resistance, enhances durability, and improves performance under partial shading conditions. The half-cell design also ensures better temperature control and efficiency.
• Durable and Weather-Resistant – Built with high-transparency tempered glass and a corrosion-resistant aluminum frame, engineered to withstand harsh weather, including high winds and heavy snow loads.
  • Certified resistance to salt mist and ammonia makes it suitable for installations in coastal and agricultural areas.
• Superior Efficiency – High module efficiency ensures maximum power generation, even in limited space or less-than-ideal sunlight conditions.
• Long-Term Reliability – Backed by a 12-year product warranty and a 25-year linear performance warranty, ensuring consistent energy output throughout its lifespan.

Specifications

• Model: Phenex 540W
• Rated Power: 540W
• Efficiency: ≥ 20.8%
• Cell Type: Monocrystalline, half-cut bifacial
• Number of Cells: 144 (12x12 layout)
• Dimensions: 2279 mm x 1134 mm x 35 mm
• Weight: Approx. 31 kg
• Glass: Dual-layer tempered glass (2.0 mm)
• Frame: Anodized aluminum alloy for durability and corrosion resistance
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1500V DC
• Junction Box: IP68-rated for superior protection against water and dust
• Connectors: MC4 compatible

Documents

• Specification Sheet
