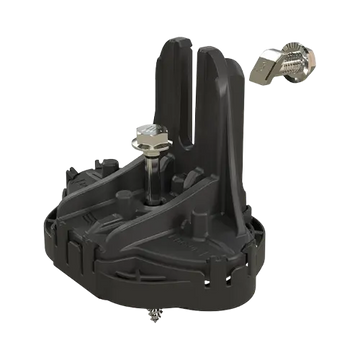

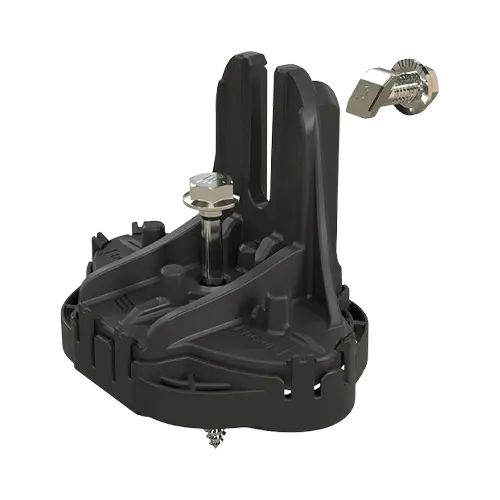

Pegasus Solar PIF-RBDT Black InstaFlash w/ Dovetail T-Bolt (Pack Of 24 Units)
Comprehensive Insight into the Pegasus Solar InstaFlash Mounting Kit
Manufacturer Part#: PIF-RBDT
The Pegasus Solar PIF-RBDT InstaFlash with Dovetail T-Bolt is engineered for reliable and weather-resistant solar panel installations. Designed to simplify mounting and roof sealing, this kit eliminates the need for caulking with its factory-installed, non-hardening sealant that completely fills any missed pilot holes, shingle rips, voids, or other potential water ingress points under the entire footprint of the 4.6" wide base.
This is an order of 24 units.
Kit Contents
- Black InstaFlash
- 5/16" x 4.0" SS Lag Screw
- Dovetail T-Bolt with Nut
Specifications
| Specification | Details |
|---|---|
| Finish | Black |
| Attachment Type | Rafter Attached |
| Roof Type | Sloped Roof: Composition Shingle, Rolled Asphalt; Flat Roof: Modified Bitumen Roof, Built-Up Roof |
| Sealant Application | Factory Installed (Non-hardening) |
| Installation Temperature | 0°F to 170°F |
| Cure Time | Instantly Waterproof; Non-hardening |
| Service Temperature | -40°F to 195°F |
| Certifications | IBC, ASCE/SEI 7-16, FL Cert of Approval FL41396, TAS100(A), UL2703 |
| Install Application | Most Railed Systems, Pegasus Tilt Leg Kit |
| Kit Quantity | 24 Units |
| Boxes per Pallet | 36 |
Key Features
- Never deal with caulking again — factory-installed, non-hardening sealant
- Sealant is compressed to fill all holes and voids upon lag installation
- Protective cage prevents sealant from getting on hands or roof
- Self-healing sealant flexes and reseals over years of thermal expansion and contraction
- Extra-large L-foot and proprietary lag screw result in larger spans between mounts
- Manufactured with advanced materials and coatings to outlast the roof itself
- Fully IBC/CBC Code Compliant — Exceeds ASCE 7-16 Standards
- UL2703 Certified
Warranty
- Structural Integrity Warranty: 25 Years
- Mechanical Warranty: 10 Years
- Product Finish Warranty: 5 Years
Warranty covers structural components free from defects in material and workmanship. Transferable to subsequent owners of the original installation site.
Documents
Durability and Design of Pegasus Solar InstaFlash Mounting Kit
The Pegasus Solar InstaFlash mounting kit is expertly crafted to provide a robust and reliable solution for solar panel installations. This kit includes 24 units of the PIF-RBDT Black InstaFlash clamps combined with dovetail T-bolts, designed for secure mounting on a variety of solar racking systems. Built from high-grade materials, the components resist corrosion and withstand harsh environmental conditions, ensuring long-lasting performance. Its sleek black finish blends seamlessly with solar panels, reflecting Pegasus Solar’s commitment to both function and aesthetics.
Ease of Installation with the Pegasus Solar InstaFlash Mounting Kit
The Pegasus Solar InstaFlash mounting kit is engineered to simplify the solar panel installation process. The modular design of the clamps and dovetail T-bolts allows for quick assembly without specialized tools, saving time and labor costs. The dovetail T-bolt securely fits into most standard solar mounting rails, providing a stable and precise alignment for solar panels. This ease of use makes it a preferred choice for contractors and installers seeking efficiency and reliability in their projects.
Versatility and Compatibility of the Pegasus Solar InstaFlash Mounting Kit
Designed with versatility in mind, the Pegasus Solar InstaFlash mounting kit is compatible with a broad range of solar racking systems. Whether it's a residential, commercial, or industrial installation, these mounting components adapt smoothly to different rail profiles and panel types. The included dovetail T-bolts ensure strong mechanical fastening and adjustability, accommodating various panel thicknesses and configurations. This adaptability makes the Pegasus Solar InstaFlash mounting kit an essential accessory for modern solar setups, providing consistent support no matter the application.
