Streamlined, Watertight Mounting for Modern Solar Installs

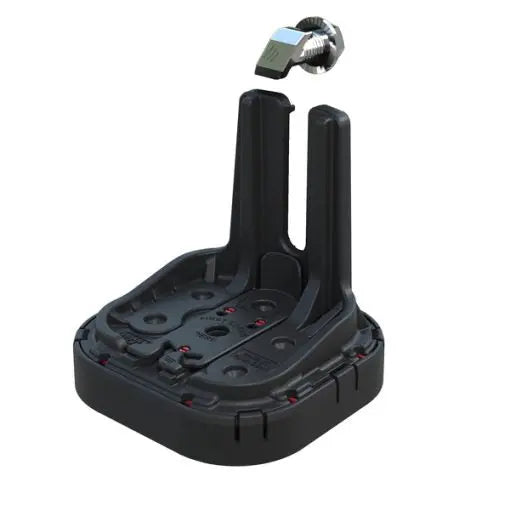

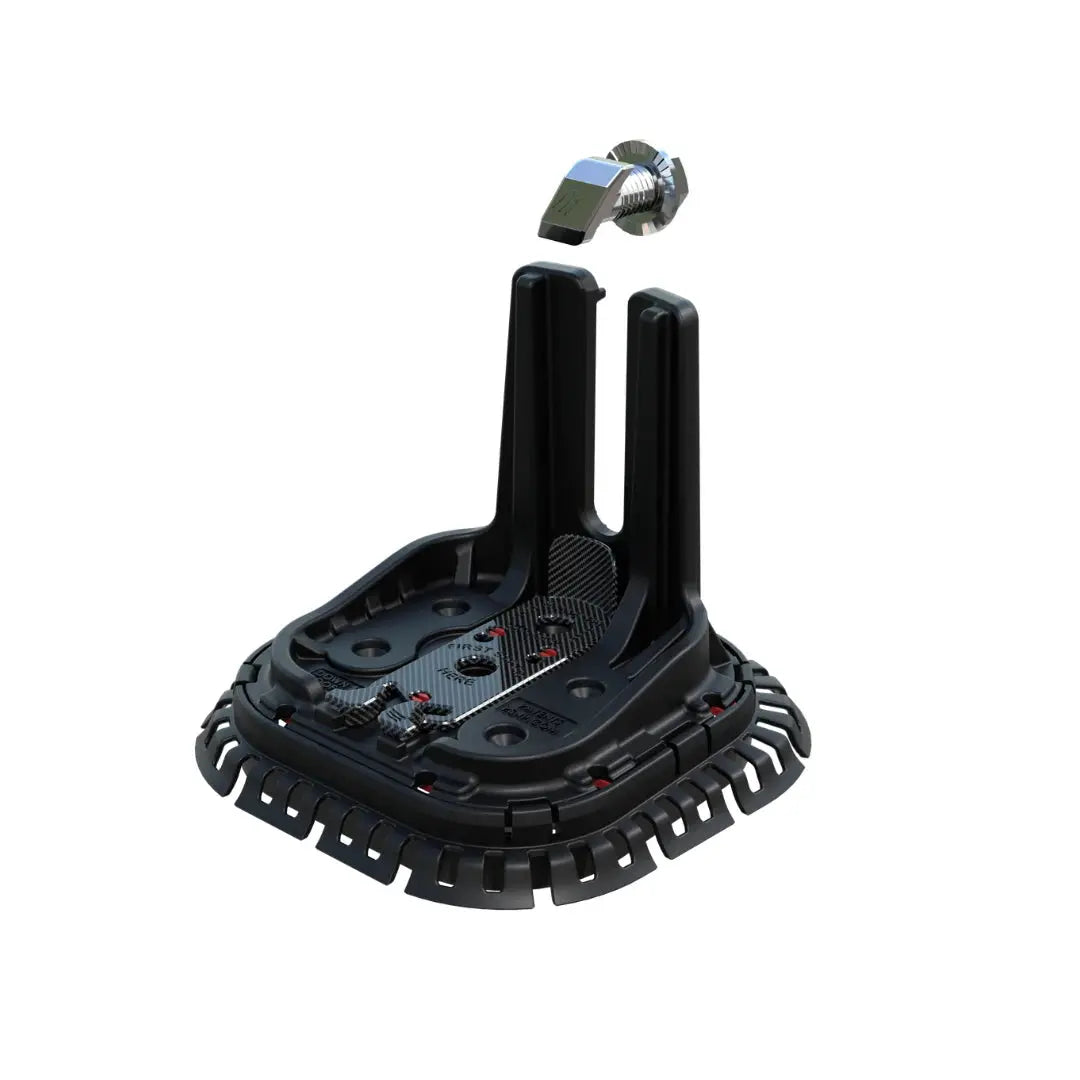

The Pegasus Solar InstaFlash2 Black Dovetail T-Bolt Kit delivers fast, watertight mounting for solar installations on composition shingle roofs. Featuring an integrated flashing, pre-installed sealant, and durable black finish, it provides long-term protection against leaks while maintaining a clean, professional appearance. Designed to perform in any environment, the InstaFlash2 installs easily in temperatures from 0° to 250°F — even in rain or sleet — and remains watertight for life. The dovetail T-bolt connection ensures secure engagement with Pegasus Rail Systems, offering quick alignment, reliable bonding, and simplified installation without the need for pilot holes or caulking.

Explore the Pegasus Solar mounting kit for fast, secure installations

• Watertight Performance: Integrated flashing and non-hardening sealant automatically fill gaps, overlays, and joints for lasting leak protection.
• All-Weather Installation: Installs in temperatures from 0° to 250°F, including rain and sleet, without compromising seal integrity.
• No Pilot Holes Needed: Pre-installed sealant and self-seating design eliminate the need for caulking or shingle removal.
• Fast Installation: Dovetail T-bolt locks securely into Pegasus Rail for quick, consistent mounting.
• Durable Construction: Made from corrosion-resistant aluminum with a sleek black finish for long-term reliability and aesthetics.
• Simplified Setup: Pre-assembled components reduce parts count, installation time, and potential errors.
• Universal Application: Compatible for rafter or deck attachment — one mount does it all.

Use Cases

Ideal for residential and light commercial composition shingle roofs where watertight integrity, installation speed, and clean aesthetics are key. Designed for seamless use with Pegasus Rail and SkipRail Systems.

Tech Specs

• SKU: 1675022 | MPN: PIF2-BDT
• Function: Roof flashing and mount with integrated dovetail T-bolt
• Material: Aluminum flashing with stainless-steel hardware
• Finish: Black powder-coated
• Compatibility: Pegasus Rail and SkipRail Systems
• Operating Temperature: 0° to 250°F
• Certifications: UL 2703 listed for bonding and grounding compliance

Note: Fasteners Sold Separately

Documentation

• Cut Sheet (Download)
• Spec Sheet (Download)

Warranty Information

Pegasus Solar provides the following limited warranties from the date of installation or 60 days after purchase (whichever is earlier):

• Mechanical Warranty (Mounting Products): 10 Years — structural components free from defects in material and workmanship.
• Structural Integrity Warranty (Flashing Products): 25 Years — structural integrity and coating of all flashing products.
• Product Finish Warranty: 5 Years — painted, powder-coated, and anodized finish free from visible peeling, cracking, or chalking.

Warranty is transferable to subsequent owners of the original installation site. For warranty claims, contact: Pegasus Solar Inc., Warranty Service Department, 506 W Ohio Avenue, Richmond, CA 94804. Full Warranty Document (PDF)

Advanced InstaFlash2 Technology for Efficient Installation

The Pegasus Solar mounting kit is designed with InstaFlash2 technology, providing installers with a quick and reliable solution for mounting solar panels. This innovative system simplifies the attachment process by reducing the number of parts and eliminating the need for additional fasteners. As a result, installation time is significantly decreased, ensuring projects finish ahead of schedule without sacrificing quality. This feature makes the Pegasus Solar mounting kit an excellent choice for both residential and commercial solar panel setups, offering convenience and durability in one package.

Durable Dovetail T-Bolt Design for Strong Connections

At the core of the Pegasus Solar mounting kit is the Dovetail T-Bolt, which ensures a secure and stable attachment between solar panels and the mounting rails. Crafted from high-quality materials, the T-Bolt withstands harsh weather conditions and maintains tight connections over the lifespan of the solar array. The dovetail shape allows for easy alignment and adjustment, making it versatile for different rail profiles and installation angles. This durability guarantees that the solar panel system remains safe, efficient, and low-maintenance for years to come.

Comprehensive KIT for Seamless Solar Panel Setup

This Pegasus Solar mounting kit arrives as a complete solution, including all necessary components to facilitate a smooth installation process. From the InstaFlash2 connectors to the Dovetail T-Bolts, every part is engineered to perfectly integrate, reducing compatibility issues and inventory requirements. Installers can rely on this kit to provide everything needed for secure mounting, minimizing downtime and improving overall workflow. The comprehensive nature of the kit supports faster deployment on various roof types, making it a trusted choice among professionals in the solar industry.
