Pegasus Solar Panel Mounting Bundle | BNDL-PE001

Comprehensive Features of the Pegasus Solar Panel Mounting Bundle

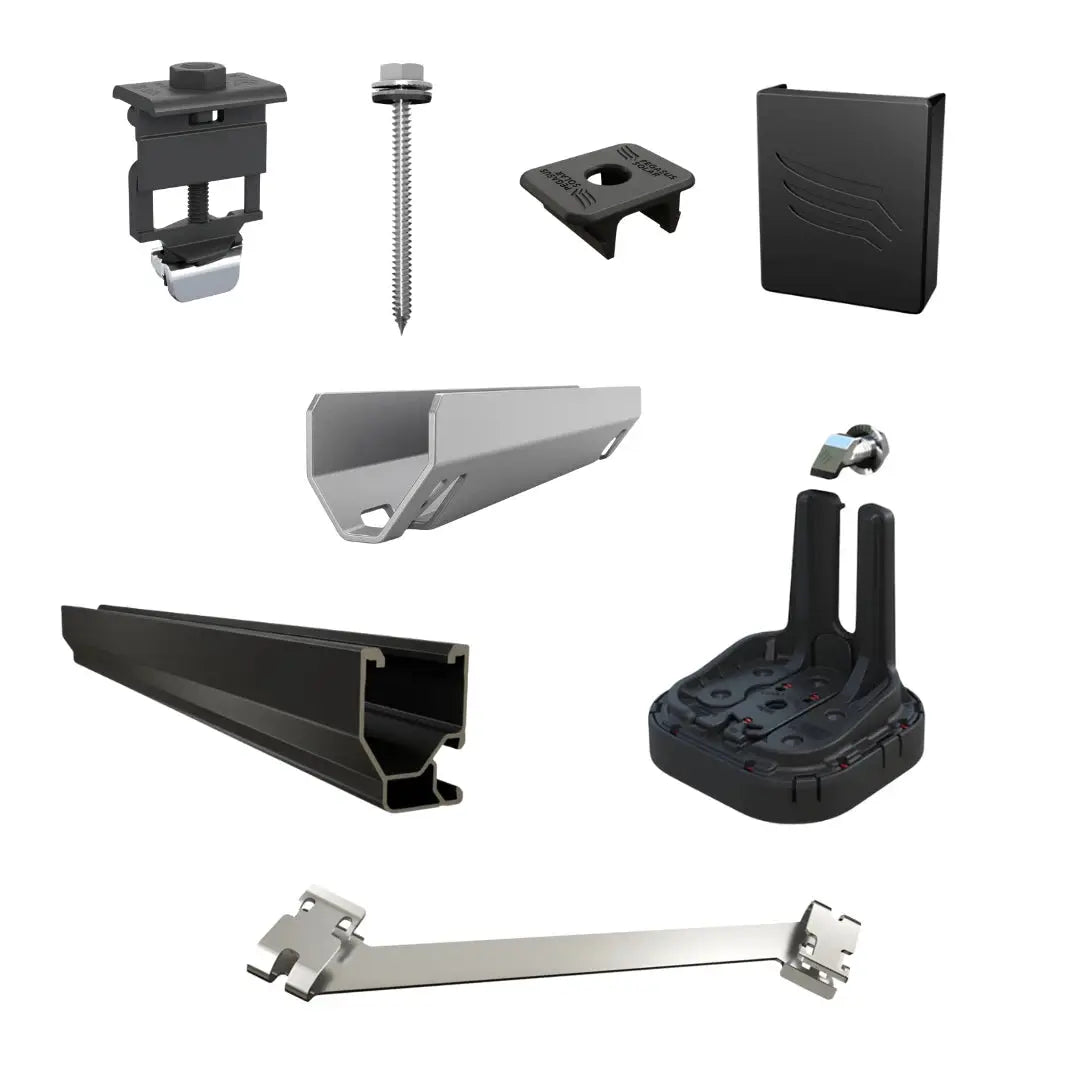

The Pegasus Roof Mounting Bundle removes the complexity from solar installations by delivering a fully pre-configured mounting solution for portrait-oriented rooftop solar arrays. Available in 5, 10, 15, and 20 panel options, each bundle includes every Pegasus mounting component required to securely and professionally install your solar panels in a portrait-orientation—no counting, no estimating, no last-minute adjustments.

Instead of spending time calculating rail lengths, clamp quantities, and hardware counts, you simply select the bundle that matches your system size and get to work. Every component is properly matched and sized for a clean, efficient portrait-oriented installation.

Engineered for durability and ease of use, Pegasus mounting hardware is built to perform in real-world rooftop conditions while delivering a streamlined, installer-friendly experience. Whether you're a seasoned professional or tackling your first solar project, this bundle lets you purchase once and install with confidence.

Key Features

• Watertight Performance: Integrated flashing and non-hardening sealant automatically fill gaps, overlays, and joints for lasting leak protection.
• Durable Construction: Made from corrosion-resistant aluminum with a sleek black finish for long-term reliability and aesthetics.
• Built-In Cable Channel: Open-channel design conceals PV wiring, MC4 connectors, and trunk cables.
• Corrosion-Resistant Finish: Black anodized coating protects against rust and wear.

Kit Contents by Size

Downloads & Documentation

• 5 Panel Diagram
• 10 Panel Diagram (Split)
• 10 Panel Diagram (Straight)
• 15 Panel Diagram
• 20 Panel Diagram
• Spec Sheet - Pegasus Rail System
• User Manual - Pegasus Rail System
• Grounding & Bonding - Pegasus Rail System
• Cut Sheet - InstaFlash2
• Spec Sheet - InstaFlash2
• Cut Sheet - Pegasus Rail 84"
• Cut Sheet - Multi-Clamp 30-40mm
• Cut Sheet - Structural Splice
• Cut Sheet - North/South Bonding Jumper

Important Notice

The quantity of components provided in this kit is calculated using a standard baseline portrait oriented configuration. Local building codes and permitting requirements may differ. We strongly recommend consulting your local Authority Having Jurisdiction (AHJ) to confirm all project-specific requirements before purchasing or installing this system.

To verify and visualize your configuration, visit the Pegasus Glide Configuration Tool.

SKU: BNDL-PE001 | Brand: Pegasus Solar | Kit Type: Roof Mounting Bundle

Durable Construction for Long-Term Use

The Pegasus solar panel mounting bundle is engineered with high-quality aluminum alloy, providing exceptional resistance to corrosion and rust. This durable construction ensures long-term stability and performance even in harsh weather conditions. Its robust design supports various panel sizes and types, making it an ideal choice for residential and commercial solar installations. Users can trust that the Pegasus solar panel mounting bundle will maintain structural integrity over time, reducing maintenance needs and enhancing overall system reliability.

Easy Installation Process

Designed with efficiency in mind, the Pegasus solar panel mounting bundle streamlines the installation process. All components come pre-engineered to fit together smoothly, allowing installers to complete setup with minimal tools and time. Clear instructions and adaptable mounting options reduce complexity and help avoid common errors during assembly. This ease of use benefits both professional installers and DIY enthusiasts, promoting faster project completion and reducing labor costs.

Versatile Compatibility and Adjustability

The Pegasus solar panel mounting bundle supports a wide range of panel dimensions and roof types. Its adjustable brackets and mounting rails provide flexibility to accommodate various angles and orientations, ensuring optimal solar exposure. This versatility makes it suitable for pitched roofs, flat surfaces, and ground installations alike. By offering customizable alignment options, the bundle helps maximize solar energy capture and improves system efficiency across diverse installation environments.
