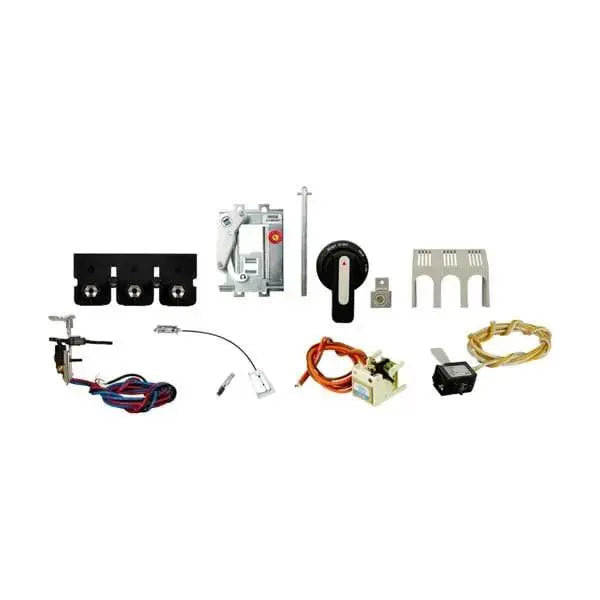

PDG6XFS04X - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

The Eaton Power Defense Molded Case Circuit Breaker Accessory Handle Mechanism is a specialized tool designed for the safe and efficient remote operation of Eaton Power Defense circuit breakers, particularly in Frame 6 applications. This accessory is essential in environments where direct access to the breaker is challenging or hazardous, such as in high or enclosed installations.

Equipped with a durable metal handle and a 4-foot flexible cable, this handle mechanism allows for precise control and operation of the circuit breaker from a distance. Its NEMA 4/4X rating ensures protection against dust, water, and corrosive elements, making it suitable for both indoor and outdoor environments.

Key Features:

• Accessory Type: Handle Mechanism
• Handle Type: Metal
• Cable Length: 4 feet
• Cable Type: Flexible shaft
• Enclosure Rating: NEMA 4/4X (dust and water-resistant, suitable for indoor and outdoor use)
• Compatibility: Designed for use with Eaton Power Defense circuit breakers, Frame 6
• Weight: Approximately 8 lbs

This handle mechanism is an essential accessory for ensuring safe and efficient operation of electrical systems in environments where direct access to breakers is challenging, offering reliable performance and protection in a variety of conditions.

Documents:

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Installation instructions
Power Defense Frame 6 flex shaft handle mech assembly instructions - IL012285EN

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
Eaton Specification Sheet - PDG6XFS04X
