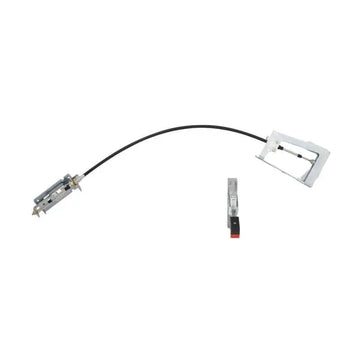

PDG4XFS04X - Eaton Power Defense Molded Case Circuit Breaker Accessory Terminal

The Eaton Power Defense Molded Case Circuit Breaker Accessory Terminal Handle Mechanism is a specialized accessory designed to facilitate the remote operation of Eaton Power Defense circuit breakers. This mechanism is particularly useful in applications where direct access to the breaker is challenging or hazardous, such as in high or enclosed installations.

Equipped with a durable metal handle and a 4-foot flexible cable, this handle mechanism allows for precise control and operation of the circuit breaker from a distance. Its NEMA 4/4X rating ensures protection against dust, water, and corrosive elements, making it suitable for both indoor and outdoor environments.

Key Features:

Accessory Type: Handle Mechanism

Handle Type: Metal

Cable Length: 4 feet

Cable Type: Flexible shaft

Enclosure Rating: NEMA 4/4X (dust and water-resistant, suitable for indoor and outdoor use)

Compatibility: Designed for use with Eaton Power Defense circuit breakers

Weight: Approximately 8 lbs

This handle mechanism is an essential accessory for ensuring safe and efficient operation of electrical systems in environments where direct access to breakers is challenging, offering reliable performance and protection in a variety of conditions.

Documents:

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Installation instructions
Power Defense Frame 4_5 flex shaft handle mech assembly instructions - IL012284EN

Specifications and datasheets
Eaton Specification Sheet - PDG4XFS04X
