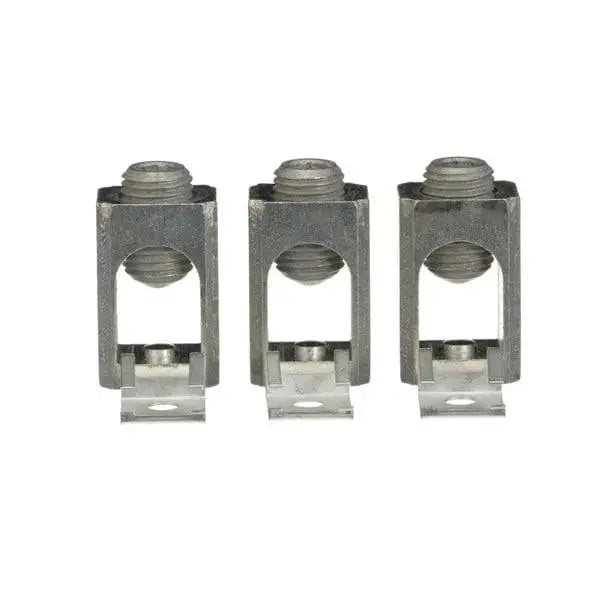

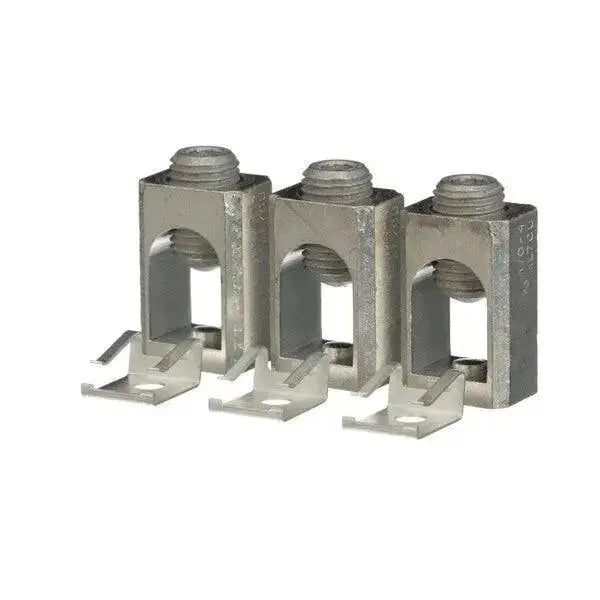

PDG2X3TA225 - Eaton Power Defense Molded Case Circuit Breaker Accessory Terminal

The Eaton Power Defense Molded Case Circuit Breaker Accessory Terminal is a robust and reliable solution designed for use with Eaton’s Power Defense series. This three-pole terminal accessory is engineered for secure and efficient connectivity in molded case circuit breakers, specifically for Frame 2 (J-K). It accommodates wire sizes ranging from AWG 4 to 4/0 and features a durable aluminum box terminal construction, ensuring long-lasting performance in demanding electrical applications. Ideal for both commercial and industrial environments, this accessory enhances the flexibility and compatibility of the Power Defense system.

Key Features:

• Accessory Type: Terminal
• Application: Molded Case Circuit Breaker Accessory
• Series Compatibility: Power Defense PD2 Global
• Poles: Three-Pole
• Wire Range: AWG 4–4/0
• Material: Aluminum
• Terminal Type: Box Terminal
• Frame Compatibility: Frame J-K (Frame 2)
• Use: For Power Defense molded case circuit breakers

The Eaton Power Defense Molded Case Circuit Breaker Accessory Terminal is an essential component for expanding and maintaining Power Defense systems, delivering dependable connectivity and performance in high-demand environments.

Documents:

Catalogs

Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Installation instructions

Power Defense Frame 2 box terminal (aluminum), 225A, 3 pole instructions - IL012235EN H03

Specifications and datasheets

Eaton Specification Sheet - PDG2X3TA225

Multimedia

Power Defense Breakers
