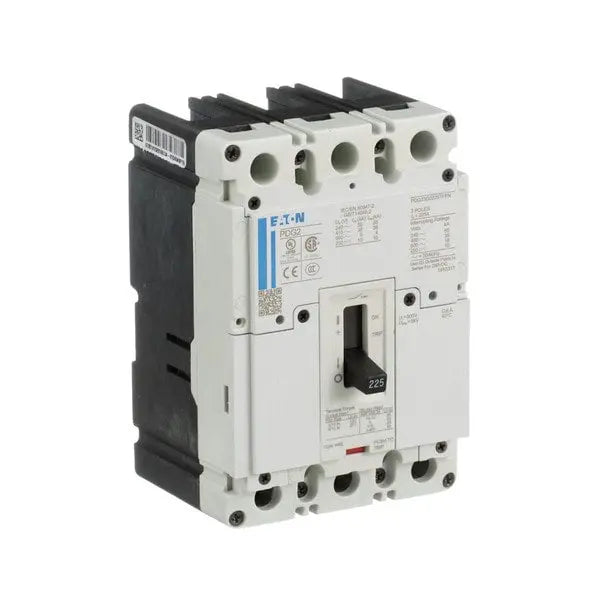

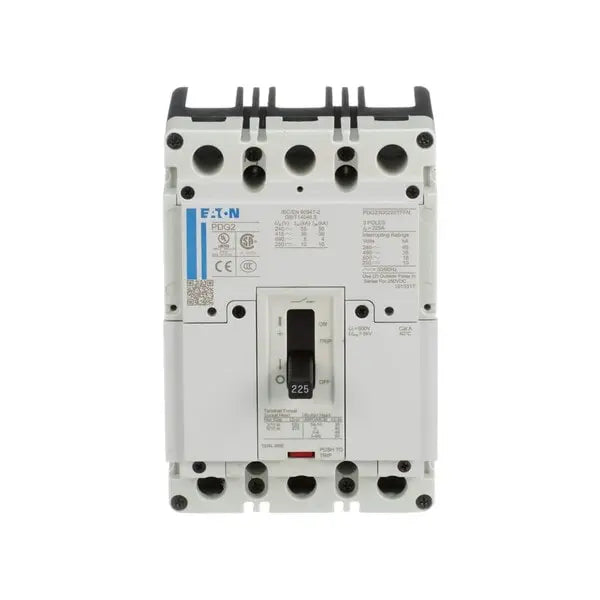

PDG23F0030TFFL - Eaton Power Defense Molded Case Circuit Breaker

The Eaton Power Defense Molded Case Circuit Breaker offers superior protection for your electrical system. With a globally rated 30A capacity, this three-pole circuit breaker is designed to provide reliable overcurrent protection in various industrial and commercial applications. The frame 2 design ensures easy installation, while the 25KA short-circuit interrupting rating guarantees robust performance even under extreme conditions. Its standard terminals and T-M (FXD-FXD) Tu configuration make it versatile for different load types.

Key Features:

• 30A current rating for efficient protection
• 25KA short-circuit interrupting rating for enhanced safety
• Globally rated for worldwide compatibility
• Three-pole design for versatile use
• Frame 2 for simple installation
• Standard terminals load only for added flexibility

This Eaton circuit breaker ensures reliable operation and safety in electrical systems.

Documents:

3D CAD drawing package
Eaton Power Defense PDG23F0030TFFL 3D drawing

Application notes
Consulting application guide - molded case circuit breakers

Brochures
Power Defense brochure
Installation videos
Power Defense Frame 2 Locking Devices and Handle Block Animated Instructions.pdf.rh

Multimedia
Power Defense Frame 2 Aux, Alarm, Shunt Trip, and UVR How-To Video
