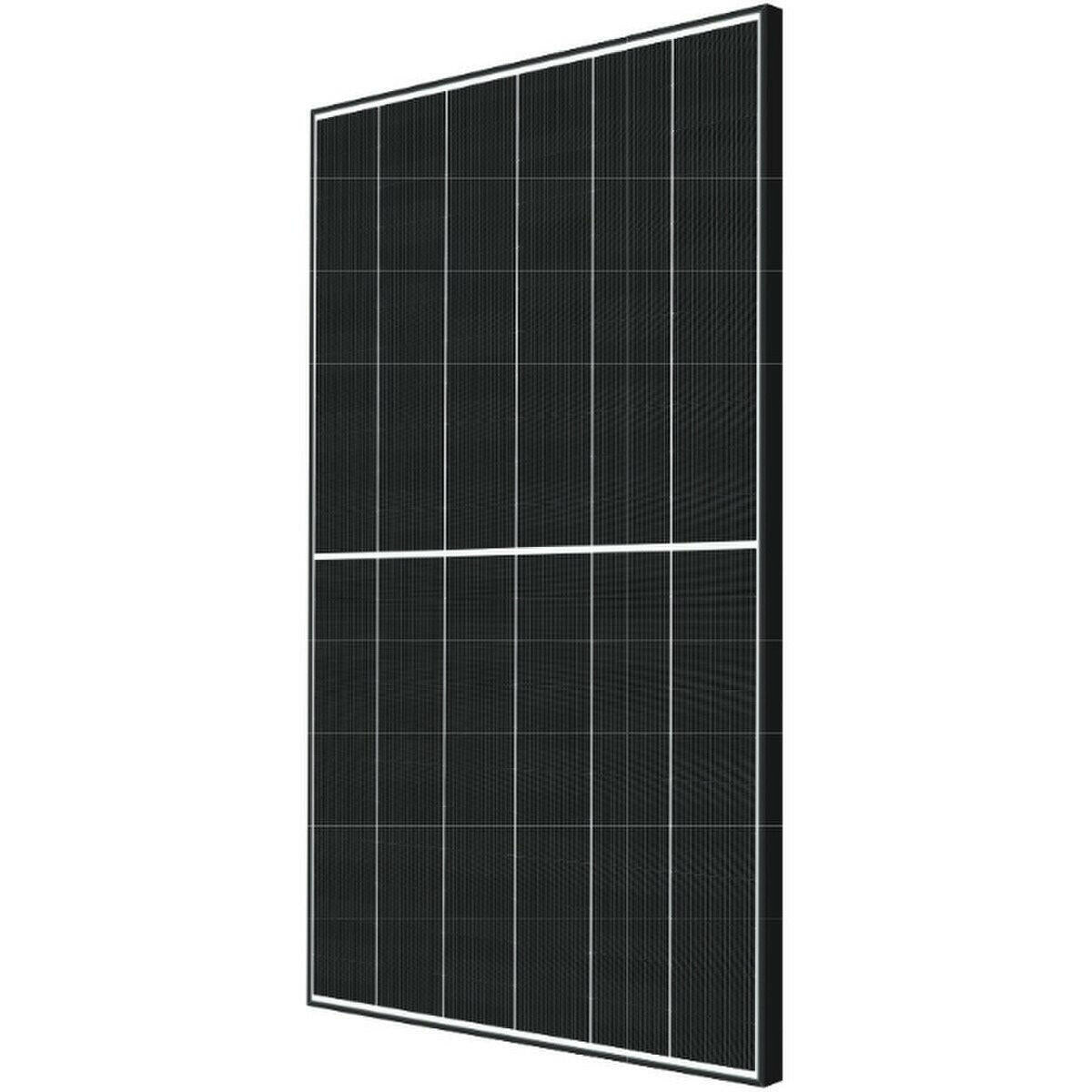

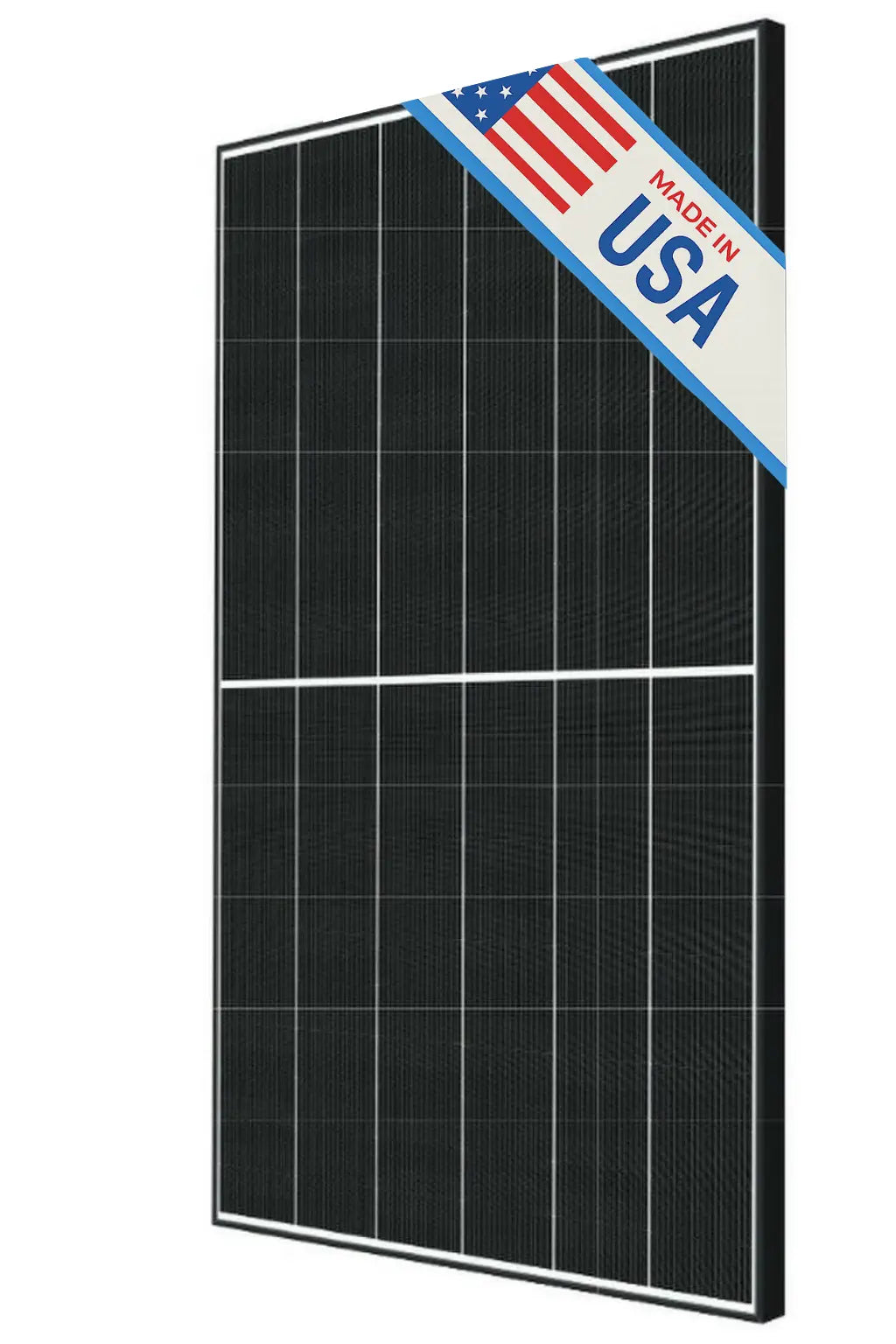

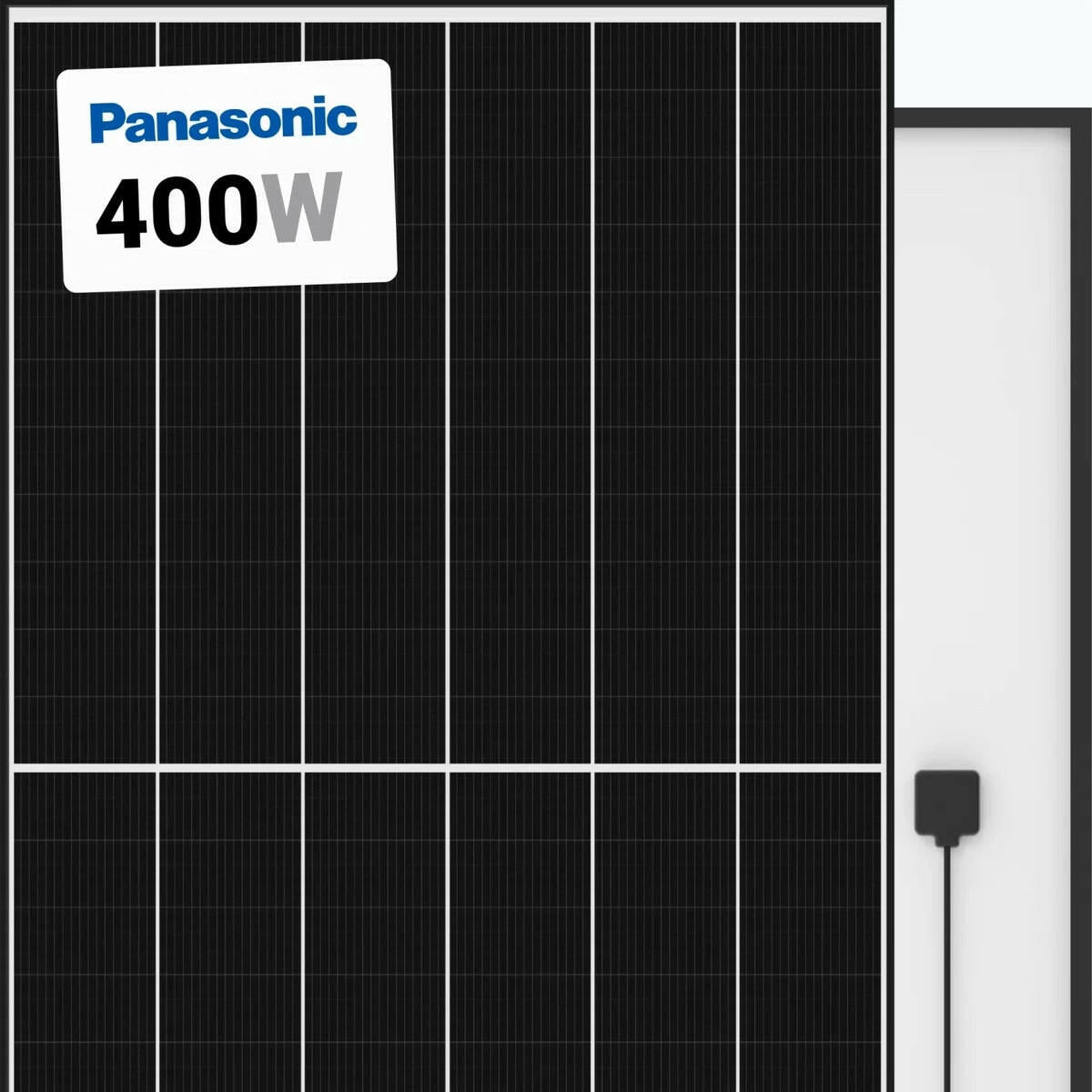

Panasonic Corporation 400 W Mono EverVolt Solar Module

Panasonic's tradition of solar excellence continues with the EVERVOLT® Series 400- and 410-watt solar modules. Fueled by industry-leading conversion efficiency and a low .25% annual degradation rate, EVERVOLT® panels produce more clean power over the long haul. Superior module efficiency and greater high-temperature performance deliver a high-output renewable energy source for residential solar systems.

Features

• High module efficiency of 21.6% and 22.2%, respectively, allows maximum power production from less roof space
• Industry-leading 0.26%/°C temperature coefficient produces higher output at high temperatures
• Half-cut cells with heterojunction technology maximizes sunlight conversion and energy yield
• 25-year warranty covers product, performance and labor for lasting value*
• Durability and quality backed by more than 45 years of solar innovation, experience and rigorous testing

Specifications

• Cell Type: Mono
• Number of Cells: 132
• Voltage Rating: 1000 V
• Amperage Rating: 93.51 A
• Power Rating: 400 W
• Dimensions: 71.7 in (L) x 40 in (W) x 1.2 in (D)
• Efficiency: 21.6%
• Connection Type: MC4
• Cable Length: 4 sq-mm
• Operating Temperature: -40 to 185 deg F
• Open Circuit Voltage: 48.8 V
• Short Circuit Current: 10.25 A
• Fuse Amperage Rating: 25 A

Documents

• Specification Sheet
