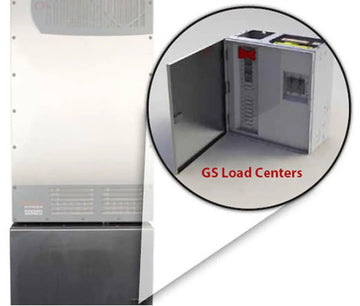

Outback Radian GSLC175-AC-120/240 Prewired AC Coupling GS Load Center

OutBack Power's GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass. Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-AC-120/240 can be used with AC-coupling applications in grid-tied systems. The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

Features

• Improved Load - Pre-wired or customized options for quick and easy installation
• Dual AC inputs and DC connections


Specifications

• Type: Radian Prewired AC Coupling

• Maximum Input Voltage: 600 V

• Maximum Input Current: 500 A

• Operating Frequency: 50/60 Hz to DC

• Enclosure Rating: Indoor Type 1 (IP30)

• Includes:

  • (2) 175A Breakers
  • 2-pole 50A ROCB & Relay Board
  • 2-pole 120/240 VAC 50 A Bypass Breakers
  • Dual 2-pole 120/240 VAC 50 A Input Breakers
  • 10 Busbars

• Standards: UL 1741, CSA 22.2, No. 107.1-01, RoHS Compliant

• Warranty: Standard 5 Years


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
