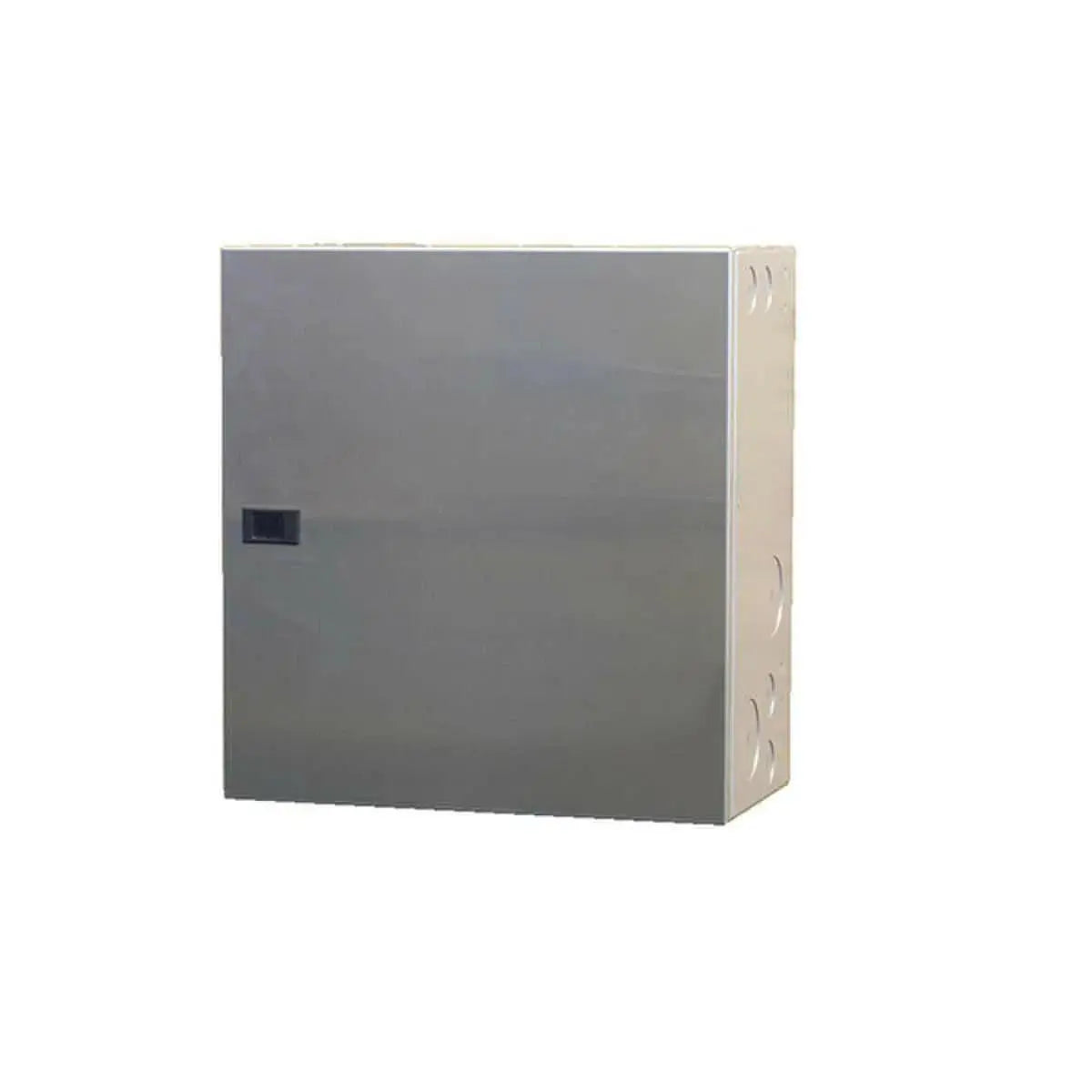

OutBack Radian GSLC Load Center Box

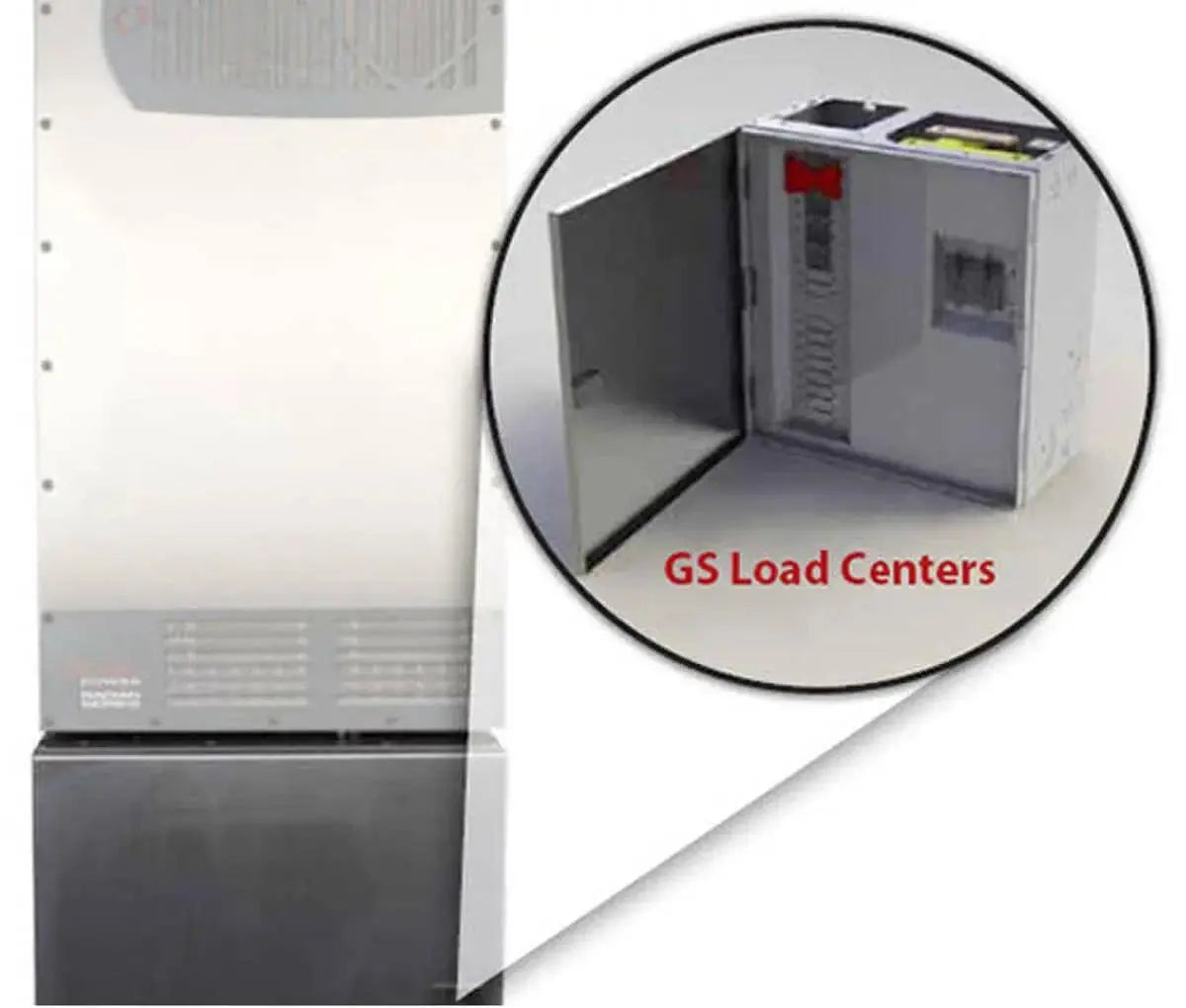

OutBack Power's GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass. Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-AC-120/240 can be used with AC-coupling applications in grid-tied systems. The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

Features

• Improved Load - Pre-wired or customized options for quick and easy installation
• Dual AC inputs and DC connections


Specifications

• Type: Radian
• Maximum Input Voltage: 600 V
• Maximum Input Current: 500 A
• Operating Frequency: 50/60 Hz to DC
• Enclosure Rating: Indoor Type 1 (IP30)
• Includes: 500 A Shunt & 4 Busbars, GSLC
• Standards: UL 1741, CSA 22.2, No. 107.1-01, RoHS Compliant
• Warranty: Standard 5 Years


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
