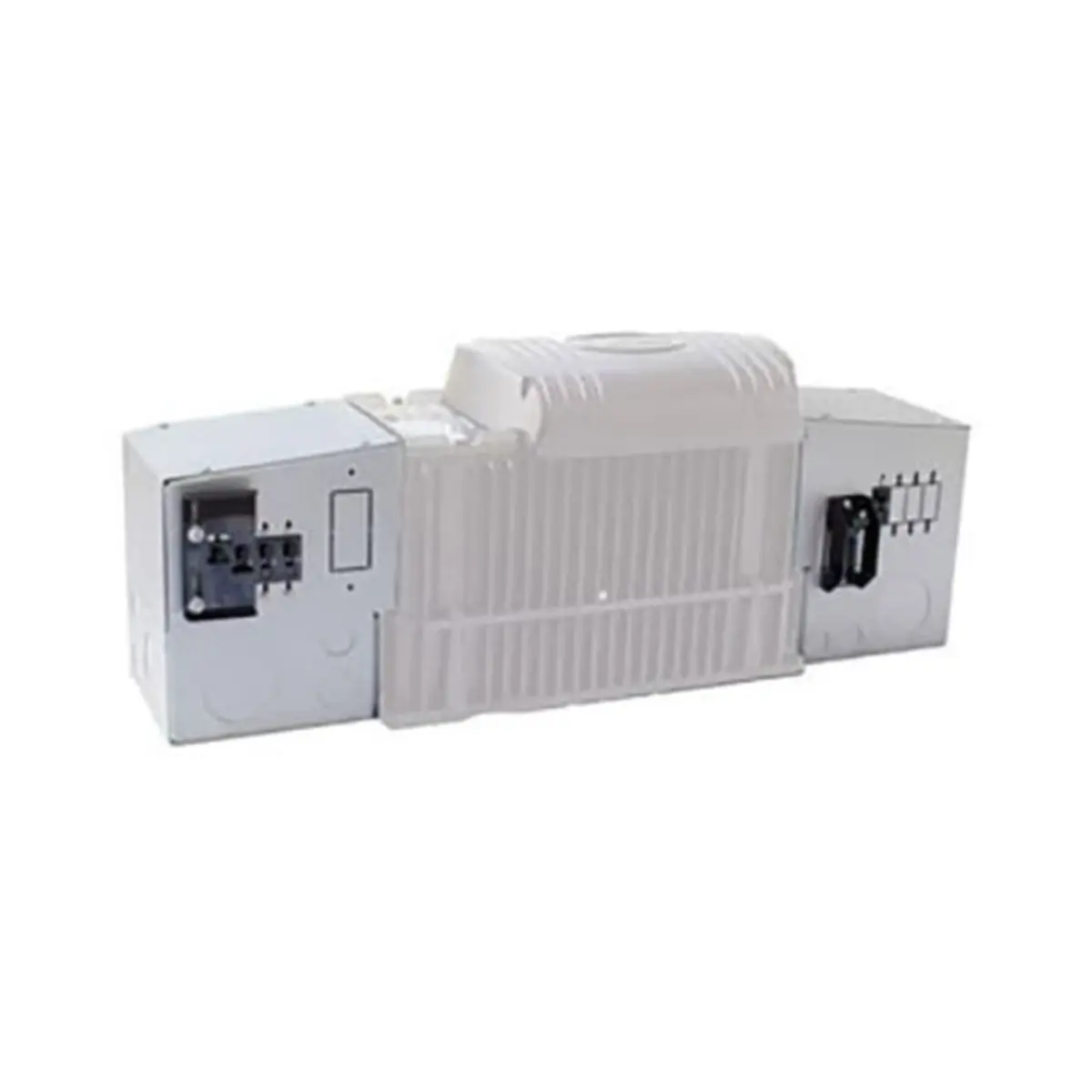

Outback Power FW 250 DC and/or AC breaker enclosure (SKU Part Number FW250)

The FLEXware 250 accommodates all of the essential protective devices in the smallest possible space at the lowest installed cost. Utilizing an extremely compact design and unique mounting features, one or two FLEXware 250 enclosures can be mounted on each end of a single FX Series Inverter/Charger. The FLEXware 250 enclosure is constructed of powder-coated aluminum and has been ETL listed. It provides breaker spaces for battery, PV array or PV GFP breakers and mounting locations for AC GFCI outlet, AC breakers and an Input-Output-Bypass Assembly. In keeping with the philosophy of FLEXware, the FLEXware 250's flexibility is evident in the generous number of knock-outs allowing the installation of conduit, cable glands, and other installation accessories.

Features

• Accommodates all of the essential protective devices in the smallest possible space
• Extremely compact design and unique mounting features

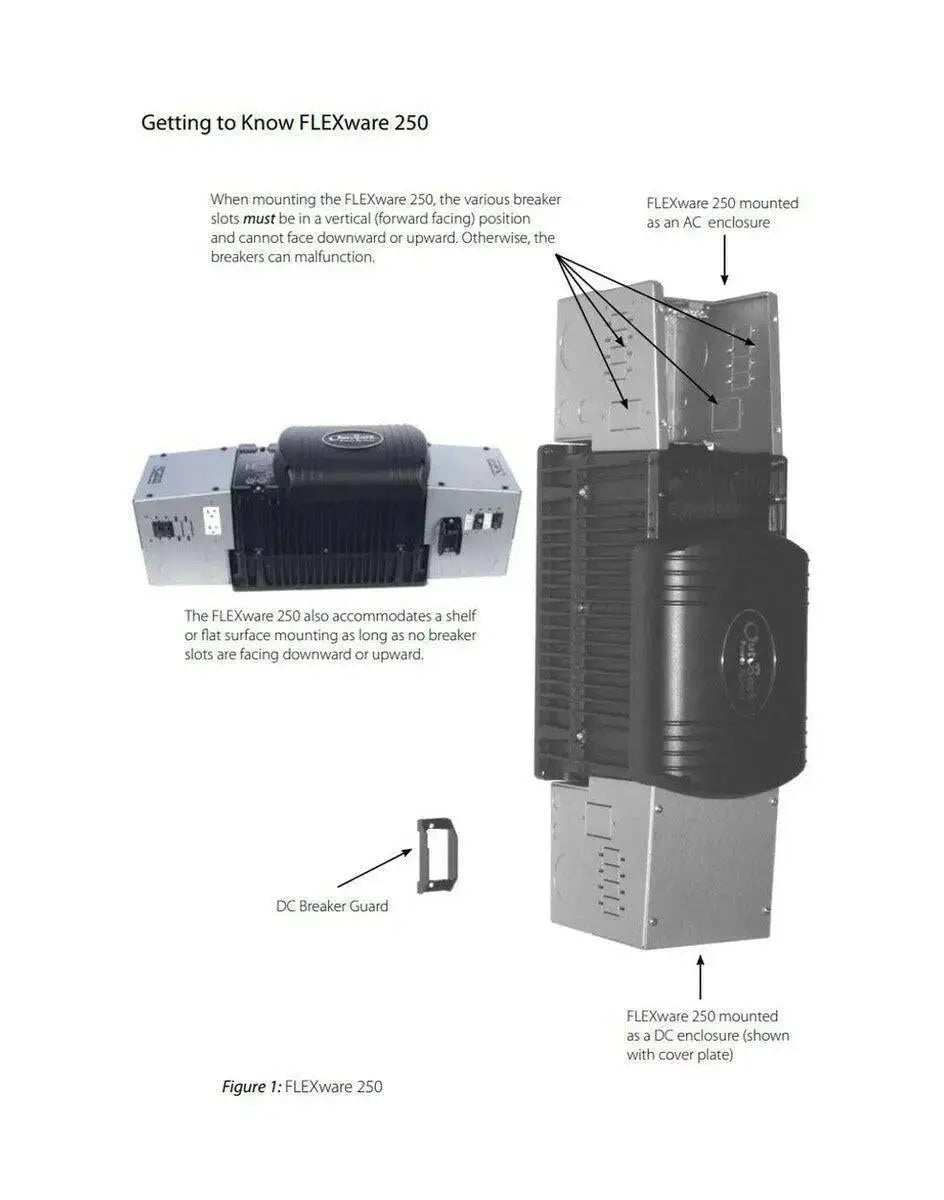

• Mount capabilities on each end of a single FX Series Inverter/Charger
• Constructed of powder-coated aluminum; ETL listed

Specifications

• Enclosure Material: Aluminum
• Protection: Type 1 (Indoor) (IP30)
• Dimensions: 7.5 in (H) x 6.5 in (W) x 8.6 in (D)
• Includes: Ground Bus Bar, DC Breaker Handle Guard, Breaker Mounting Hardware & Enclosure Mounting Hardware
• Suitable For Use With: One FX Series Inverter/Charger
• Standards: ETL Listed
• Application: Modest Power Requirements Such as Cabins, Chalets, Homes, Remote Communication Sites, and Backup Power Systems

Documents

• User Guide
• Specification Sheet
