Outback Power Combiner Bus Bar with Dual #2/0 AWG Output Lugs (SKU Part Number FW-CBUS-12)
Product description
Shipping & Return

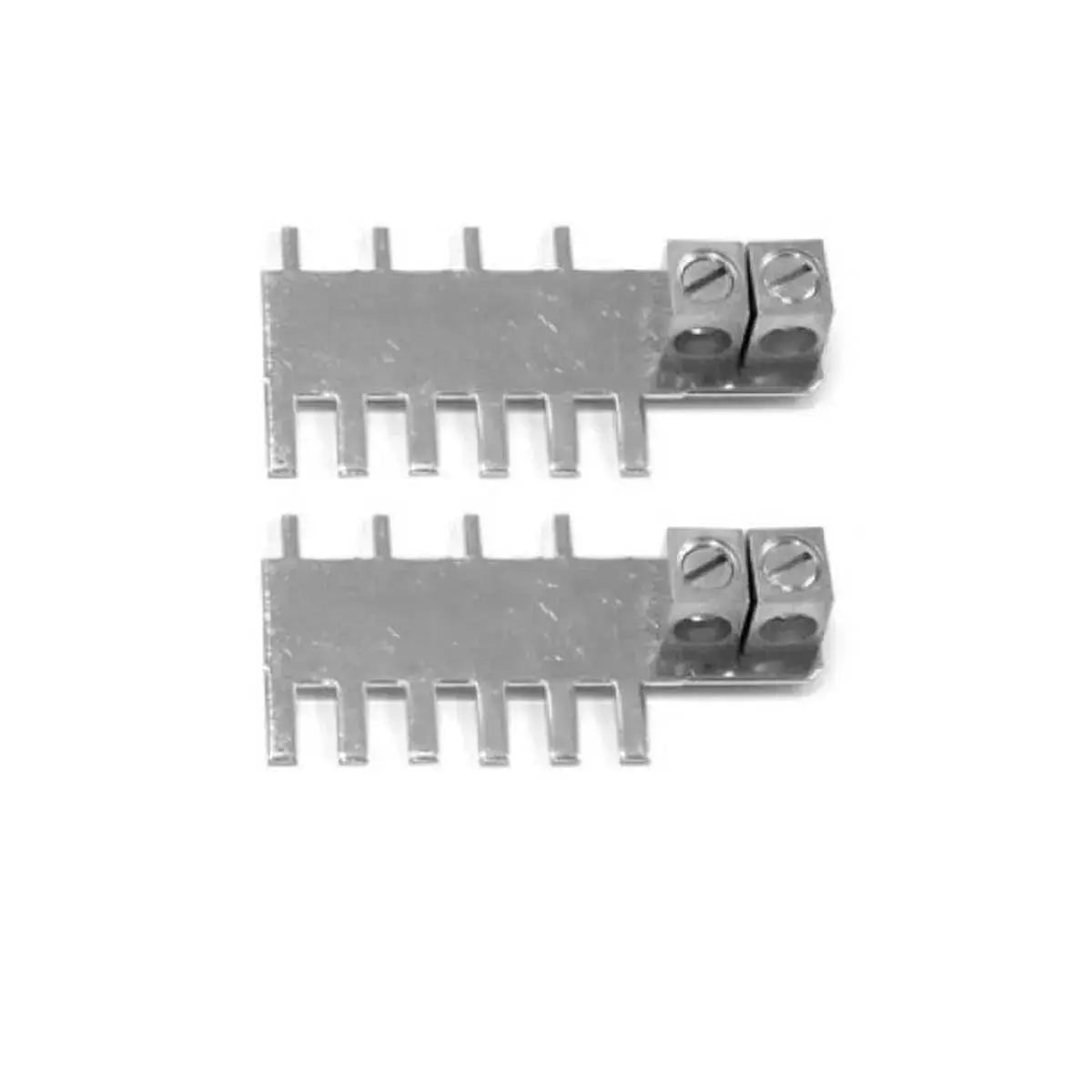

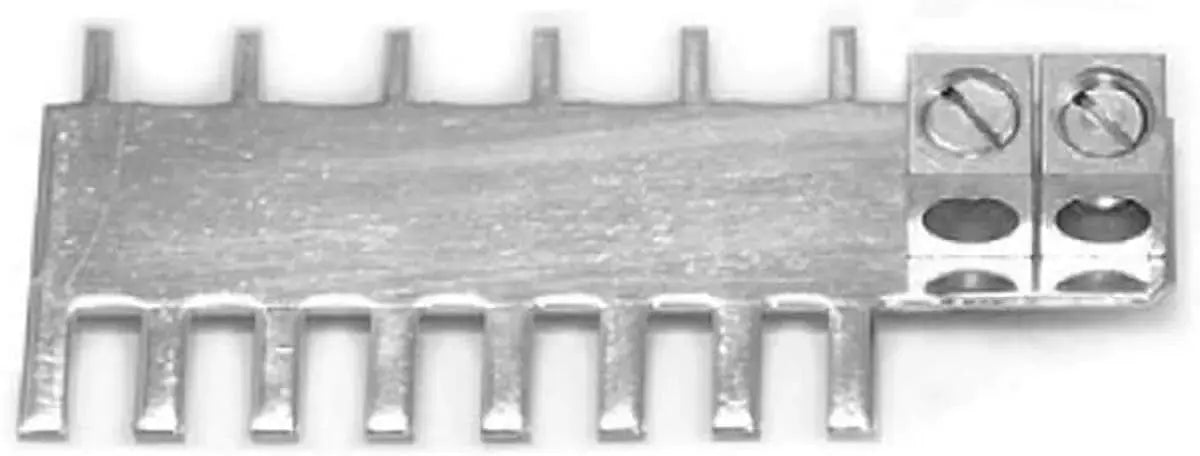

Outback FW-CBUS-12 reversible combiner bus bar for up to twelve 150 VDC rated breakers, or up to eight 600 VDC rated fuse holders, with dual #2/0 AWG output lug terminals.
Features
- Combiner Bus connects up to eight DIN mounted breakers or four DIN mounted fuse holders - includes one 1/0 set screw lug - plated copper rated for 200 A
- FLEXware DC bus connectors make code compliant DC connections easier
- Have high connectivity for minimum loss
- Combiner Bus connects up to eight DIN mounted breakers or four DIN mounted fuse holders - includes one 1/0 set screw lug - plated copper rated for 200 A
- Safety - Designed to enable the most complex of code compliant DC cable connections
- Efficiency - Includes one 1/0 set screw lug - plated copper rated for 200 A
-
User Friendly - Connects up to eight DIN mounted breakers or four DIN mounted fuse holders
Specifications
- Dimensions: 4 in x 4.5 in x 4.25 in
- Rated Current Rating: 200 A
- Includes: (2) 2/0 AWG Output Lug Terminals
- Suitable For Use With: (12) 150 VDC Rated Breakers or Up to (8) 600 VDC Rated Fuse Holders
- Material: Plated Copper
- Standards: ETL Listed
-
Weight: 0.56 lb
