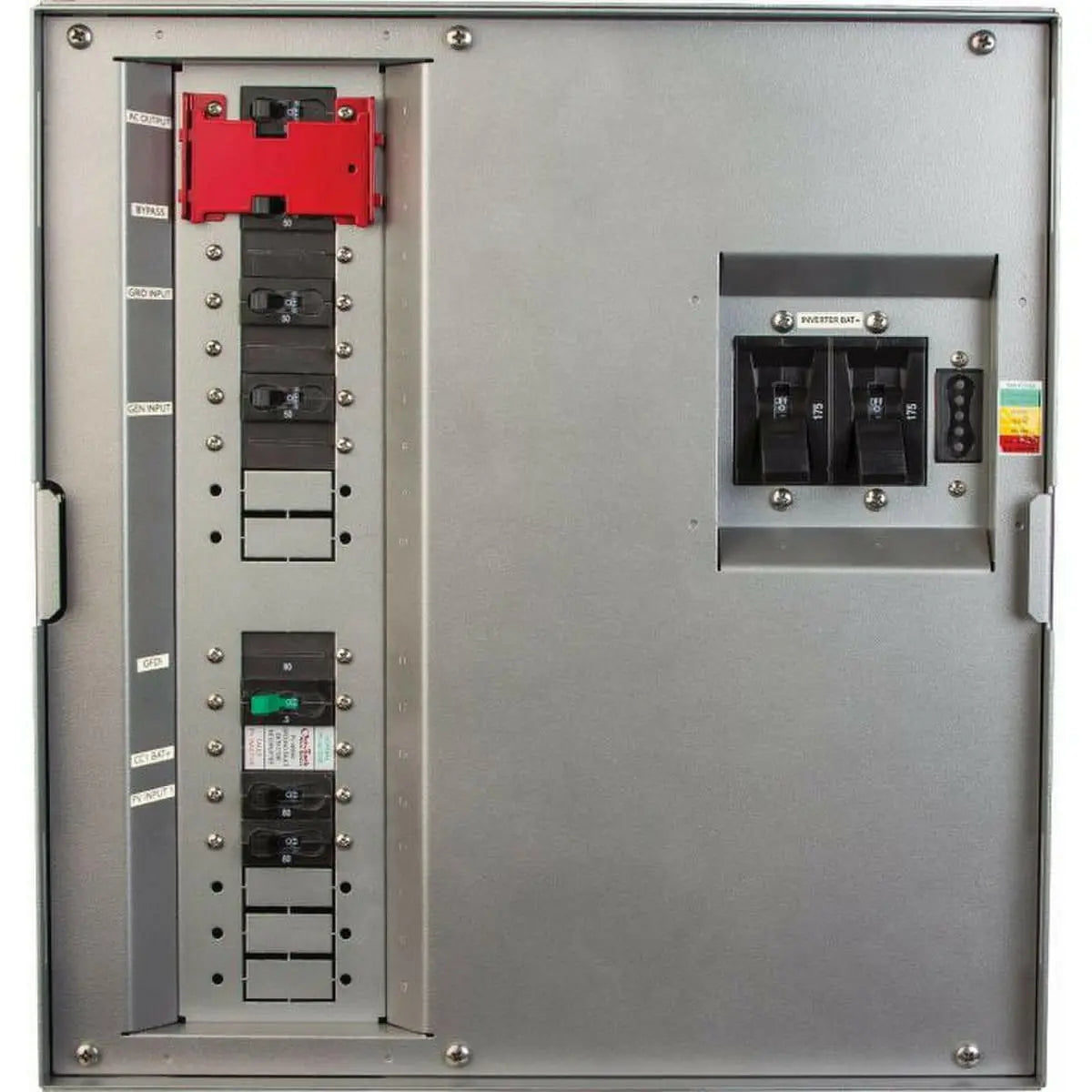

Outback GS Load Center for Radian Inverter/Chargers (SKU Part Number GSLC)

OutBack Power's GS Load Centers are an integrated connection enclosure series for AC and DC system connections in OutBack Radian Series inverter/charger applications, through provided inverter DC overcurrent protection and disconnects, dual AC inputs, grid-tie inverter connection and 120/240VAC or 230V maintenance bypass. Designed for use with the Radian Series inverter/charger family, the options offer solutions for ground-up custom designs or factory pre-wired configurations for specific applications. The GSLC175-AC-120/240 can be used with AC-coupling applications in grid-tied systems. The OutBack GS Load Centers simplify the configuration, distribution, and implementation of energy storage of the Radian Series inverter/charger through a standardized approach.

Features

• Pre-wired or customized options for quick and easy installation
• Dual AC inputs and DC connections
• 120/240VAC and 230VAC designs
• UL 1741 end-to-end
• Greater dynamic stability
• Dual AC inputs
• Fully integrated from industry leading brand

Specifications

• Dimensions: 17 in x 16 in x 8.5 in
• Maximum Input Voltage: 600 V
• Maximum Input Current: 500 A
• Operating Frequency: 50/60 Hz
• Enclosure Rating: Indoor Type 1 (IP30)
• Enclosed with Hinged Door: Yes
• Suitable For Use With: Radian Inverter/Chargers GS8048A-01, GS4048A-01, GS7035E, GS3548E
• Standards: UL 1741, CSA 22.2, No. 107.1-16, RoHS
• Warranty: 5 Years

Documents

• Specification Sheet 1
• Quick Start Guide
• Warranty Information
• Specification Sheet 2
