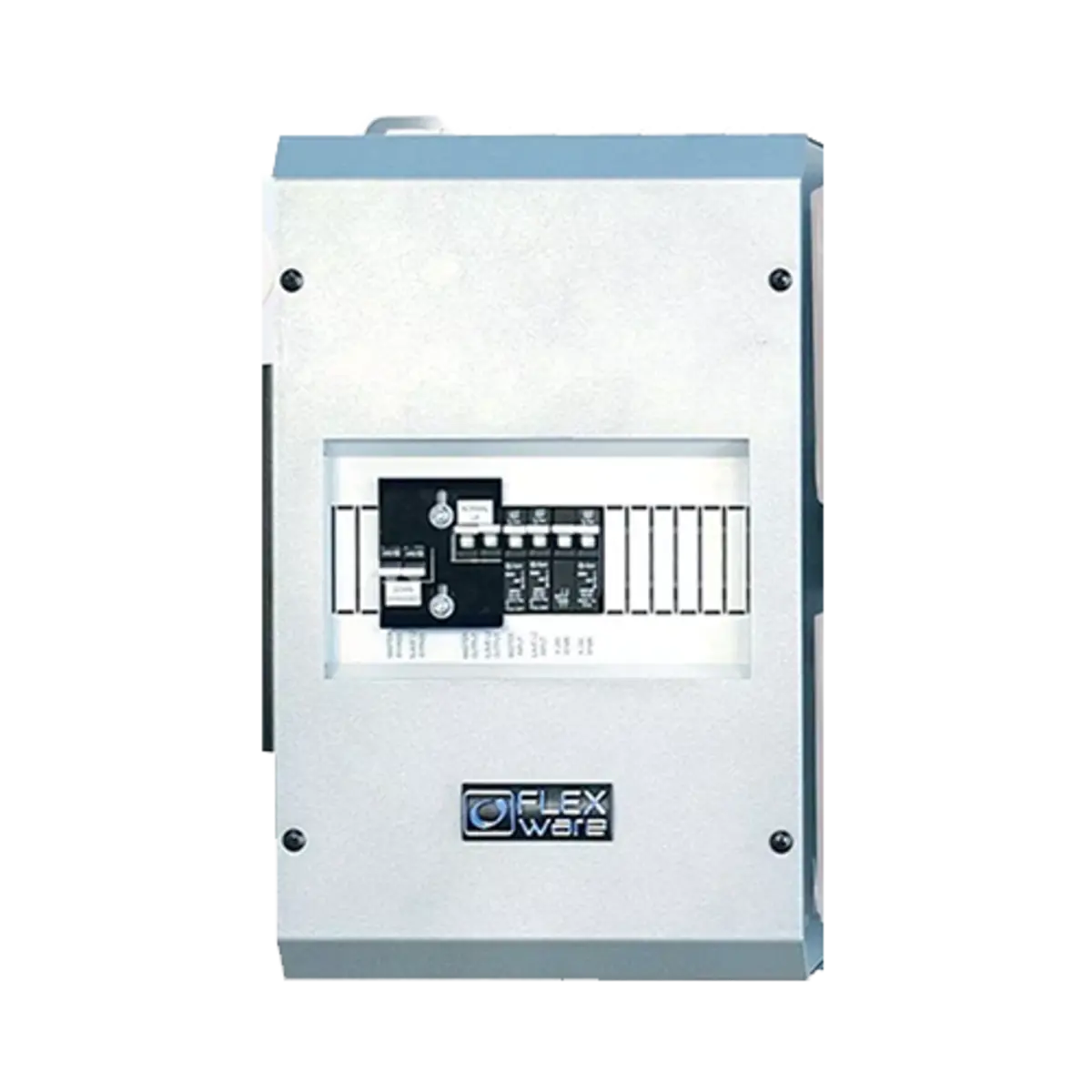

Outback FW500-AC AC breaker enclosure

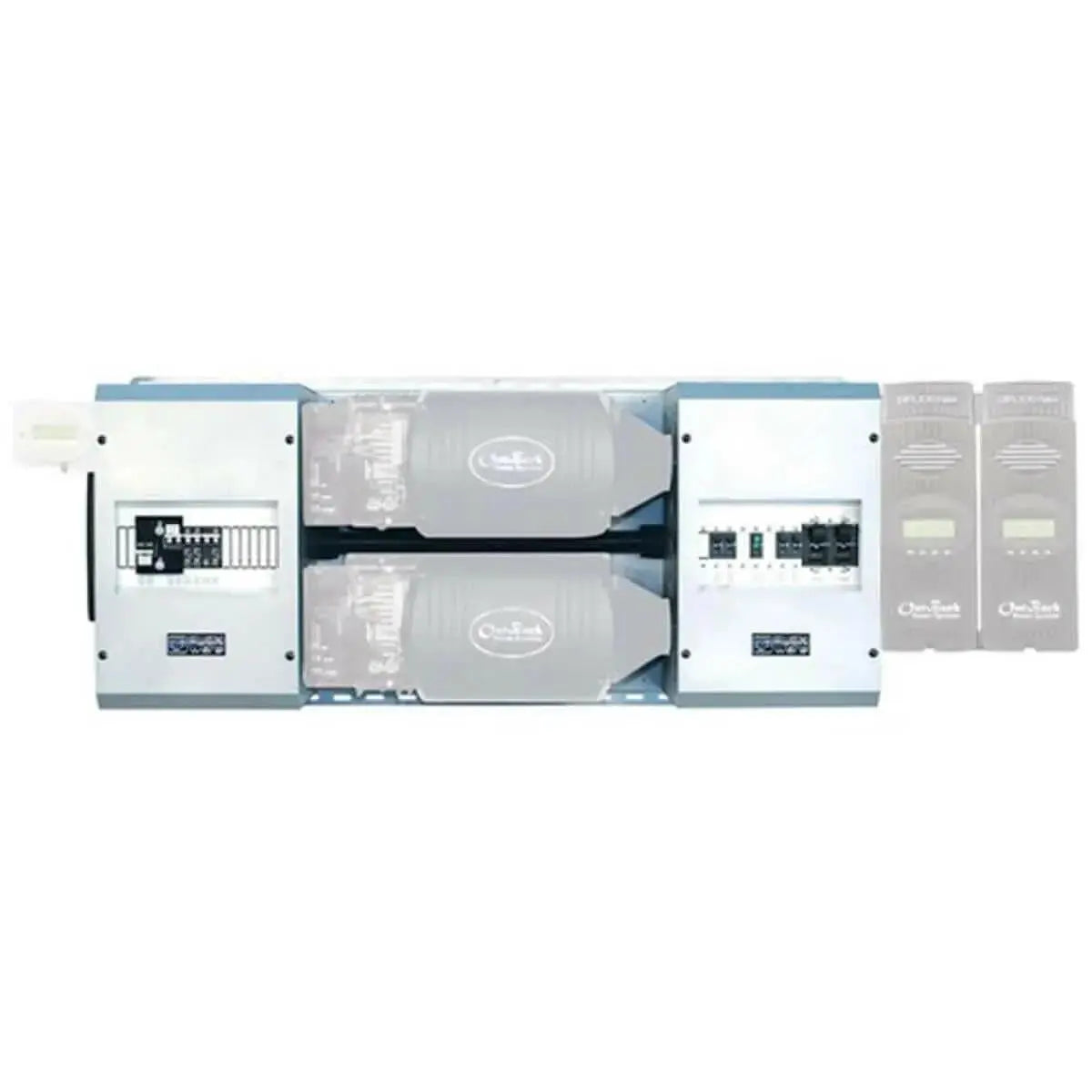

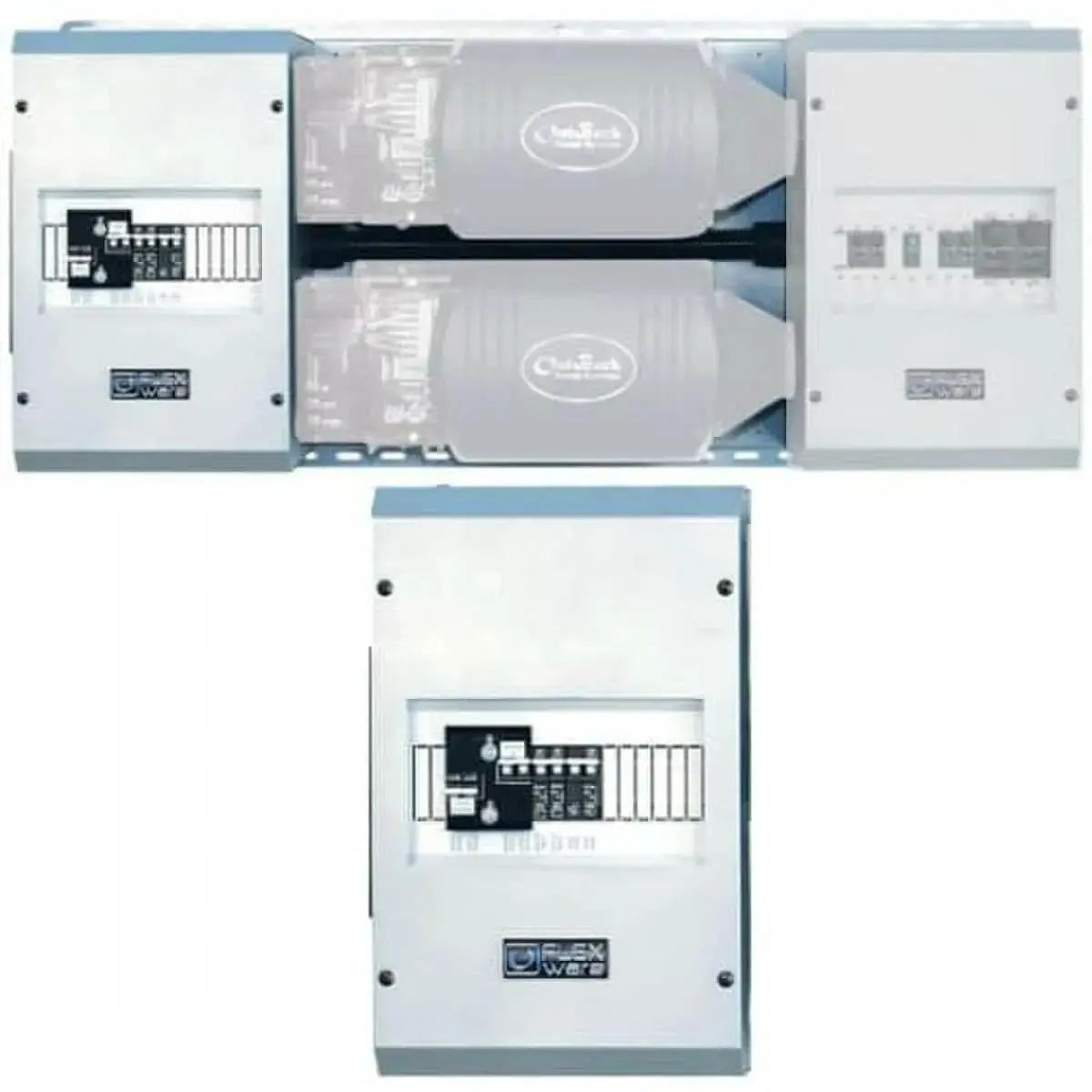

The FLEXware 500 system architecture can support up to two OutBack FX Series Inverter/Chargers, up to two OutBack charge controllers and all the associated AC and DC components. Due to a very compact design, FLEXware 500 AC and DC enclosures mount with a FLEXware MP in either a horizontal or vertical orientation to allow installation in more space-limited locations for a fast and professional looking wall-mounted installation. The FLEXware 500 accommodates all of the essential protective devices in two enclosures.

Features

• Supports up to two outBack FX Series inverter/chargers
• Up to two OutBack charge controllers and all the associated AC and DC components
• Compact design
• Horizontal or vertical orientation
• Supports six terminal bus bars and one FW-X240

Specifications

• Enclosure Material: Aluminum
• Protection: Type 1 (Indoor) (IP30)
• Dimensions: 18.2 in (L) x 11 in (W) x 12.1 in (H)
• Includes: Ground Bus Bar, DIN Mounting Bracket, Communication Cable Conduit & Enclosure Mounting Hardware
• Suitable For Use With: AC Side of One or Two FX Series Inverter/Chargers
• Application: Medium Power Requirements Such as Homes, Light Commercial, or Larger Backup Power Systems


Documents

• User Guide
• Specification Sheet
