Outback FW-IOB-D-120VAC Dual inverter Input-Output-Bypass for FW500
Regular price
$485.78
Sale price
$485.78
Regular price
Unit price
-
Estimated Delivery:Jan 15 - Jan 19
-
Free Shipping & Returns: On all orders over $75
Outback FW-IOB-D-120VAC Dual inverter Input-Output-Bypass for FW500
Regular price
$485.78
Sale price
$485.78
Regular price
Unit price
Product description
Shipping & Return

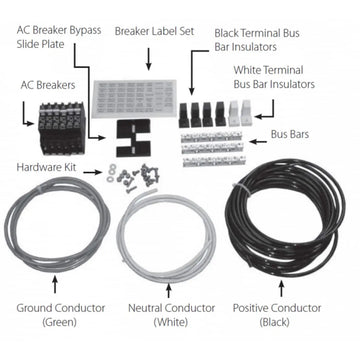

Field-installable kit for bypassing the AC input to the AC output for inverter maintenance or installation. Also provides over-current protection. Includes Four 60A 120VAC single pole DIN mount breakers, one 60A 120VAC dual pole DIN mount breaker, sliding bypass interlock plate, wire and hardware kit.
Specifications
- System Rating: Single Phase 120 VAC, 120 A, 14.4 kW
- Bypass Breaker: Two Poles at 60 A, 14.4 kW
- Input Breaker: Two Poles at 60 A, 14.4 kW
- Output Breaker: Two Poles at 60 A, 14.4 kW
- Suitable For Use With: FW500 Dual Inverter
-
Includes:
- (4) 60 A 120 VAC Single Pole DIN Mount Breakers
- (1) 60 A 277/480 VAC Dual Pole DIN Mount Breaker
