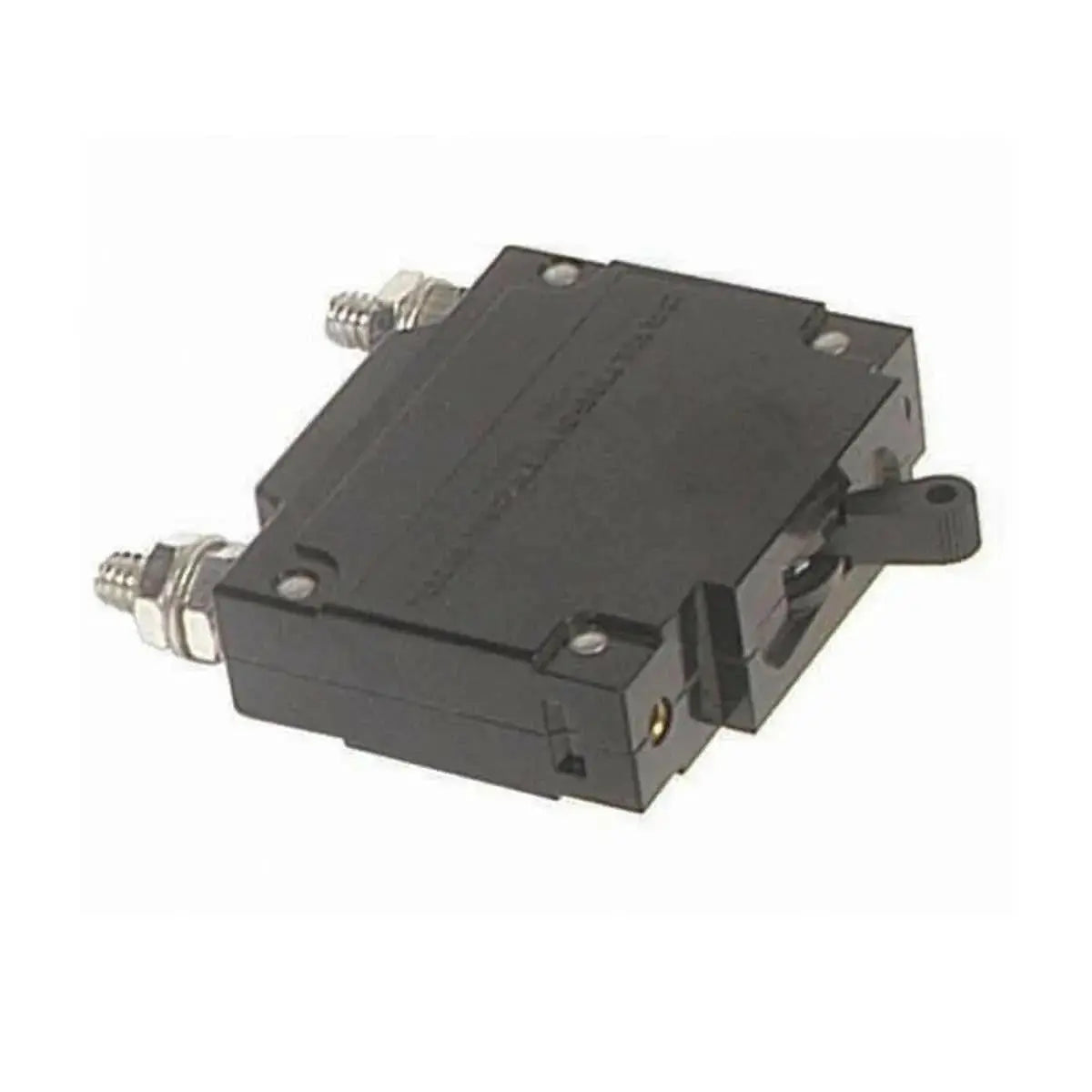

Outback 50A 250VAC single pole panel mount breaker with 1/4" stud terminals (SKU Part Number PNL-50-AC-250)
Regular price
$19.18
Sale price
$19.18
Regular price
Unit price
-
Estimated Delivery:Jul 02 - Jul 06
-
Free Shipping & Returns: On all orders under $50
Outback 50A 250VAC single pole panel mount breaker with 1/4" stud terminals (SKU Part Number PNL-50-AC-250)
Regular price
$19.18
Sale price
$19.18
Regular price
Unit price
Product description
Shipping & Return
50 A 250 Volt AC single pole panel mount circuit breaker. 1/4" stud terminals. Used in Outback GS load centers.
Features
- Front panel mount, single and double pole with stud terminals on the back
- Conductor ring terminals required
- Used for DC sources, inverters and load circuits
- Panel mounted hydraulic-magnetic type breakers
- Rated for 100% continuous duty cycle
- Not affected by high ambient temperatures
- Non-polarized for use in any wiring orientation
-
Contact OutBack for additional information
Specifications
- Type: Hydraulic-Magnetic
- Voltage Rating: 250 VAC
- Current Rating: 50 A
- Number of Poles: 1
- Mounting Type: Panel
- Terminals: 1/4 in Stud
- Branch Circuit: 10 kAIC
- Suitable For Use With: Input, Output or Load Circuits
- Standards: UL Listed
Documents
