RICH SOLAR NOVA MAX 3K | 24V 3000W Off-Grid Hybrid Inverter | Pure Sine Wave
NOVA MAX 3K — 3000W Off-Grid Hybrid Inverter Charger
The NOVA MAX 3K is a compact, all-in-one hybrid inverter combining a 3000W pure sine wave inverter, 80A MPPT solar charge controller, and battery charger in one unit. Supporting solar, utility, and generator power, it delivers stable off-grid energy in a space-saving, easy-to-install solution.
Key Features
- All-in-One Hybrid Power: Inverter + MPPT Solar Charger + Battery Charger in a single unit
- 3000W Pure Sine Wave Output with 6000W surge power (5s) — clean, stable power for sensitive electronics
- 91% Inverter Efficiency / >95% Line Mode Efficiency
- 80A MPPT Solar Charger — supports up to 3000W PV input (90–230VDC, 250V max open-circuit)
- Three Charging Modes: Solar First, Solar & Utility, Only Solar
- Three Load Output Modes: Utility First, Solar & Utility, SBU Priority
- Battery Compatibility: AGM, Gel, Flooded, and Lithium batteries with BMS communication
- Parallel Capability: Up to 9 units for single-phase, split-phase, or three-phase systems
- Fast Transfer Time: 10ms (UPS mode) / 20ms (Appliance mode)
- LCD Monitoring: Real-time display of battery status, grid voltage, output power, PV input, and more
- Communication: Wi-Fi / RS232 / RS485 / CAN
- Intelligent Safety: Overload, over-temperature, short circuit, and over-voltage protection
- Automatic AC Recovery: Restarts automatically when AC power is restored — no manual reset required
- Wide Operating Temperature: 14°F to 104°F
Ideal Applications
- RVs & Travel Trailers
- Marine & Boats
- Off-Grid Cabins
- Solar Home Systems
- Vans & Campers
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | RS-H3024X |
| Rated Power | 3,000VA / 3,000W |
| Surge Power (5s) | 6,000W |
| Output Voltage | 120VAC ±5% |
| Frequency | 50/60Hz (Selectable) |
| THD | <5% (Linear Load) |
| Inverter Efficiency | Up to 91% |
| Transfer Time | 10ms (UPS) / 20ms (Appliance) |
| Nominal DC Voltage | 24VDC |
| Max Charge Current | 80A (Utility + Solar) |
| Battery Cold Start Voltage | 23VDC |
| Low DC Cutoff Voltage | User-Configurable |
| Max PV Input Power | 3,000W |
| Max PV Open-Circuit Voltage | 250VDC |
| MPPT Voltage Range | 90–230VDC |
| Max PV Input Current | 22A |
| PV Start-up Voltage | 80VDC ±5V |
| Operating Temperature | 14°F to 104°F |
| Cooling | Smart Temperature-Controlled Fan |
| Communication | Wi-Fi / RS232 / RS485 / CAN |

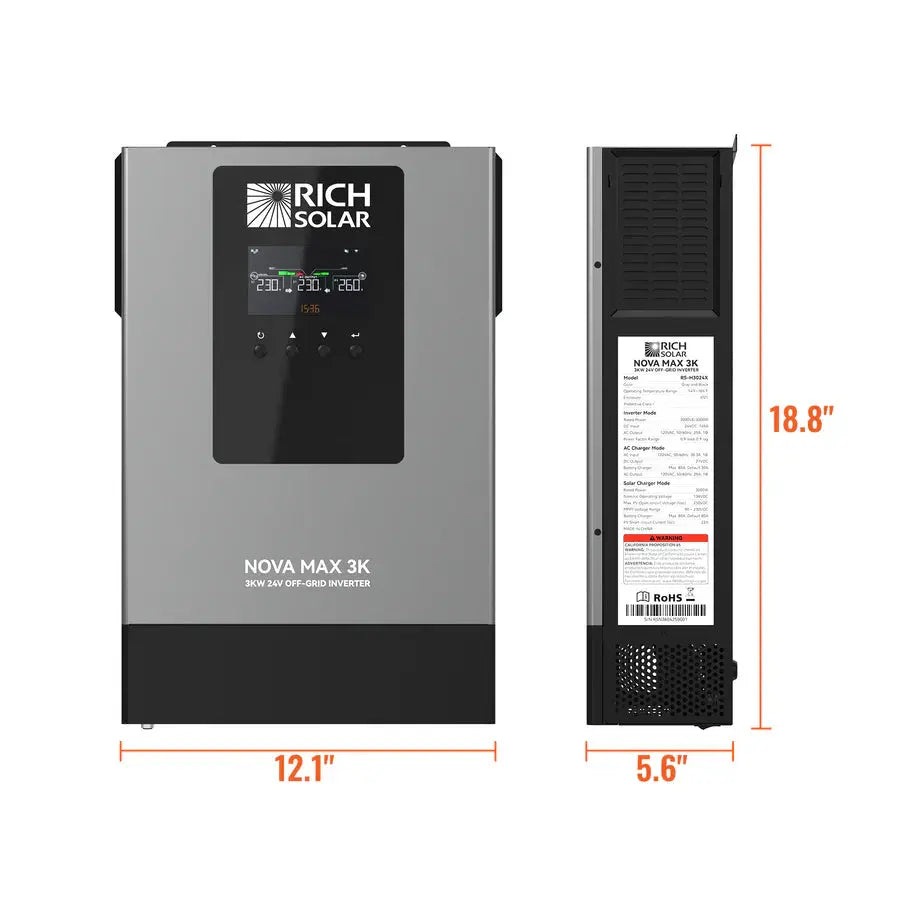

| Dimensions (D × W × H) | 5.6 × 12.1 × 18.8 in |
| Net Weight | 26.5 lbs |
Downloads
Warranty
This product is backed by Rich Solar's manufacturer warranty. For full warranty details, visit richsolar.com/pages/warranty.
Customer Support: 800-831-9889 | support@richsolar.com | Mon–Fri 9am–5pm PST
