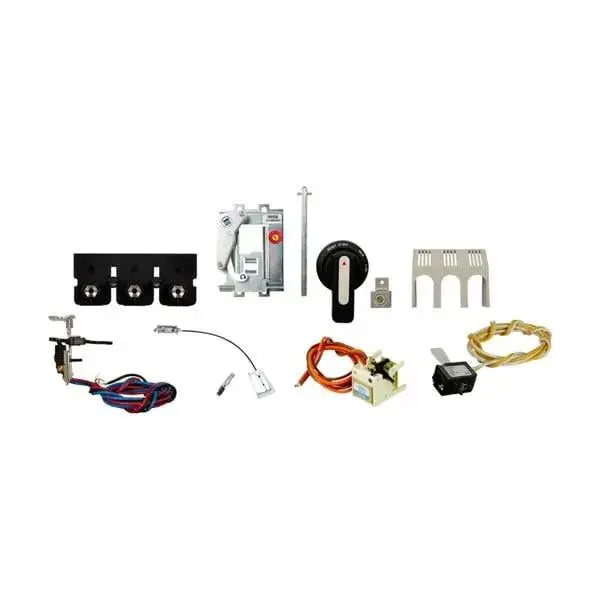

NGHMVD08BX - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

The Eaton Molded Case Circuit Breaker Accessory Handle Mechanism, S2 Handle Mechanism, is designed for use with Eaton's NG frame circuit breakers. This accessory offers a black/blue color scheme and is compatible with Series G circuit breakers. It is suitable for NEMA 4 and 4X enclosures, providing protection against dust, water, and other harsh conditions. The mechanism features an 8-inch handle for reliable operation in demanding environments.

Key Features:

• Compatibility: NG frame circuit breakers, Series G
• Handle Length: 8 inches
• Color: Black/Blue
• Enclosure Compatibility: NEMA 4 and 4X
• Designed for molded case circuit breakers

This handle mechanism is a reliable solution for ensuring efficient operation of your Eaton molded case circuit breakers in industrial settings.

Documents:

Application of Tap Rules to Molded Case Breaker Terminals

Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Brochures
Motor protection circuit breakers product aid
StrandAble terminals product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
NG and ND-Frame molded case circuit breakers-Eaton NGHMVD08BX
