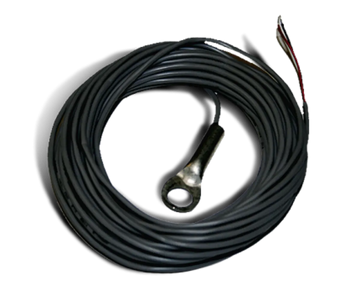

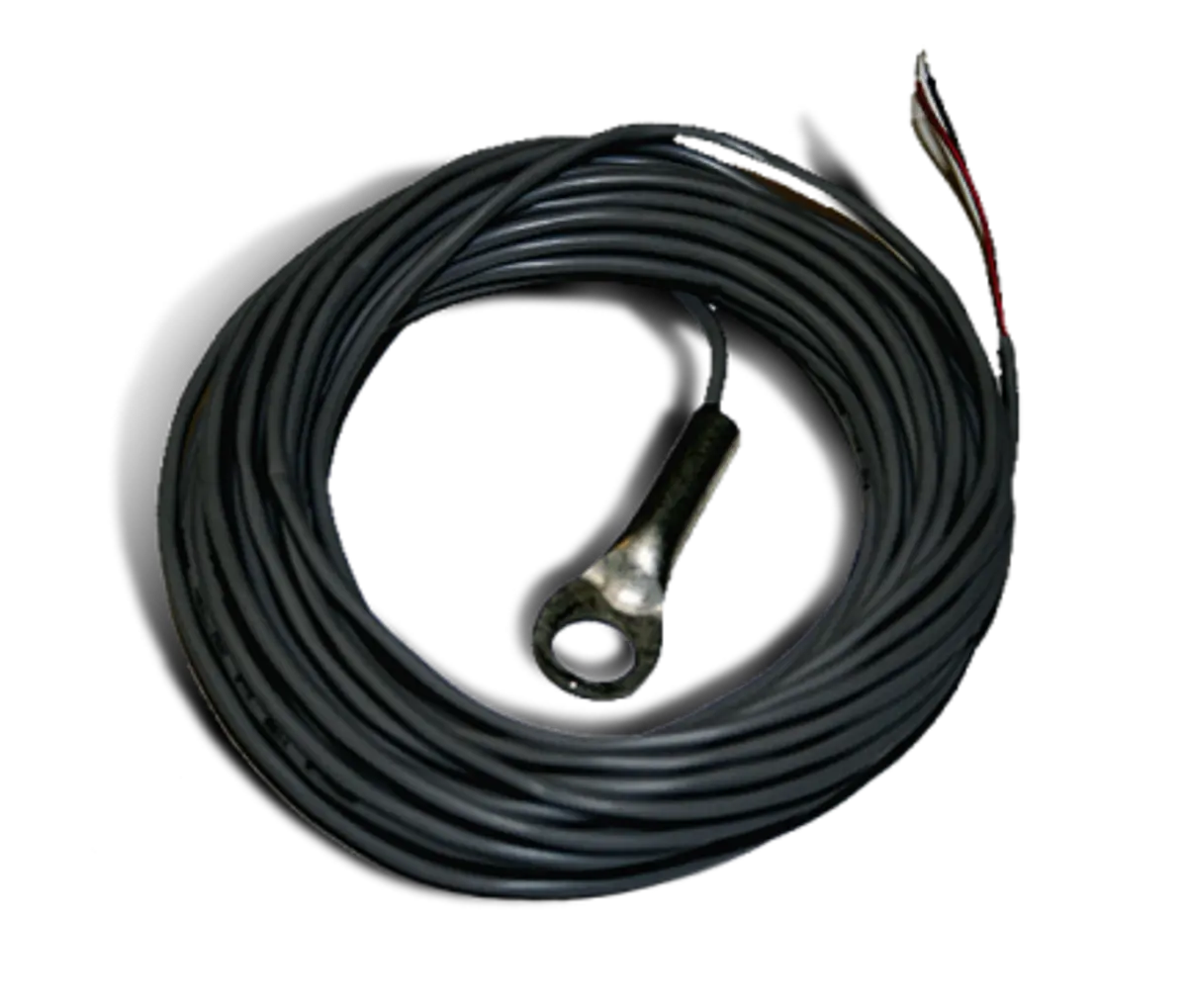

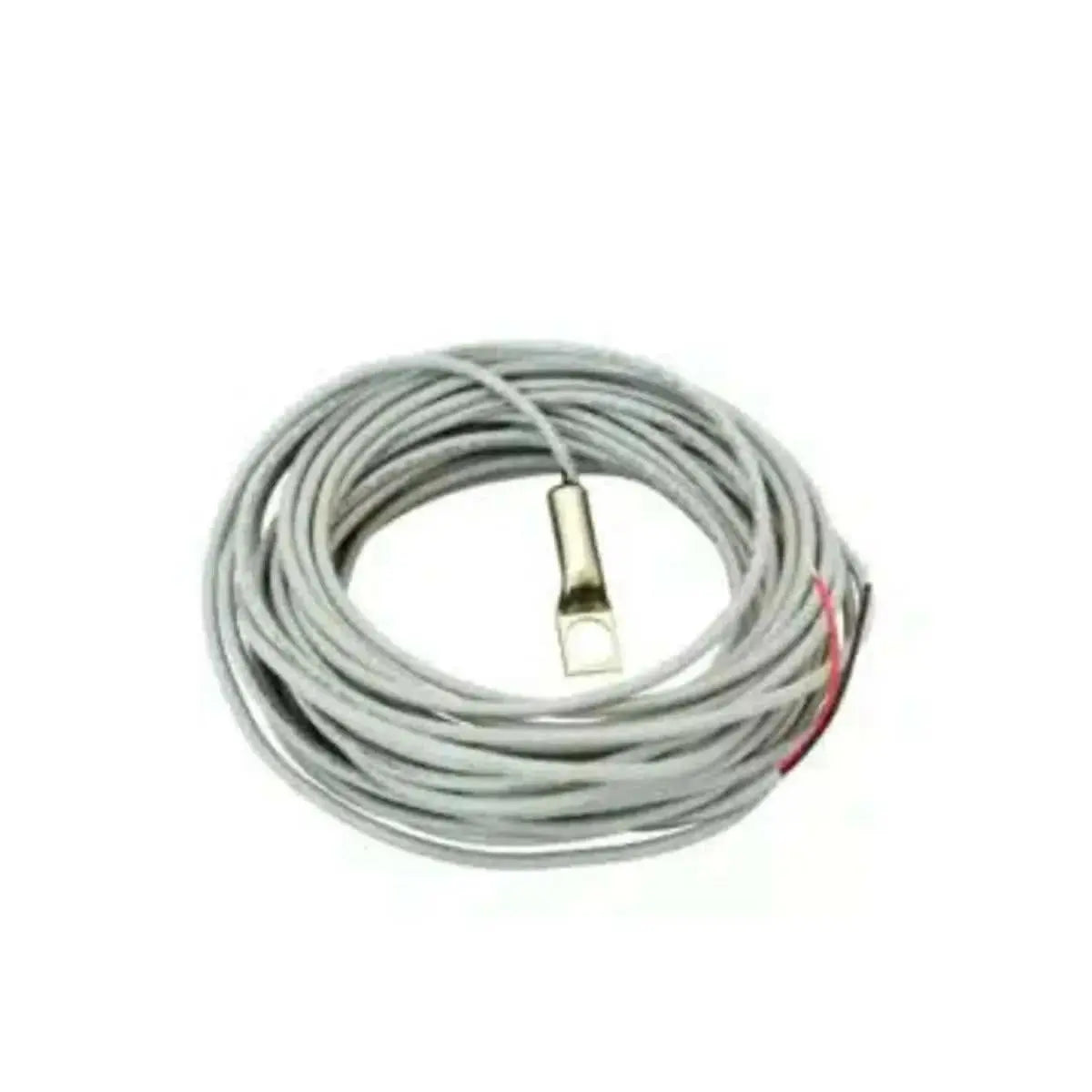

Morningstar 10 m Remote Temperature Sensor

Morningstar's Remote Temperature Sensor™ (RTS) provides improved battery charging in solar systems that experience temperature variations during the year. The RTS measures temperature at the battery and the controller uses this data for very accurate temperature compensation. Use of the RTS is recommended whenever the temperature at the battery will be more than 5°C (9°F) different than the temperature at the controller. The TriStar has no on-board temperature compensation; therefore the use of the RTS is required for temperature compensated charging. Other Morningstar controllers will default to an on-board temperature sensor if a RTS is not connected. The RTS is compatible with the following Morningstar controllers: TriStar, TriStar MPPT, TriStar MPPT 600V, ProStar and Prostar MPPT, Sunsaver MPPT, EcoBoost MPPT, SunKeeper, SunSaver Duo, EcoPulse.

Features

• Recommended for solar systems that experience temperature variations during the year or whenever the temperature at the battery will be more than 5 °C (9 °F) different than the temperature at the controller
• Improves battery charging by using temperature at the battery for very accurate temperature compensation
• User may easily extend cable length up to 30 meters (100 feet) using standard cable
• Wires are non-polarized
• UL recognized component when used with TriStar
• CE certified for use with all compatible Morningstar controllers
• Sensor noise is filtered
• ETL recognized component for use with TriStar and TriStar MPPT controllers
• Manufactured in a Certified ISO 9001 Facility


Specifications

• Temperature Accuracy: +/-1.5°C
• Cable Length: 10 m
• Operating Temperature: -30 to 80°C (-22 to 176°F)
• Power Lug Housing: 9.5 mm (3/8 in) Screw Hole
• Wire Size: 0.34 sq-mm (#22 AWG)
• Wire Material: 2-Conductor Copper with PVC Jacket
• Standards: UL Recognized, CE Certified, RoHS Compliant
• Warranty: 5 Years


Documents

• Specification Sheet
• Instruction/Installation Manual
