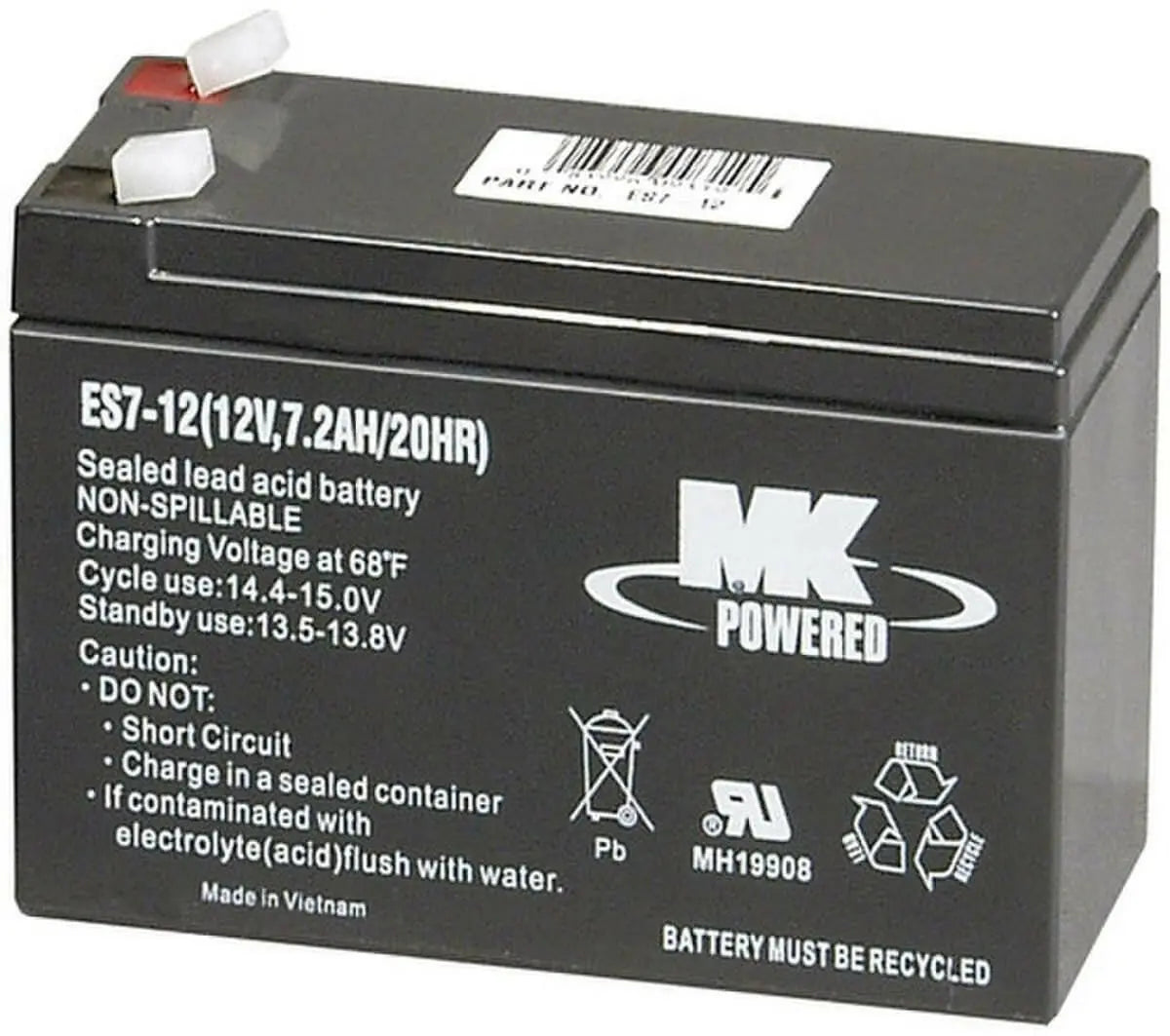

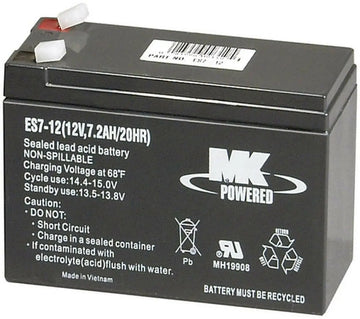

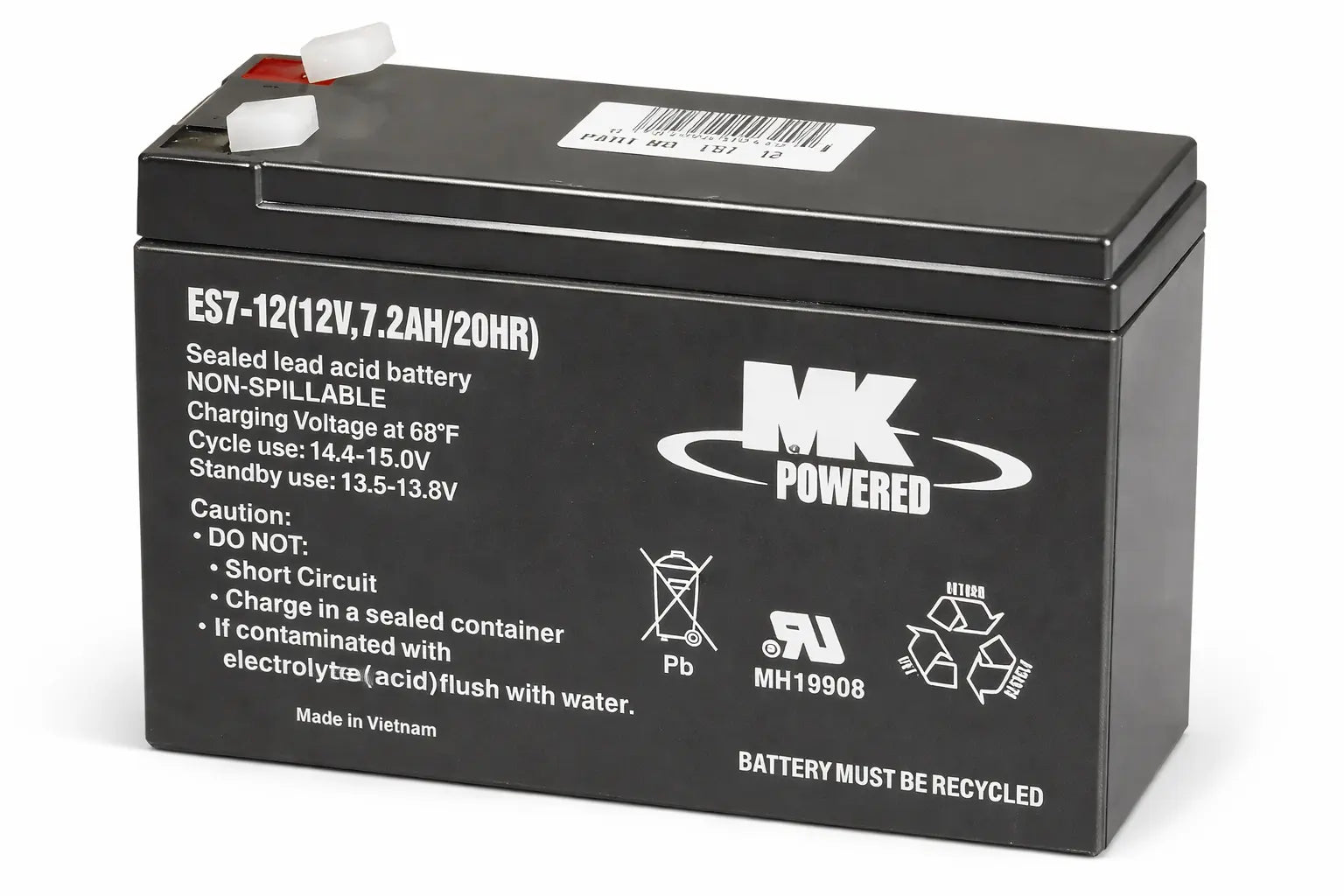

MK Powered® ES7 AGM Solar Battery

Sealed, maintenance-free, valve-regulated type AGM batteries are available in smaller size capacity ratings, perfect for use with solar applications for powering lighter loads such as telemetry, SCADA,remote monitoring, UPS systems, LED, and emergency lighting. Capacity discharge ratings are at the 20-hr. rate & operating temperature range is -15°C to 50°C. Rated non-spillable by DOT. 1-year warranty.

Features

• Easy installation and high compatibility


Specifications

• Series/Model: ES7
• Voltage Rating: 12 V
• Nominal Capacity: 7.2 Ah at (0.36 A to 10.50 V) 20 hr, 6.84 Ah at (0.684 A to 10.50 V) 10 hr, 6.12 Ah at (1.224 A to 10.20 V) 5 hr, 4.08 Ah at (7.2 A to 9.60 V) at 1C, 2.88 Ah at (21.6 A to 9.60 V) at 3C
• Dimensions: 5.94 in Length x 4.02 in Width x 3.7 in Height
• Discharge Current: 108 A at 5 sec
• Material: ABS Case
• Internal Resistance: 22 mohm at 1 Khz
• Operating Temperature: -15 to 40°C Charge, -15 to 50°C Discharge
• Self Discharge Rate: 92% per 1 Month, 90% per 3 Month, 80% per 6 Month
• Charge Voltage Rating: 14.4-15 V at Cycle, 13.5-13.8 V at Float
• Terminal: F1 (Faston Tab 187) or F2 (Faston Tab 250)
• Technology: Sealed Absorbed Glass Mat (AGM)
• Temperature Coefficient: -5 mv/°C/Cell at Cycle, -3 mv/°C/Cell at Float
• Standards: UL Listed
• Warranty: 10 Years Limited
• Weight: 5.28 lb


Documents

• Specification Sheet 1
• Specification Sheet 2
• Warranty Information
