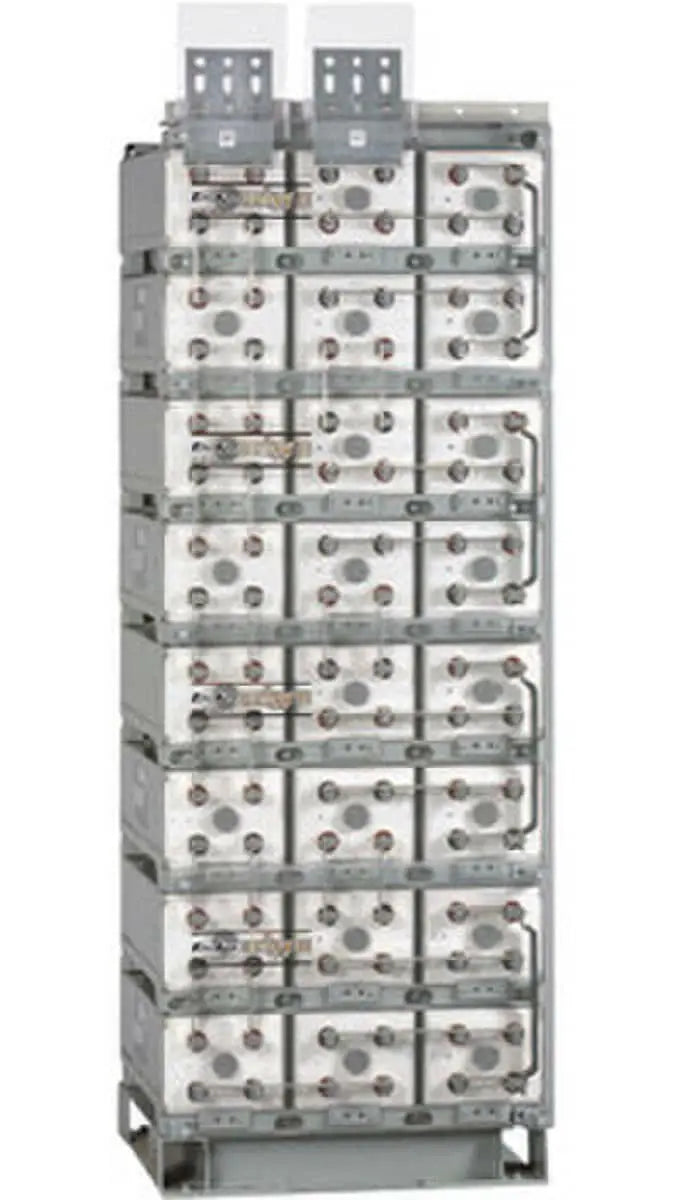

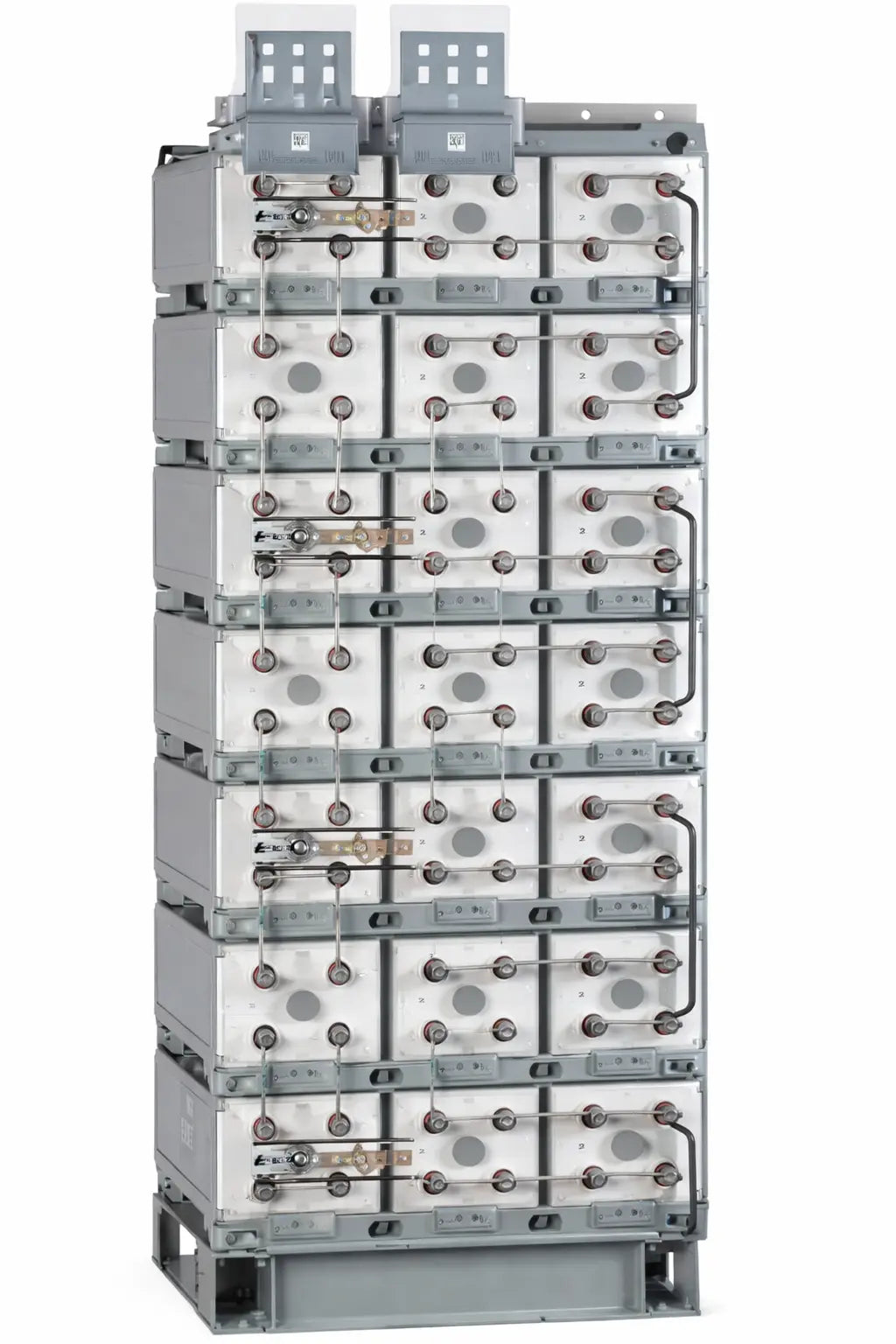

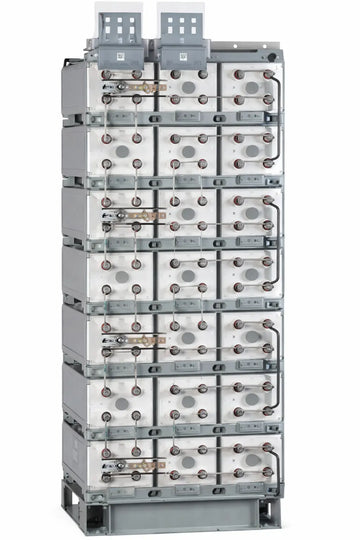

MK Battery Unigy II 3AVR75-21 3-Cell 6V 936Ah Module Non-Interlock

The DEKA UNIGY II LINE features two module designs with a wide range of capacities and sizes to fit the requirements of renewable energy applications. These modules are constructed using the finest quality materials and state-of-the-art manufacturing techniques enhancing their performance in these demanding applications.

Features

• Two Way Post design is lead plated solid copper providing a large contact area with front access bolting for easier installation and maintenance


Specifications

• Type: Non-Interlock
• Voltage Rating: 6 V
• Separators: Micro-Porous Glass Mat
• Individual Plate Formation: Shipped at 100% Capacity
• Cycle Life: 2400 Cycles at 20% DOD
• Number of Cells: 3
• Cell Type: AVR75-21
• Ah Rating: 936 Ah
• 10 Hr Rate at 1.75 VPC: 819 Ah at 77°F
• 20 Hr Rate at 1.75 VPC: 913 Ah at 77°F
• 24 Hr Rate at 1.75 VPC: 936 Ah at 77°F
• 100 Hr Rate at 1.75 VPC: 1046 Ah at 77°F
• 10 Hr Rate at 1.81 VPC: 779 Ah at 77°F
• 20 Hr Rate at 1.81 VPC: 865 Ah at 77°F
• 24 Hr Rate at 1.81 VPC: 888 Ah at 77°F
• 100 Hr Rate at 1.81 VPC: 999 Ah at 77°F
• 10 Hr Rate at 1.84 VPC: 763 Ah at 77°F
• 20 Hr Rate at 1.84 VPC: 844 Ah at 77°F
• 24 Hr Rate at 1.84 VPC: 864 Ah at 77°F
• 100 Hr Rate at 1.84 VPC: 978 Ah at 77°F
• Mounting Type: Hole
• Finish: Acid Resistant Epoxy Powder Paint
• Standards:
  • UL Recognized Component
  • ISO9001
  • ISO/TS 16949
• Warranty: 10 Years Limited
