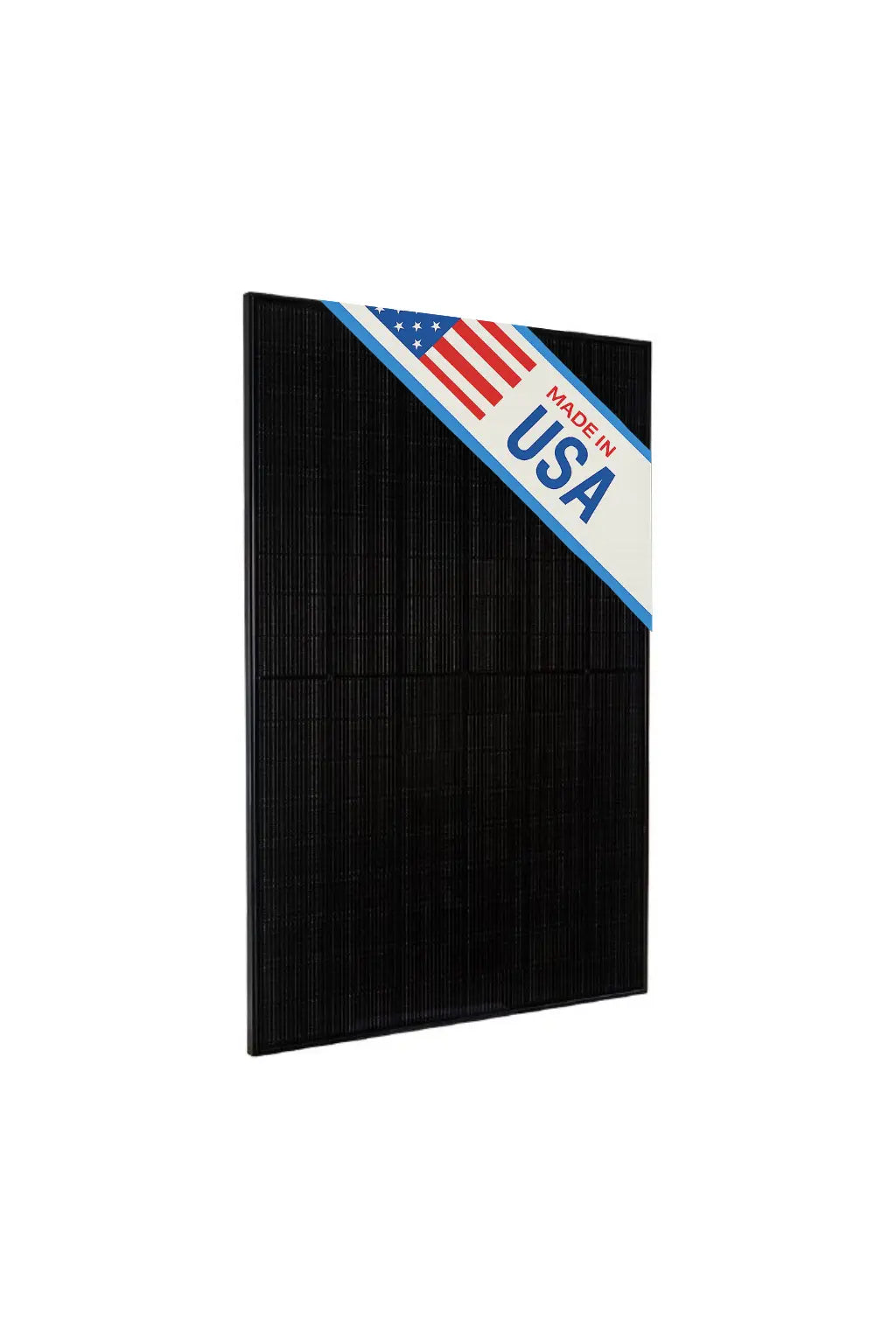

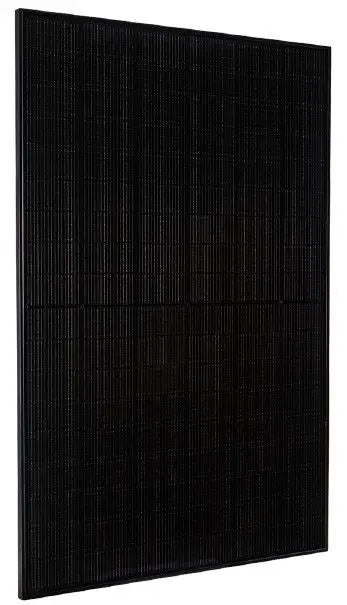

Mission Solar MSX10-435HN0B - 435 W N-Type i-TOPCon Solar Module
-
Estimated Delivery:Jan 16 - Jan 20
-
Free Shipping & Returns: On all orders over $75
Mission Solar MSX10-435HN0B - 435 W N-Type i-TOPCon Solar Module
Enhance Your Energy Solutions with Mission Solar
Powerful, efficient, and built to last. This 108 half-cell monocrystalline panel delivers 435W with 22.3% efficiency, backed by a 25-year warranty and sleek black aesthetics. Designed for durability in all environments, it ensures strong performance and reliable long-term energy savings.
Key Features & Benefits
| Feature | Why It Matters |
|---|---|
| High Power Output – 435 W | Delivers excellent wattage per module to reduce the number of panels needed and lower BOS (balance-of-system) costs. |
| Module Efficiency of 22.3 % | Advanced N-Type i-TOPCon cell architecture ensures high energy yield, even in challenging conditions. |
| Positive Power Tolerance (0 / +3 %) | Guarantees actual power is never below rated, giving you more reliable performance. |
| Low Temperature Coefficients | -0.29 %/°C for Pmp, -0.25 %/°C for Voc → retains more performance as module heats under sun. |
| Robust Mechanical Design | Certified for 5,400 Pa front- and back-load—resists snow, wind, and harsh environmental stress. |
| Built to Withstand Harsh Conditions | Salt spray, ammonia, sand, high heat, humidity—engineered for reliability in coastal or polluted areas. |
| Long Warranty & Power Retention | – ≤ 1 % degradation in year 1; then ≤ 0.45 % annually; ≥ 86 % of nameplate power at 30 years. |
Technical Spec Highlights
-
Cell / Module Type: N-Type i-TOPCon, Monocrystalline (108 Half-cells)
-
Dimensions & Weight: 1,722 mm × 1,134 mm × 35 mm; around 21.3 kg (≈ 46.96 lbs)
-
Frame & Aesthetics: Black backsheets, anodized black 35 mm aluminum frame—sleek, uniform appearance on rooftop installations.
-
Operating Conditions: -40 °C to +85 °C; modules rated for system voltages up to 1,500 V DC.
-
Connectors & Wiring: IP68 rated junction box; MC4 EV02 or Staubli EVO-2A connectors; 1.2 m wire (12 AWG / 4 mm²).
Ideal Applications
-
Residential rooftops with emphasis on sleek black aesthetics
-
Commercial installations needing high-power, high-voltage modules to maximize output
-
Coastal or industrial environments where durability (against salt, corrosion, heat) is critical
-
Systems designed for long lifespans (25-30 years) with minimal performance loss
Document: Specification Sheet
Unmatched Efficiency with N-Type Technology
Mission Solar's MSX10-435HN0B features cutting-edge N-Type i-TOPCon technology, which significantly enhances energy yield. The 435W output is not only impressive but also ensures more power generation per square meter compared to traditional solar panels. This module's design allows it to perform exceptionally in low-light conditions, making it a reliable choice for varying weather scenarios. With Mission Solar, you can trust that your energy needs are met almost every day, so you can maximize your investment in renewable energy.
Durable Design with 108 Half-Cells
This solar module incorporates 108 half-cells, which reduces resistive losses and improves overall efficiency. The black backsheet and frame not only provide an aesthetically pleasing look but also contribute to the module's robustness. Because the half-cell design minimizes shading impact, you can still generate electricity even with partial obstructions. Mission Solar's dedication to quality means you'll enjoy a long-lasting and effective solar solution, ensuring peace of mind for homeowners and businesses alike.
Easy Installation and Reliability
Installing the Mission Solar MSX10-435HN0B is a straightforward process thanks to its lightweight design and standard dimensions. This module is compatible with various mounting systems, ensuring flexibility for installation on different rooftops or ground setups. Thanks to its 25-year warranty, you can be confident in your choice, as Mission Solar stands behind the durability and performance of their products. Therefore, making the switch to solar energy becomes an effortless and wise decision for your energy future.
High Efficiency and Performance
The Mission Solar MSX10-435HN0B is a 435 W N-Type i-TOPCon solar module designed for high efficiency. This technology provides superior energy output compared to standard modules. Because it utilizes advanced materials, users can expect enhanced performance even in low-light conditions. However, what truly sets it apart is its excellent temperature coefficient, meaning less energy loss as the temperature rises, ensuring long-term reliability.
Durability and Longevity
Durability is key when choosing a solar module, and Mission Solar excels in this area. The MSX10-435HN0B features robust construction with a strong glass layer that withstands harsh weather conditions. This is essential for homeowners who want a system that lasts. Furthermore, it is designed to mitigate risks of micro-cracking and helps ensure the module maintains its efficiency over time, making it a smart investment for renewable energy.
Easy Installation and Compatibility
Another advantage of the Mission Solar MSX10-435HN0B is its straightforward installation process. It is compatible with various mounting systems, meaning it can fit seamlessly into most existing setups. Because of this versatility, installers can complete projects quicker without compromising on quality. Therefore, whether you are upgrading your current system or starting anew, this solar module is a reliable choice.
