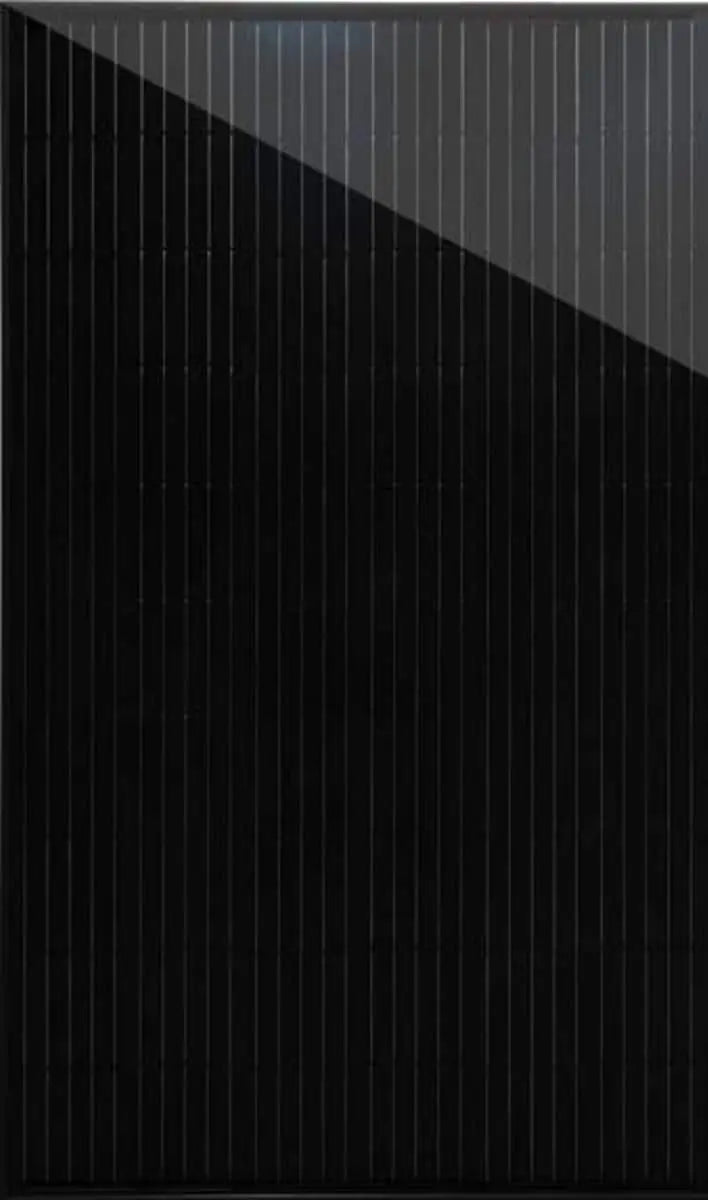

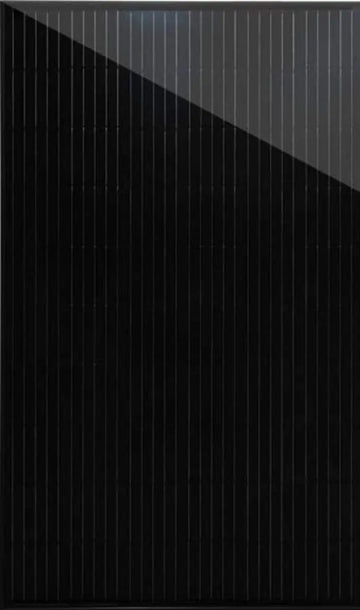

Mission Solar MSE60A310 310w Mono Solar Panel

Explore the Superior Efficiency of the 310w Monocrystalline Solar Panel

Features

• Certified Reliability - Tested to UL1703 standards. PID resistant
• Superior Aesthetics - All black design coupled with outstanding power output. Ideal for residential and commercial applications
• Excellent Weather Resilience - 3600 Pa snow load (75 psf) tested to UL1703
• All-Black PERC with 5 busbar technology


Specifications

• Type: High Power Rooftop
• Length: 1640 mm
• Width: 992 mm
• Height: 40 mm
• Cells Technology: P-Type Monocrystalline Silicon
• Cell Dimensions: 156.75 mm
• Number of Half Cells: 60 (6 x 10)
• Maximum Power (Pmax): 310 W
• Maximum Power Voltage (Vmp): 32.97 V
• Maximum Power Current (Imp): 9.4 A
• Open-Circuit Voltage (VOC): 41.14 V
• Short-Circuit Current (Isc): 10.21 A
• Maximum System Voltage: 1000 VDC
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm (0.126 in) Tempered, Low-Iron, Anti-Reflective Coating
• Frame Color: Black
• Backsheet Color: Black
• Output Cables: PV Wire, 1 m (39.37 in), 4 mm² / 12 AWG
• Connector Type: MC4 Compatible
• Fire Type: Type 2
• Front Side Maximum Static Loading: 50 psf (Maximum Load 75 psf Tested to UL1703)
• Rear Side Maximum Static Loading: 50 psf (Maximum Load 75 psf Tested to UL1703)
• Operating Temperature: -40 to 185°F
• Temperature Coefficients of Pmax: -0.38%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.28%/°C
• Temperature Coefficients of Isc: 0.04%/°C
• Nominal Operating Cell Temperature: 46.7°C (±2°C)
• Junction Box: Protection Class IP67 Rated with 3 Bypass-Diodes
• Power Output Tolerance: 0-5 W
• Encapsulant: Ethylene Vinyl Acetate (EVA)
• Standards: UL, IEC, TUV, CSA, cUS, BAA
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 41.9 lb

Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information

High Performance and Energy Efficiency

The Mission Solar MSE60A310 310w monocrystalline solar panel stands out for its exceptional energy output and efficiency. Designed with advanced monocrystalline solar cells, it delivers consistent performance even under low light conditions, maximizing energy capture throughout the day. This panel offers a reliable power source for residential, commercial, and off-grid applications, making it an ideal choice for those seeking to optimize solar energy generation with a compact yet powerful 310w module.

Durability Built for Long-Term Use

Constructed with premium materials, the 310w monocrystalline solar panel from Mission Solar is built to withstand harsh weather conditions. Its robust frame and tempered glass provide resistance against wind, hail, and heavy snow loads, ensuring long-lasting service life. This durability is crucial for maintaining peak performance and protecting your solar investment over decades of use, guaranteeing steady energy production and reduced maintenance needs.

Easy Installation and Versatile Application

The Mission Solar MSE60A310 panel features a user-friendly design that simplifies installation for professionals and DIY enthusiasts alike. Its standardized size and compatibility with most mounting systems enable quick setup on rooftops, solar arrays, and other structures. This versatility makes it suitable for a wide range of applications, from residential solar power systems to commercial renewable energy projects seeking an efficient 310w monocrystalline solar panel solution.
