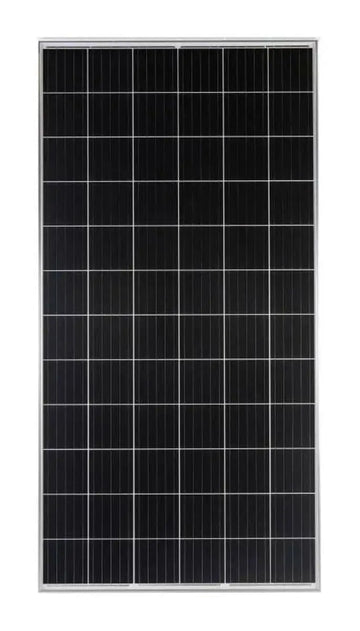

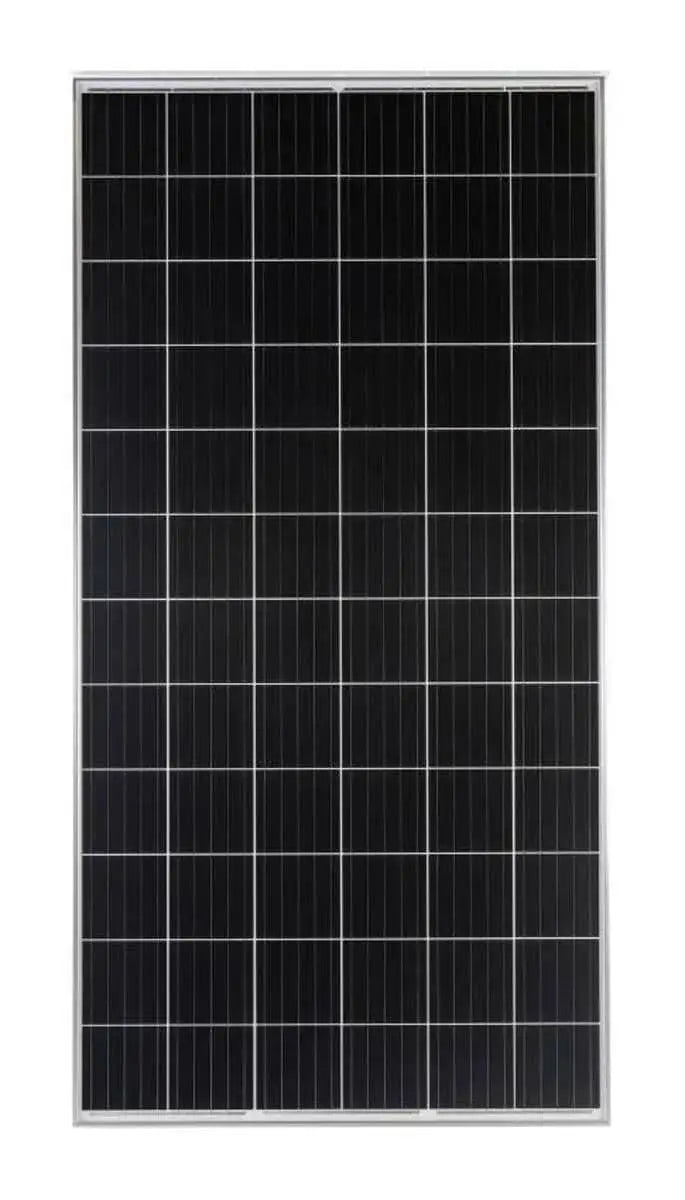

Mission Solar MSE390SR9S 390w Mono Solar Panel

Mission Solar MSE390SR9S 390w Mono Solar Panel - A Reliable Energy Solution

 Features

• Certified Reliability - Tested to UL1703 and IEC standards. PID resistant. BAA Compliant for government projects
• Advanced Technology - PERC and 5 busbar drive >19.3% module efficiency. Ideal for all applications
• Excellent Weather Resilience - 5631 Pa front and back load (117 psf) tested load to UL1703
• BAA Complaint for Government Projects - Buy American Act, American Recovery & Reinvestment Act


Specifications

• Length: 1999 mm
• Width: 1008 mm
• Height: 40 mm
• Cells Technology: P-Type Monocrystalline Silicon
• Cell Dimensions: 158.75 mm
• Number of Half Cells: 72 (6 x 12)
• Maximum Power (Pmax): 390 W STC/360.7 W PTC
• Maximum Power Voltage (Vmp): 41.05 V
• Maximum Power Current (Imp): 9.499 A
• Open-Circuit Voltage (VOC): 48.96 V
• Short-Circuit Current (Isc): 10.024 A
• Maximum System Voltage: 1000 VDC or 1500 VDC
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 20%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: 3.2 mm (0.126 in) Tempered, Low-Iron, Anti-Reflective Coating
• Frame Color: Black
• Backsheet Color: Black
• Output Cables: PV Wire, 1.2 m (47.24 in), 4mm2/12 AWG
• Connector Type: MC4 Compatible
• Fire Type: Type 1, Class C
• Front Side Maximum Static Loading: 5361 Pa (117 psf) Tested to UL1703 standard
• Rear Side Maximum Static Loading: 5361 Pa (117 psf) Tested to UL1703 standard
• Hailstone Test: 25 mm at 23 m/s
• Operating Temperature: -40 to 185 deg F
• Temperature Coefficients of Pmax: -0.375%/deg C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.28%/deg C
• Temperature Coefficients of Isc: 0.045%/deg C
• Nominal Operating Cell Temperature: 46.43 deg C (+/-2 deg C)
• Junction Box: Protection Class IP67 Rated with 3 Bypass-Diodes
• Power Output Tolerance: 0-5 W
• Encapsulant: Ethylene Vinyl Acetate (EVA)
• Standards: UL 1703, IEC 61215-61730-61701 - Salt Mist, TUV, CSA, CUS, BAA, CuL
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 52 lb
• Length: 16.8 in
• Width: 4.9 in
• Height: 12.7 in
• Input Voltage: 120 Vac
• Output Voltage: 120 Vac
• Amperage Rating: 48 V
• Power Rating: 3500 W
• Battery Chemistry: Lead Acid/Lithium
• Suitable For Use With: Pure Sine Wave Inverter


Superior Energy Efficiency

The Mission Solar MSE390SR9S 390w Mono Solar Panel is designed for maximum energy production, making it a top choice in the industry. With its advanced monocrystalline technology, this solar panel achieves higher efficiency rates compared to typical polycrystalline panels. This means you can generate more energy from a smaller surface area, resulting in better performance and faster returns on your investment. Because it captures more sunlight even in less-than-ideal weather conditions, the Mission Solar panel stands out as an exceptional choice for homeowners and businesses alike.

Durability You Can Trust

Moreover, the Mission Solar MSE390SR9S is built to withstand harsh environmental conditions. This panel features a robust design that can endure heavy winds and hail, ensuring long-term reliability. Its resilience is complemented by a product warranty of up to 25 years, giving users peace of mind regarding their solar investment. You'll find that this durability means fewer maintenance concerns, which saves time and money in the long run, so you can focus on generating clean energy for your needs.

Eco-Friendly Power Generation

Furthermore, choosing the Mission Solar MSE390SR9S is a step towards sustainability. This solar panel not only reduces your reliance on fossil fuels but also helps lower your carbon footprint. By utilizing renewable energy, you're contributing to a healthier planet for future generations. This shift toward solar energy is becoming increasingly essential as more people seek green solutions for their energy needs. So, investing in the Mission Solar panel aligns with global efforts for a sustainable future while also enhancing your energy independence.

Documents;

Data Sheet
