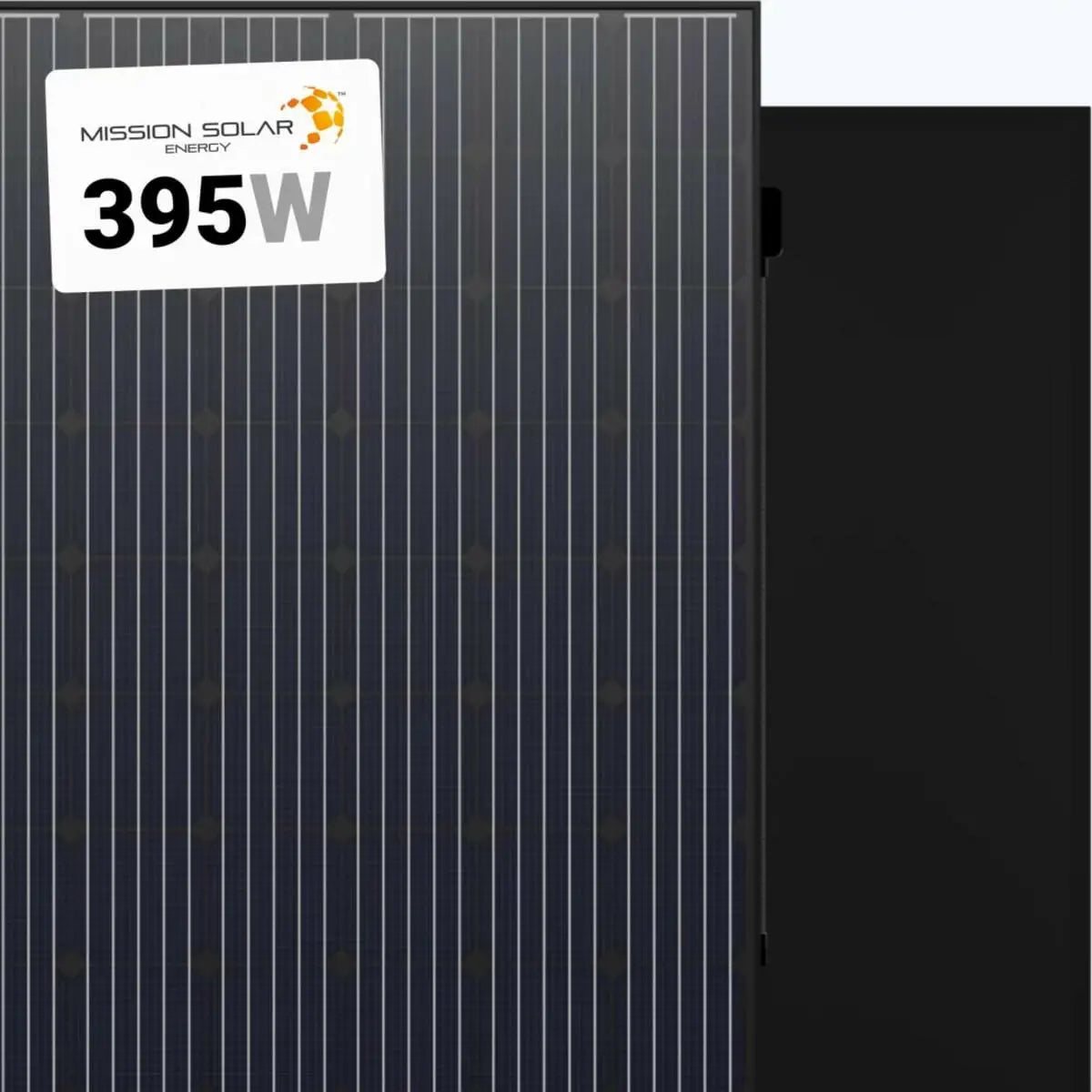

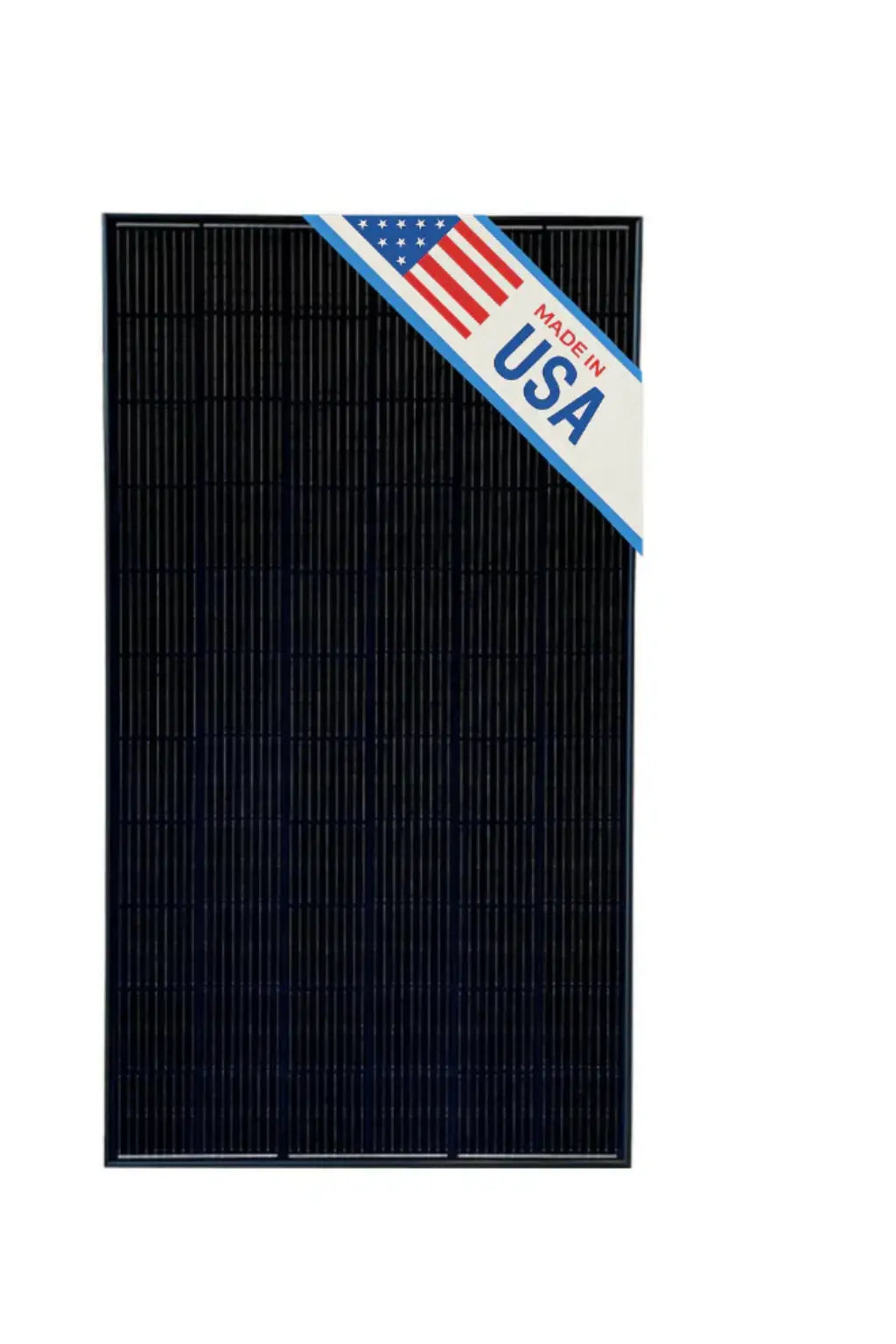

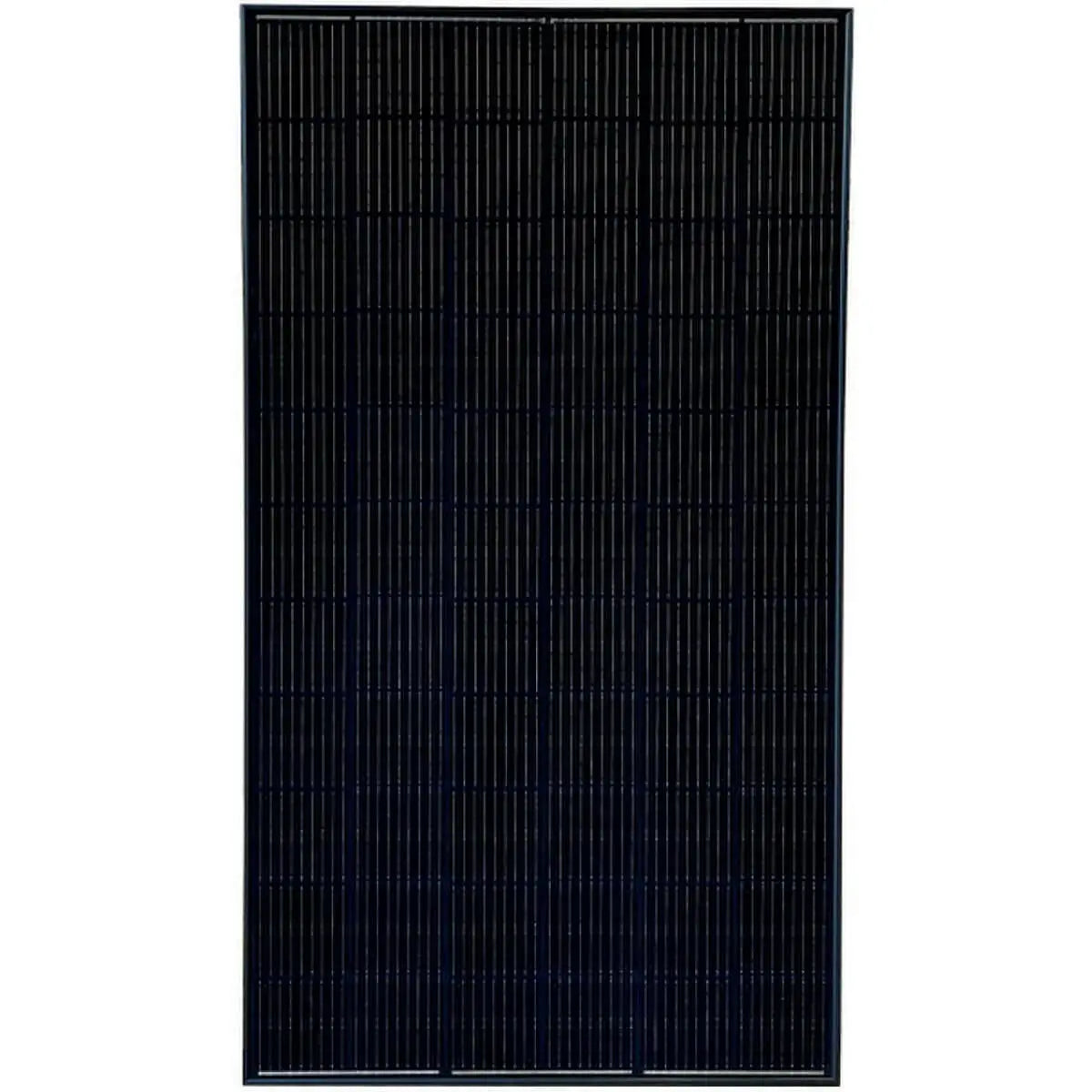

Mission Solar Mono PERC 395W 66 cell Black (SKU Part Number MSE395SX9R)

Enhance Your Energy Efficiency with Mission Solar

Among the newest offerings of Mission Solar, SX9R is part of the MSE 66 series. These panels use state-of-the-art technology to achieve high efficiency and dependability. This panel takes full advantage of the Passivated Emitter Rear Contact (PERC) technology that allows it to capture up to 12% more energy. All thanks to a reflective layer on the back. This design maximizes the number of photons absorbed by solar cells. Mission Solar employs full-sized solar cells for this model. The efficiency of this model reaches 19.7% - well above the market's average. The innovations made the appearance of the panel as impressive as the specs. A mere 1.57 in thick, this model is completely black with a smooth surface. This beauty doesn't compromise the quality or reliability of the panel. Mission Solar provides an industry-leading 25-year performance warranty and a 25-year product warranty. The MSE395SX9R 66-Cell MSE PERC Solar Panel also boasts advanced technology, including a 9 busbar and passivated emitter rear contact, which maximizes efficiency in all applications. The panels are also incredibly resilient, with the ability to withstand front loads of up to 5,400 Pa and back loads of up to 3,600 Pa, tested to UL 61730.

Features

• Certified Reliability - Tested to UL1703 & IEC standards. PID Resistant
• Advanced technology - PERC and 9 busbar drive >18% module efficiency. Ideal for all applications
• Extreme weather resilience - 5631 Pa snow load (117 psf) tested load to UL1703. 185 mph wind rating
• BAA compliant - Buy american act and american recovery & reinvestment act
• High-power output - the MSE PERC 66 has the highest power output in its class. It is well suited for residential, commercial, and utility applications. It features perc and nine busbar advanced technology driving 19.35% module efficiency. The mse perc 66 is buy american act and american recovery and reinvestment act compliant
• Gain more with PERC technology - The PERC 66 features PERC technology which allows for more energy generation than traditional solar panels. With PERC, a "passivation layer" is added to the rear of the cell so light can be better captured throughout the cell. This layer also has reflective properties that allows light to bounce off the passivation layer and elsewhere into the cell. This produces additional energy (see illustration). The more power a module produces, the more money you save
• Long-term reliability - our modules offer an industry leading 25-year performance warranty independently backed by powerguard's third-party insurance and a 12-year product warranty. Mission solar energy is dedicated to quality, safety and reliability to ensure you get the very best

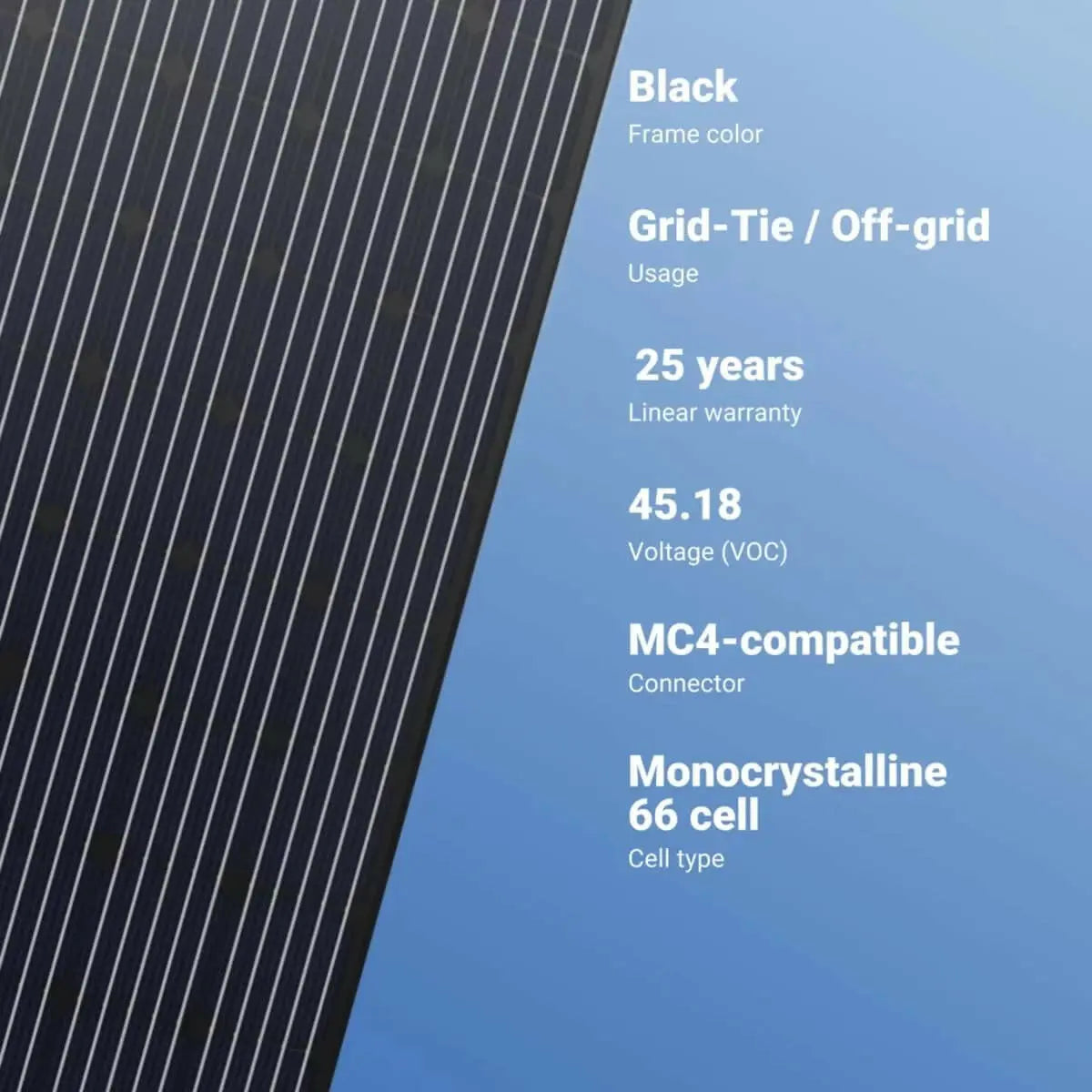

Specifications

• Maximum Power (Pmax): 395 W
• Voltage at Maximum Power: 36.99 V
• Current at Maximum Power: 10.68 A
• Open-Circuit Voltage (VOC): 45.18 V
• Short-Circuit Current (ISC): 11.24 A
• Panel Efficiency: 19.7%
• Power Tolerance: + 3%
• Operating Temperature: -40 to 85 deg C
• Temperature Coefficient:
  • Pmax: -0.367%/deg C
  • Voc: -0.259%/deg C
  • Isc: 0.033%/deg C
• Maximum System Voltage (Vmax): 1000 V
• Fuse Rating: 20 A

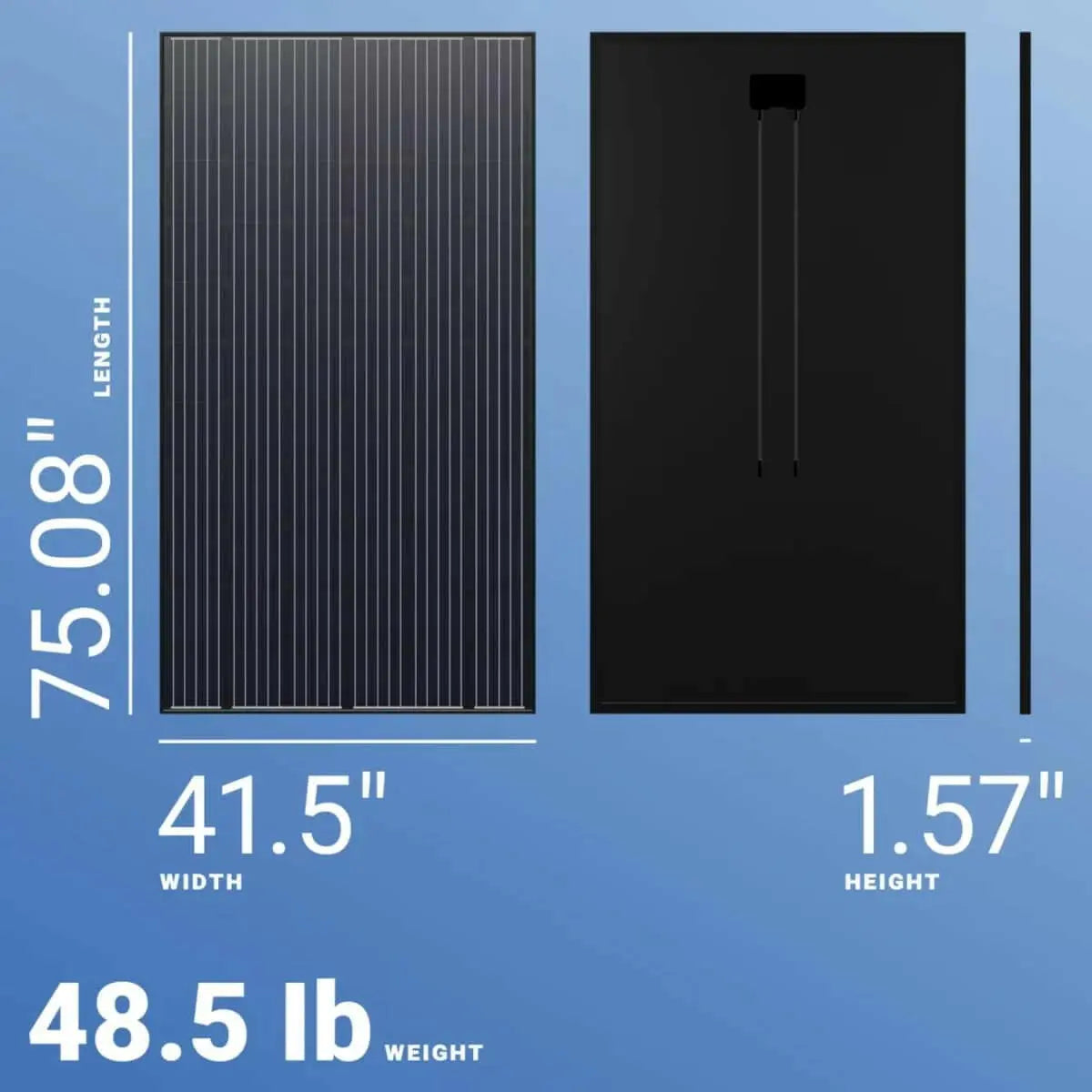

• Dimensions: 1907 mm Height x 1054 mm Width x 40 mm Depth
• Cell Type: P-type Mono-Crystalline Silicon
• Cell Orientation: 66
• Glass Type: Anti-reflection Coating, Tempered
• Glass Thickness: 3.2 mm
• Encapsulant Type: EVA
• Frame Type: Anodized Aluminum
• Junction Box Diodes: 3
• Junction Box Protection Class: IP67
• Connector Type: MC4
• Cable Cross Section Size: 4 mm2
• Cable Length: 1200 mm
• Color: Black
• Standards: UL, TUV, CEC, cuLus Listed
• Weight: 48.5 lb


Documents

• Specification Sheet

High Performance and Efficiency

The Mission Solar Mono PERC 395W solar panel is designed to offer high efficiency and reliability. With its advanced PERC (Passivated Emitter Rear Cell) technology, this panel captures more sunlight, which leads to improved energy production. So, whether you are powering your home or business, you'll benefit from reduced electricity costs and a lower carbon footprint.

Durable and Attractive Design

This solar panel not only boasts impressive performance but also features a sleek black design that enhances its aesthetic appeal. Made with high-quality materials, the Mission Solar panel is built to withstand harsh weather conditions, ensuring longevity and dependability. Moreover, its 66-cell configuration allows for excellent space utilization, making it suitable for various installation types.

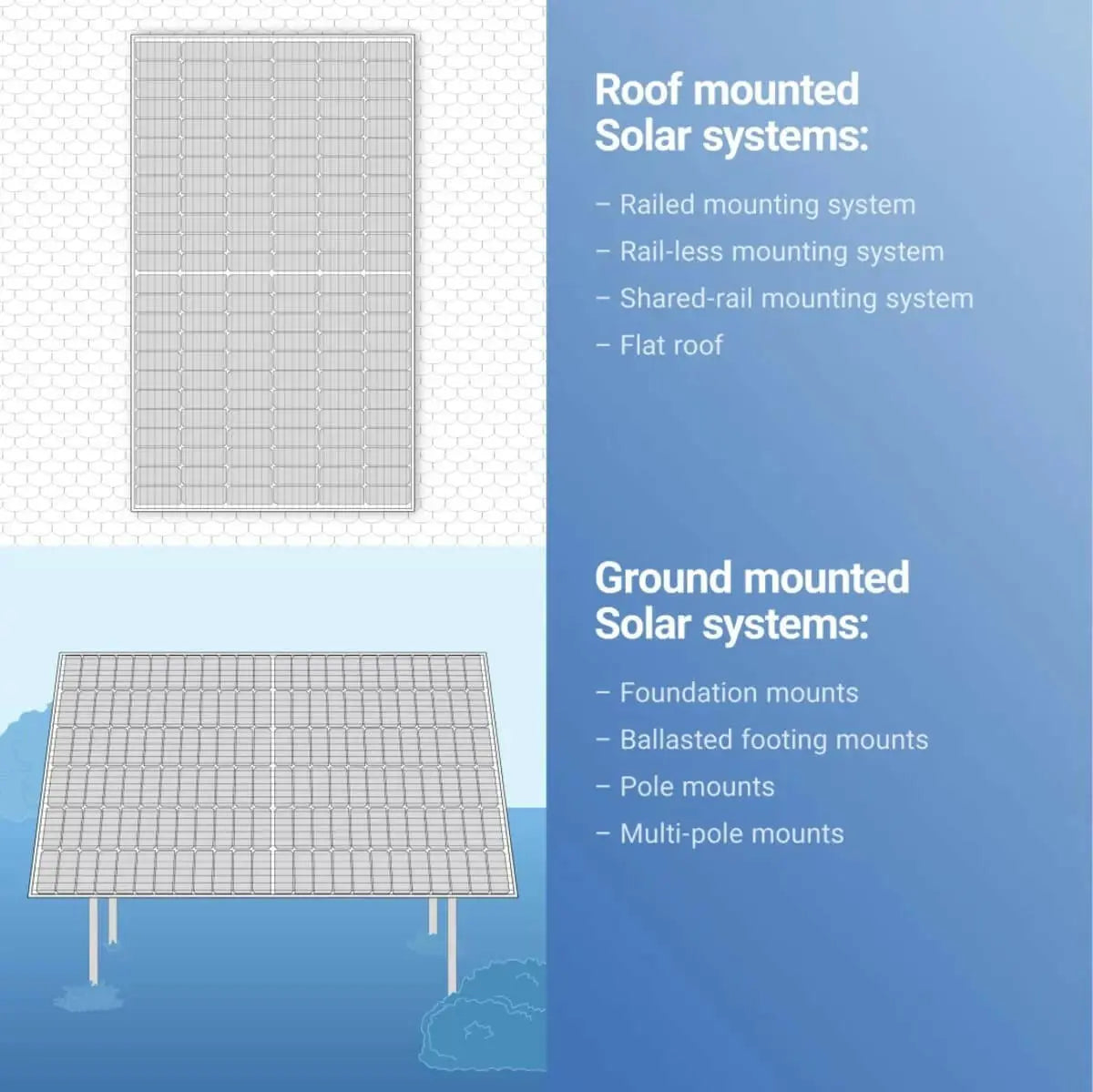

Easy Installation and Compatibility

The Mission Solar Mono PERC 395W panel is designed for easy installation, making it an ideal choice for both residential and commercial applications. Its compatibility with most mounting systems and inverters means you can integrate it seamlessly into your existing solar setup. Because of its user-friendly design and robust performance, it stands out in the market, catering to diverse energy needs.
