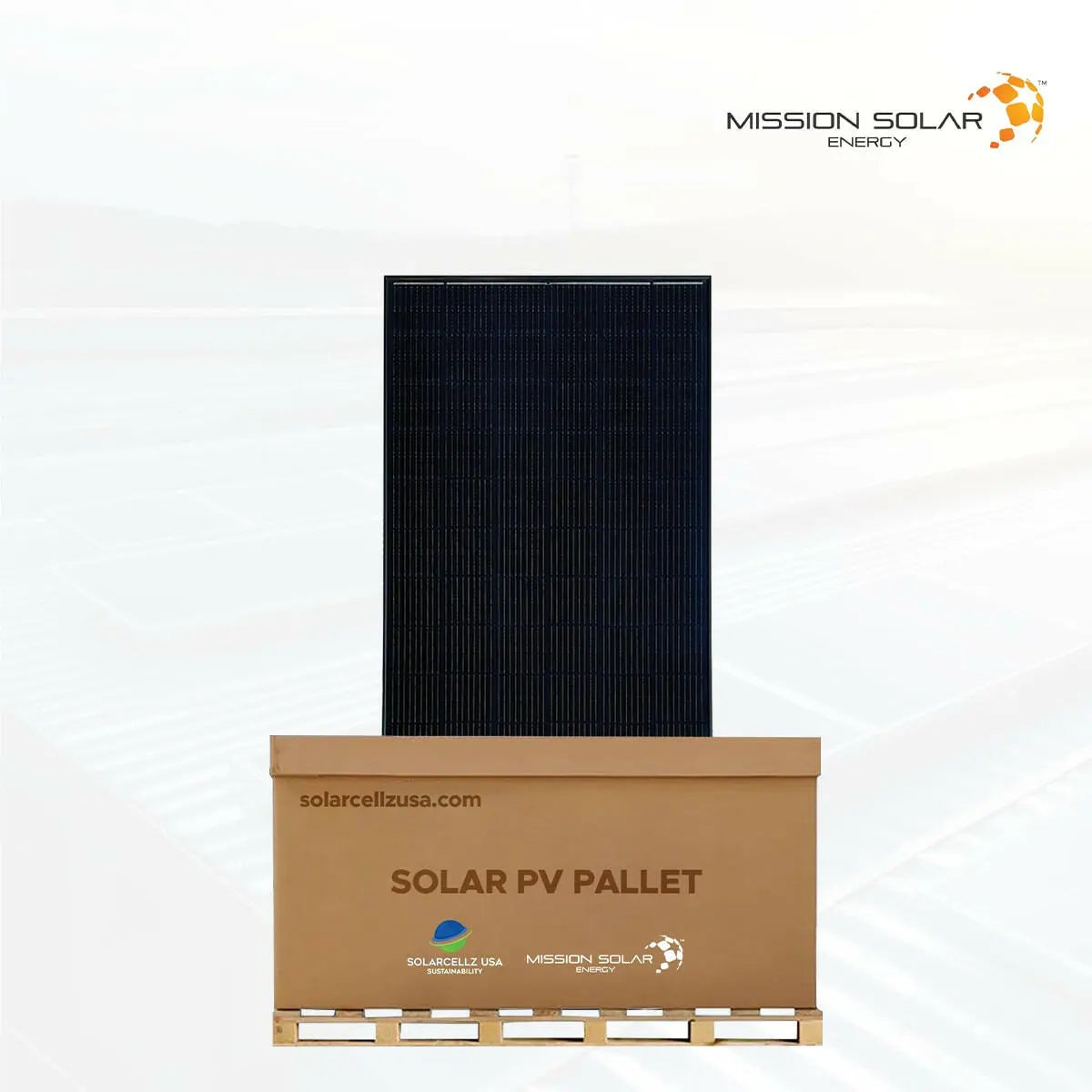

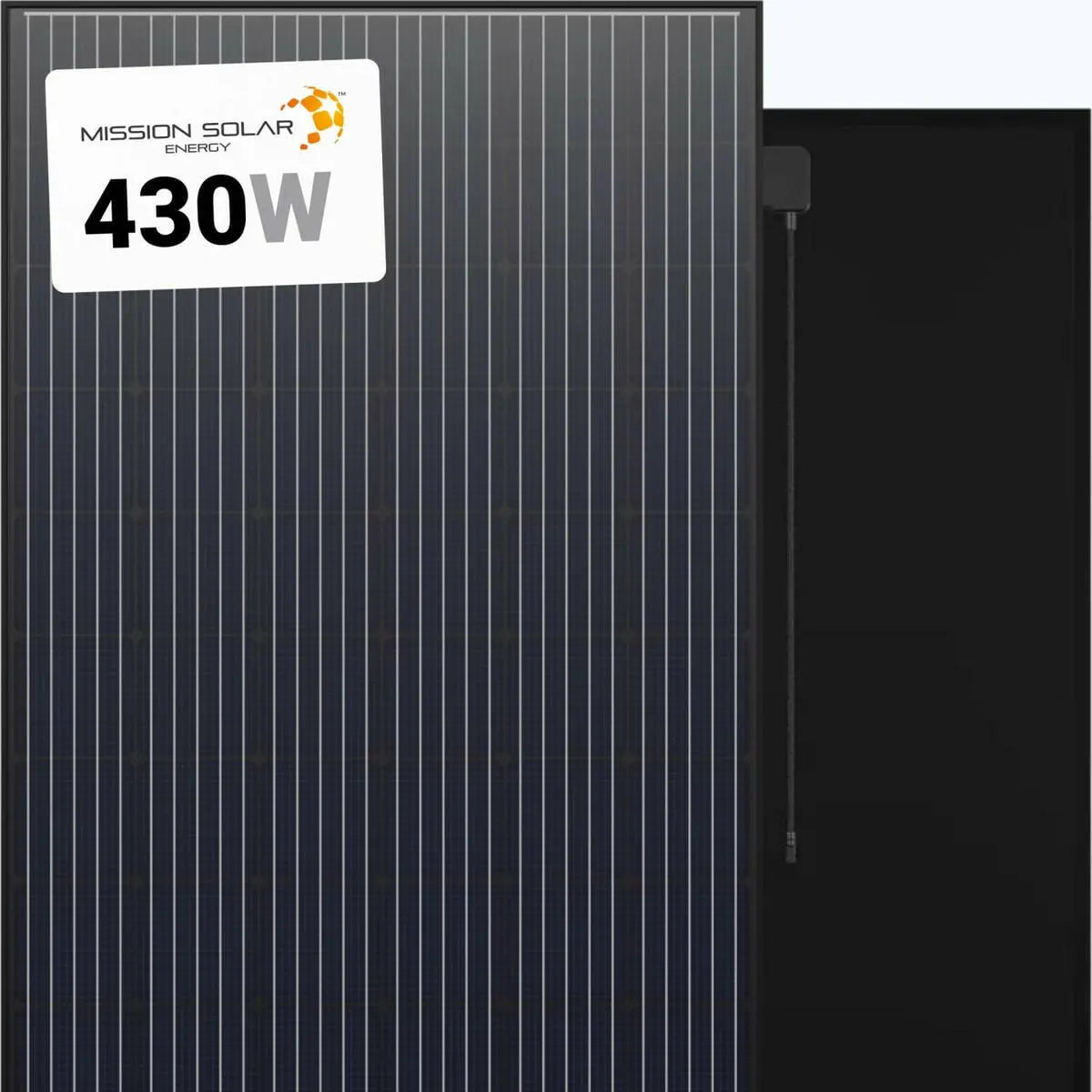

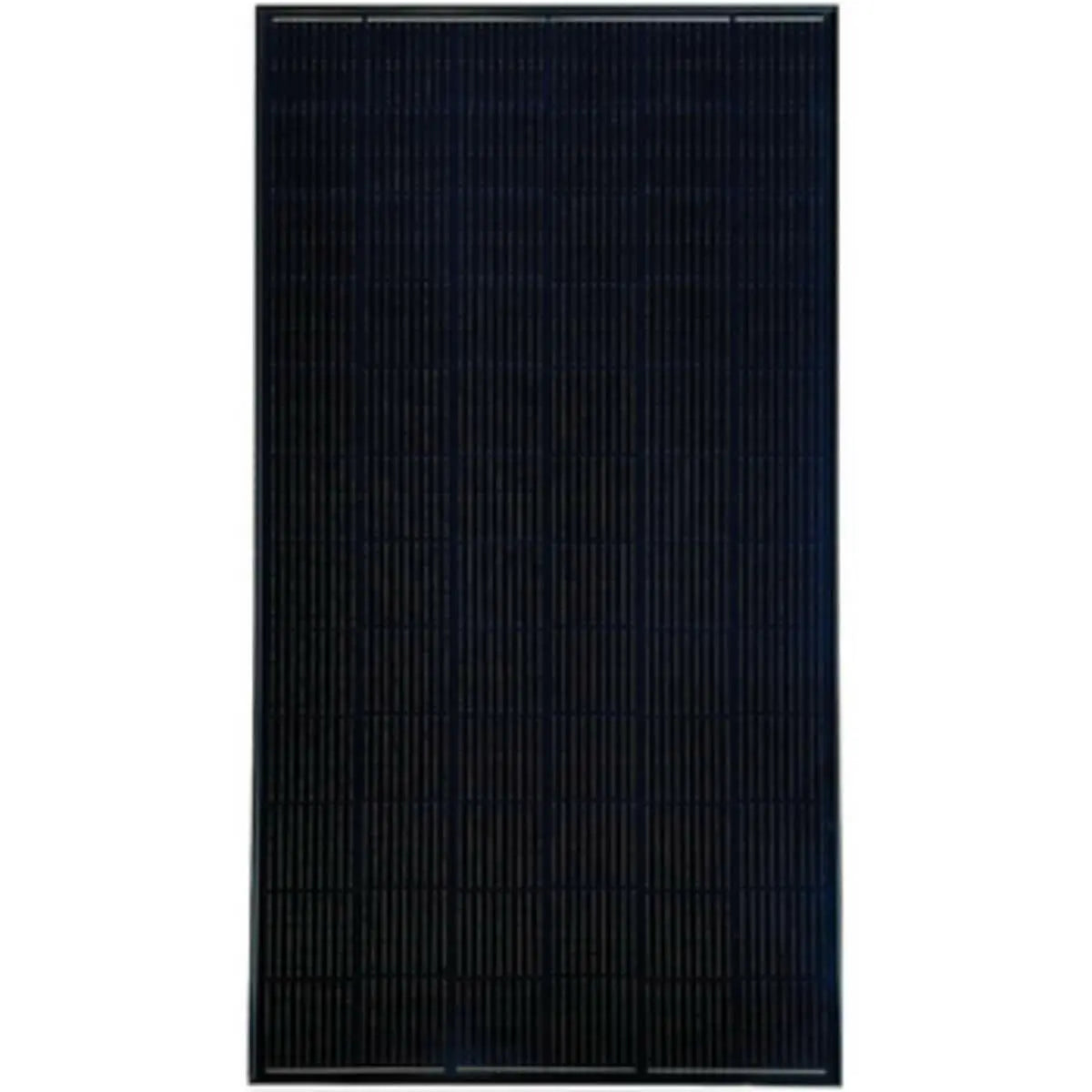

Mission Solar 1500 Vdc 430 W Mono Solar Module

Mission Solar Energy is headquartered in San Antonio, Texas where we manufacture our modules. We produce American, high-quality solar modules ensuring the highest-in-class power output and best-in-class reliability. Our product line is tailored for residential, commercial and utility applications. Every Mission Solar Energy solar module is certified and surpasses industry standard regulations, proving excellent performance over the long term. Introducing Pallet Mission Solar 430 W, PERC 72-Cell Module, a highly efficient, long lasting, and reliable photovoltaic product designed to give you superior performance over time. Ideal for residential and commercial applications, this module is made with high-quality materials like a 40mm frame and black backsheet and uses 72-Cell monocrystalline technology for maximum efficiency and reduced watt per module. Equipped with 1500 volts max voltage and MC4 connectors, the Pallet Mission Solar 430 W, PERC 72-Cell Module offers maximum stability and has a 25 Year Manufacturer Warranty. Performance is guaranteed with a 25-year degradation rate up to 0.58% annually and 84.08% capacity guaranteed in year 25. Experience the superior quality and reliability of Pallet Mission Solar 430 W, PERC 72-Cell Module. With improved efficiency, long lasting performance and dependable warranty, you can trust your photovoltaic system and make the sustainable choice for the environment.

Features

• 9 Busbar
• Passivated Emitter Rear Contact
• deal for all applications
• Up to 5, 400Pa front load & 3, 600Pa back load
• Tested load to UL 61730
• 40mm frame


Specifications

• Size: 2086 mm x 1054 mm x 40 mm
• Power Current: 10.86 A
• Power Rating: 430 W
• Open Circuit Voltage: 49.26 V
• Short Circuit Current: 11.47 A
• Voltage Rating: 1500 Vdc
• Cell Type: Mono
• Number of Cells: 72
• Operating Temperature: -40 to 185 deg F
• Efficiency: 19.6%
• Connection Type: MC4
• Fuse Amperage Rating: 20 A
• Cable Length: 1.4 m
• Tolerance: -0/+3


Documents

• Specification Sheet
