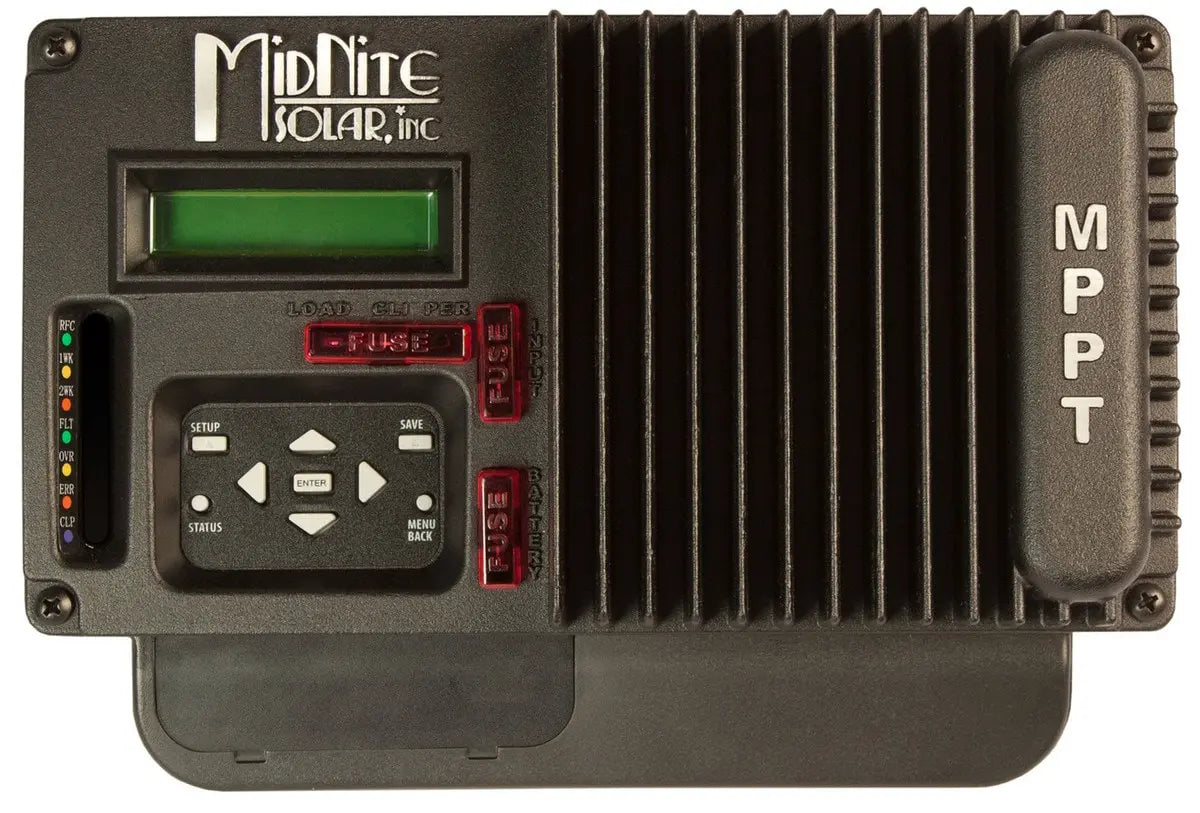

MidNite Solar MNKID-B The Kid MPPT Charge Controller

The MidNite KID 30 A MPPT charge controllers are suitable for small to medium-sized renewable energy systems. The KID works with 12, 24, 36, and 48 VDC battery systems and has a 150 VDC operating limit; but is not damaged with DC voltages as high as 162 VDC, due to MidNite's HyperVOC circuitry. The KID has a three-LED bar graph, showing battery-charge status, and a keypad to access extensive menu items and set-points. The MidNite KID 30 A MPPT charge controllers are suitable for small to medium-sized renewable energy systems. The KID works with 12, 24, 36, and 48 VDC battery systems and has a 150 VDC operating limit; but is not damaged with DC voltages as high as 162 VDC, due to MidNite's HyperVOC circuitry. The KID has a three-LED bar graph, showing battery-charge status, and a keypad to access extensive menu items and set-points. The KID controllers include a load control with load low-voltage disconnect (LVD). This can also be programmed as a lighting controller with dusk-to-dawn or various other on and off times. There is also a programmable AUX relay. Sealed electronics and passive cooling (no fans) make it ideal for use in harsh environments. There are front-panel breakers for input, battery, and load. The controller's operating temperature range is -40 ºC to +50 ºC but the controller will automatically de-rate at temperatures above 25 ºC. Add the battery-temperature sensor (BTS) to these models.

Features

• Charges lithium, flooded lead acid, AGM and virtually any other chemistry
• Now includes AGS (Auto Generator Start)
• MPPT tracking
• Type 1 environmental rating
• True paralleling - Inputs and Outputs for two KIDs
• Up to 150V input
• MidNite's exclusive HyperVOC extends the input voltage beyond 150 VDC for cold climates (Note this is a non operational safety zone)
• 12V, 24V, 36V, 48V battery output
• Lighting Controller: dusk-dawn, hourly, day, night settings
• Up to 30 amps battery output with low input voltage based off of PV configuration
• No fan
• Reverse polarity protected
• Battery Temp Sensor (MNBTS) standard with marine version only
• Front panel exchangeable fuses for battery, input and load/clipper
• 3 LED bar graph for battery status at a glance
• Keypad for access to extensive menu items and set points
• Includes wall mount adapter (Boat mount bracket included on marine versions)
• Sealed for harsh environments
• Built in Arlington, WA USA


Specifications

• Type: Kid MPPT
• Nominal Battery Voltage: 12-48 V
• Battery Voltage: 9-64 V
• Enclosure Rating: Indoor IP52 Type 1 (IP53 with Drip Shield)
• Display Type: LCD (Plus Status LEDs)
• Operating Temperature: -40 to 50°C (Controller Auto Derate above +25°C)
• Conduit Knockouts: 2
• Type of Charging/Charging Regulation: Bulk, Absorb, Float, Equalization
• Maximum Output Current: 30 A
• PV Open-Circuit Voltage (VOC): 150 V + HyperVOC
• Casing: Black
• Technology: Maximum Power Point Tracking (MPPT)
• Communication Method: RS232 (Openly Published Protocols) and USB
• Network Cables: Standard 4 Conductor Phone Cable
• Maximum Open-Circuit Voltage (VOC): 162 V
• Battery Type: Gel, Flooded, AGM, Calcium SMF, Lithium BMS, and Custom
• Equalization Charging: Adjustable Voltage and Duration
• Battery Temperature Compensation: Automatic with BTS Installed, Adjustable mV per °C per 2 V Cell
• Programmable Auxiliary Control Output: Auxiliary Control Output (1 I/O Communication Port)
• Operating Input Voltage: 150 VDC
• Load Terminal: 30 A Configurable
• True Paralleling: Inputs & Outputs Between 2 Units with Smart Active Current Sharing
• HyperVOC: Extended VOC Range for Colder Climates & Weather Conditions
• Auto Gen-Start: Yes
• Lighting Controller: Customizable via Keypad (Dawn, Daylight, Dusk & Night)
• Dimensions: 9.25 x 5 x 5.31 in (MNKID-B Dimensions)
• Standards: UL Listed, CSA Certified
• Weight: 6 lb
• Warranty: 2 Years


Documents

• Specification Sheet
• Technical Drawing

• Instruction/Installation Manual
