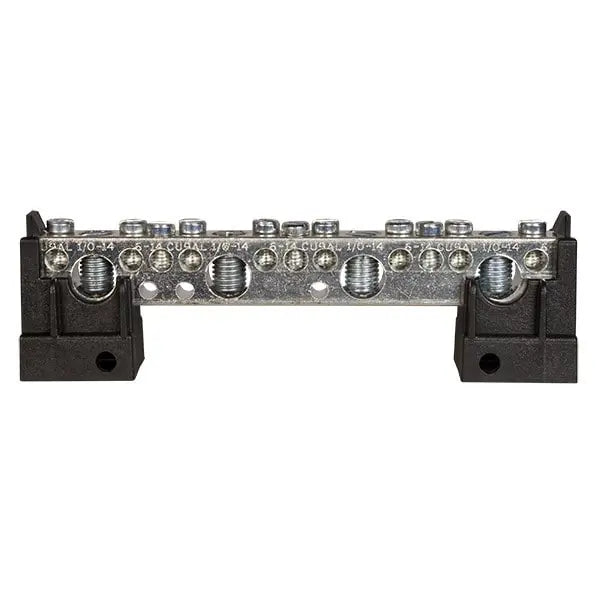

MidNite Solar Four 1/0 & eleven #6 useable wire slots. 180 amps - black (SKU Part Number MNTBB-B)

These UL-listed busbars can be used in the Mini-DC Disconnect above. Each MNT bar has colored insulation, four 0 AWG and eleven 6 AWG usable wire slots with 10-32 UNF screws, and is 4.63" long. The MNS is a shorter version, useful for PV + input on the narrow OB E-Panel, Big Baby Box, Quad box and for a separate PV busbar for charge controllers. The MNS has four 6 AWG and two 0 AWG wire slots. The MNG ground busbar is 3.45" long with green screws and has two 0 AWG and seven 6 AWG wire slots with mounting screws. The MNIBIGBUSBAR is a pair for positive and negative with five battery connections and six small wires. The MNSHUNT has four studs besides the shunt connection.

Features

• Four 1/0 & eleven #6 useable wire slots. 180 amps. Comes with two lengths of 10-32 screws. Both copper and aluminum wire is acceptable for use with these busbars. Listed for US and Canada


Specifications

• Series/Model: MNTBB
• Wire Size: (4) 1/0 AWG, (11) 6 AWG
• Rated Current Rating: 180 A
• Includes: Two Lengths of 10-32 Screws
• Color: White
• Environmental Rating: Type 1 (Indoor)
• Material: Tin Plated Aluminum
• Standards: UL Listed
• Weight: 1 lb
• Warranty: 5 Years


Documents

• Specification Sheet
