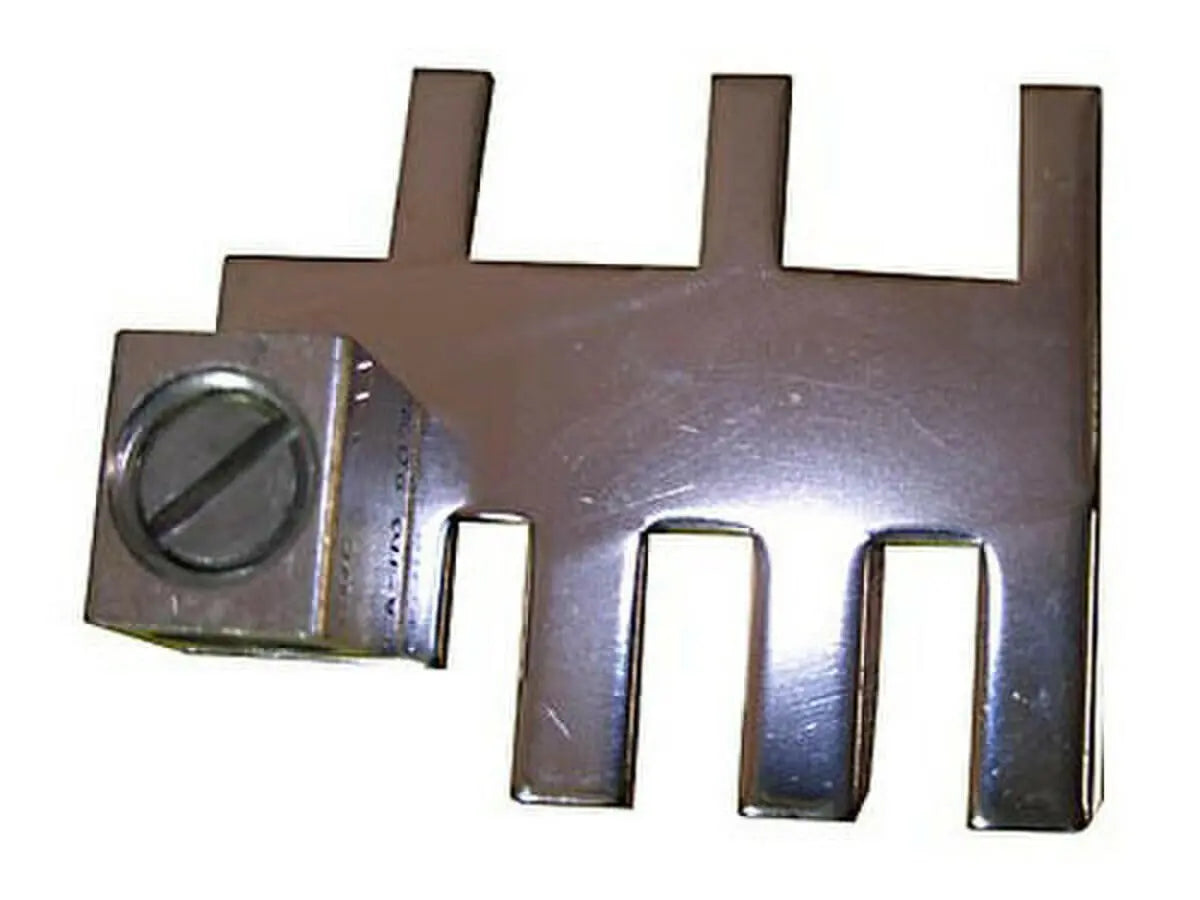

MidNite Solar Copper Bus Bar

This MidNite Solar MNPV3 Busbar is a 0.093 in thick copper bus that has three fingers spaced at 1/2 in (13 mm) intervals. One box lug is provided to accommodate #14-1/0 AWG wire. The MidNite Solar MNPV3 busbar (053-00101) is 0.093 in thick copper bus has three fingers spaced at 1/2 in (13 mm) intervals one box lug is provided to accommodate 14-1/0 AWG wire. The MNPV6-BREAKER-BB busbar (053-00102) has six fingers spaced at 1/2 in (13 mm) intervals with two box lugs provided to accommodate 14-1/0 AWG wire and the MNPV6 fuse holder busbar is 0.063 in thick copper bus has four fingers spaced at 3/4 in (19 mm) intervals and one box lug is provided that accommodates 14-1/0 AWG wire. MNPV6-250 BUSBAR is a 1/8 in thick tin plated copper accommodates up to three 300VDC MidNite circuit breakers. The 300 V circuit breakers have input and output connections on the top surface. These busbars are not for use with 150 VDC breakers or touch safe fuse holders. Current rating 168 A. Comes with a 2/0 box lug and hardware.

Features

• 3 fingers spaced at 13mm intervals
• Single box lug


Specifications

• Size: 0.093 in Thickness
• Material: Copper
• Suitable For Use With: #14 - 1/0 AWG Wire
• Standards: UL Listed
• Weight: 1 lb
