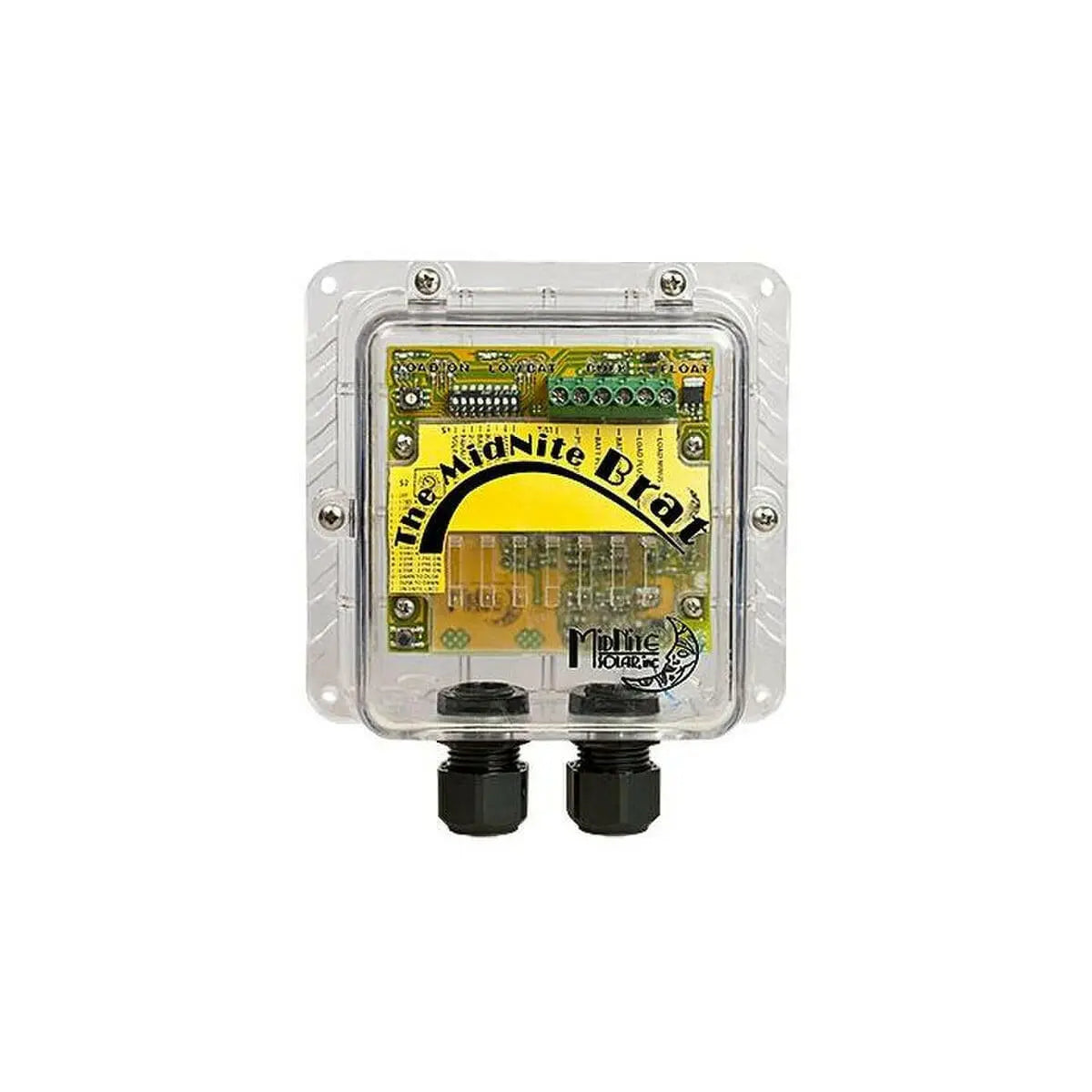

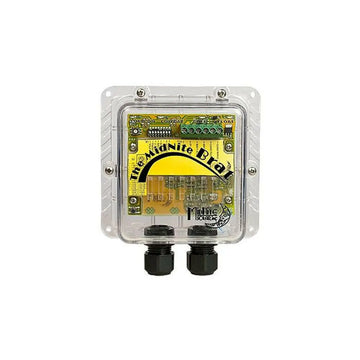

MidNite Solar BRAT 30A PWM Charge Controller (SKU Part Number MNBRAT)

The Brat is simply the most versatile solar controller in its class. The Brat is a finely-tuned solar PWM charger capable of providing up to 30 A of charging current, with class-leading lighting and load control features including one-of-a-kind Solar Clock. Rain-proof out of the box, and supporting dead-battery charging and low-voltage load disconnect, The Brat is perfect for outdoor, marine, RV, and unattended remote applications.

Features

• Selectable charging modes - 20 A charger with 10 A load control, 30 A charger without load control
• No relays, no fans, no external heat-sink type 3R enclosure
• P/V input voltage maximum - 60 V
• Led’s - Four led for bulk, float, load on and low battery. patterned blinking leds provide feedback about fault conditions
• Nominal battery voltage - 12 or 24 V - selectable
• 10 A maximum load circuit rating
• Load circuit - a unique feature of the brat is the load circuit. this versatile feature can be used for many purposes including running well pumps, electric fences, or billboard lights in remote areas
• Customizable lighting controller - the brat sports a highly customizable 16 position rotary switch lighting controller
• Compact design - we understand space can be a struggle in a boat or rv. with that in mind we kept the physical design of the brat compact without sacrificing performance
• Sealed for harsh environments - all brats are weather proof, sealed in a clear uv stabilized polycarbonate housing! (type 3R/IP55)
• Repairable - field repairable printed circuit board (by a qualified technician)
• Built in arlington, wa - usa


Specifications

• Input Voltage: Up to 60 VDC
• Nominal Battery Voltage: 12/24 V
• Maximum Charger Current: 30 A Charger Only, 20 A if the Load Controller Used
• Type of Charging/Charging Regulation: Bulk, Absorb, Float
• Equalization Charging: Automatic, 15/30 V, Two Hours Every 30 Days or no EQ
• Battery Temperature Compensation: Automatic - Ambient Temperature Detected Through Built-in Sensor
• Status Display: For LEDs for Bulk, Float, Load On & Low Battery/Low-Voltage Disconnect
• Load Circuit Rating: 10 A Max
• Operating Temperature: -40 to 60 deg C
• Enclosure Rating: IP55/NEMA 3R
• Warranty: 2 Years
• Dimensions: 6.75 in Length x 6 in Width x 2-3/8 in Depth
• Weight: 1 lb


Documents

• Specification Sheet
• Instruction/Installation Manual
