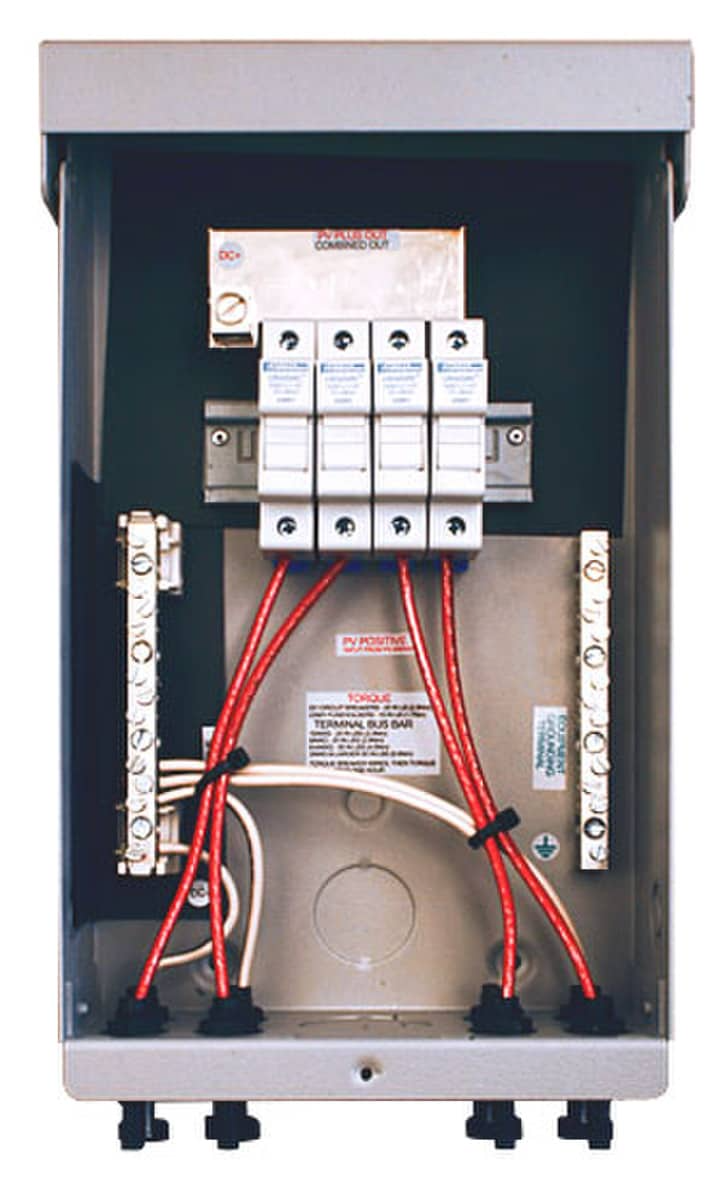

MidNite Solar 600 V 14-1/0 AWG Solar Array Pre-Wired PV Combiner

The Pre-Wired MNPV4 Combiner Is Rated For Outdoor Use. Designed For Combining High Voltage Strings Using 10mm X 38mm Fuses Up To 80 Amps Total. The Use Of Touch Safe Din Rail Mount Fuse Holders ( MNTS) And Fuses Allow Operation Up To 600 Volts. The MNPV4 Is Rated For Up To 80 Amps.

Features

• Type 1 environmental rating
• Fast, convenient hook up with industry standard connectors
• All aluminum powder coated housing that won't rust
• Flip up cover that can stay in the open position during installation
• Pv negative bus bar with #6 and 1/0 connections
• Chassis ground bus bar with #6 and 1/0 connections
• Standard din rail with (x) 30 amp touch safe fuse holders. 15 amp fuses included
• Tin plated copper bus bar that connect pv plus outputs
• Dead front cover (mnpv6df) snaps into place after wiring is complete for safety
• Connectors for PV in and PV out on bottom, additional knockouts on bottom and sides

Specifications

• Type: Solar Array, Pre-Wired
• Length: 13.5 in
• Width: 8 in
• Depth: 3.5 in
• Voltage Rating: 600 V
• Output Wire Range: 14-1/0 AWG
• Maximum Output Amperage: 80 A (Fused), 120 A (Breakers)
• Wire Range for String Input: 14-6 AWG
• Maximum Number of Output Circuits: 2
• Number of PV Strings: 4
• Mounting Type: Vertical Wall, Pole, or Sloped Roof
• Material: Aluminum
• Finish: Powder Coated
• Enclosure Rating/IP Rating: NEMA 3R

Documents

• Specification Sheet
