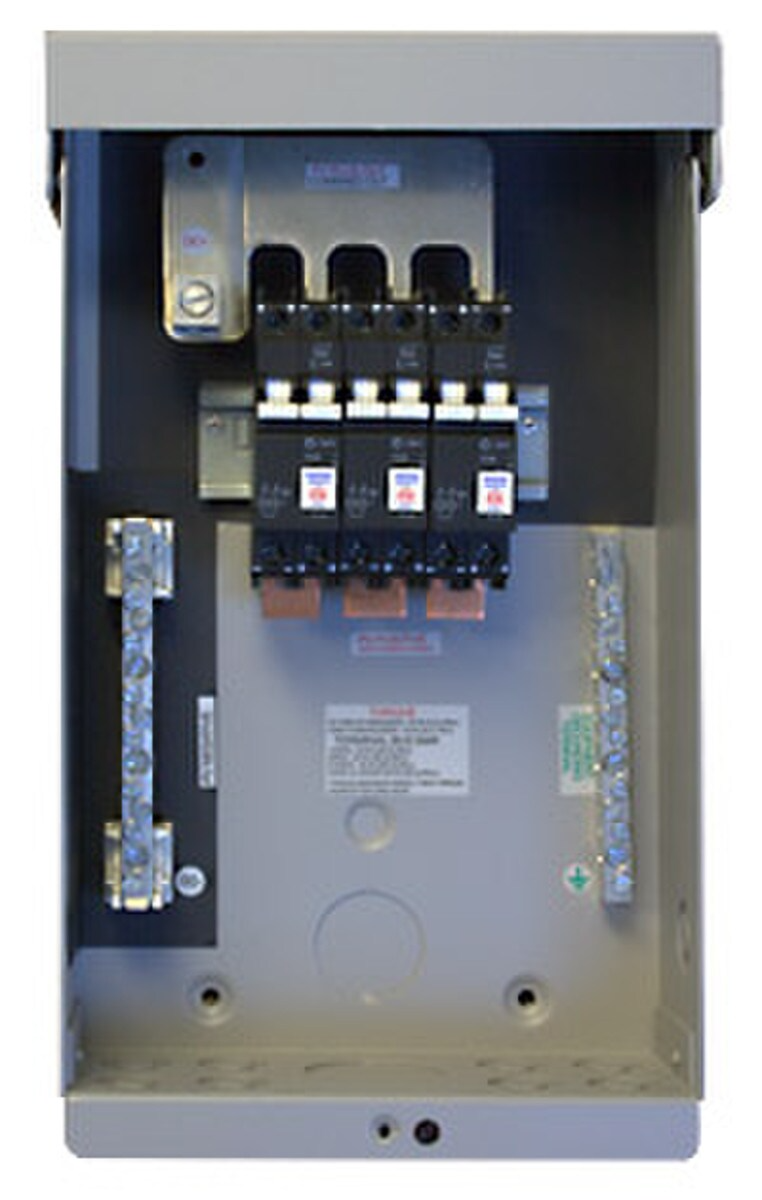

MidNite Solar 600 V 14-1/0 AWG PV Combiner

Explore the Features of the MidNite Solar PV Combiner

MidNite Solar MNPV6-250 600 V 14-1/0 AWG PV combiner.

Features

• Type 3R environmental rating
• Five-year limited warranty
• Listed by ETL for US & canada

Specifications

• Length: 13.5 in
• Width: 8 in
• Depth: 3.5 in
• Voltage Rating: 600 V
• Output Wire Range: 14-1/0 AWG
• Maximum Output Amperage: 80 A (Fused), 120 A (Breakers)
• Wire Range for String Input: 14-6 AWG
• Maximum Number of Output Circuits: 1
• Number of PV Strings: 3
• Mounting Type: Vertical Wall, Pole, or Sloped Roof
• Material: Aluminum
• Finish: Powder Coated
• Enclosure Rating/IP Rating: NEMA 3R

Documents

• Specification Sheet

Durable Design for Reliable Solar Connections

The MidNite Solar PV Combiner is engineered with durability and efficiency in mind, supporting 600 V solar photovoltaic (PV) systems. Its design accommodates wire gauges from 14 to 1/0 AWG, making it suitable for various solar panel setups. This robust box offers secure and organized connections that protect your solar arrays from environmental wear and electrical issues. The quality construction ensures longevity and reduced maintenance, bringing peace of mind to solar installers and system owners seeking reliable performance in harsh conditions.

Efficient Circuit Management and Safety Features

This MidNite Solar PV Combiner provides effective circuit management by housing multiple string inputs into a single output. Equipped with high-quality breakers and connectors, it safeguards your solar PV system against overloads and electrical faults. The integrated design simplifies system wiring and enhances system safety, preventing potential issues before they arise. These safety measures not only protect equipment but also improve overall system uptime and energy production efficiencies.

Easy Installation and Versatility in Solar Configurations

Installation of the MidNite Solar PV Combiner is straightforward and supported by clear mounting options, making it suitable for both residential and commercial solar projects. Its compatibility with various solar panel arrays and wire sizes (14 to 1/0 AWG) adds flexibility to system design. This versatility allows solar professionals to customize their setups without compromising safety or performance. Whether upgrading an existing system or designing a new one, this combiner box streamlines the process and ensures a neat, professional finish.
