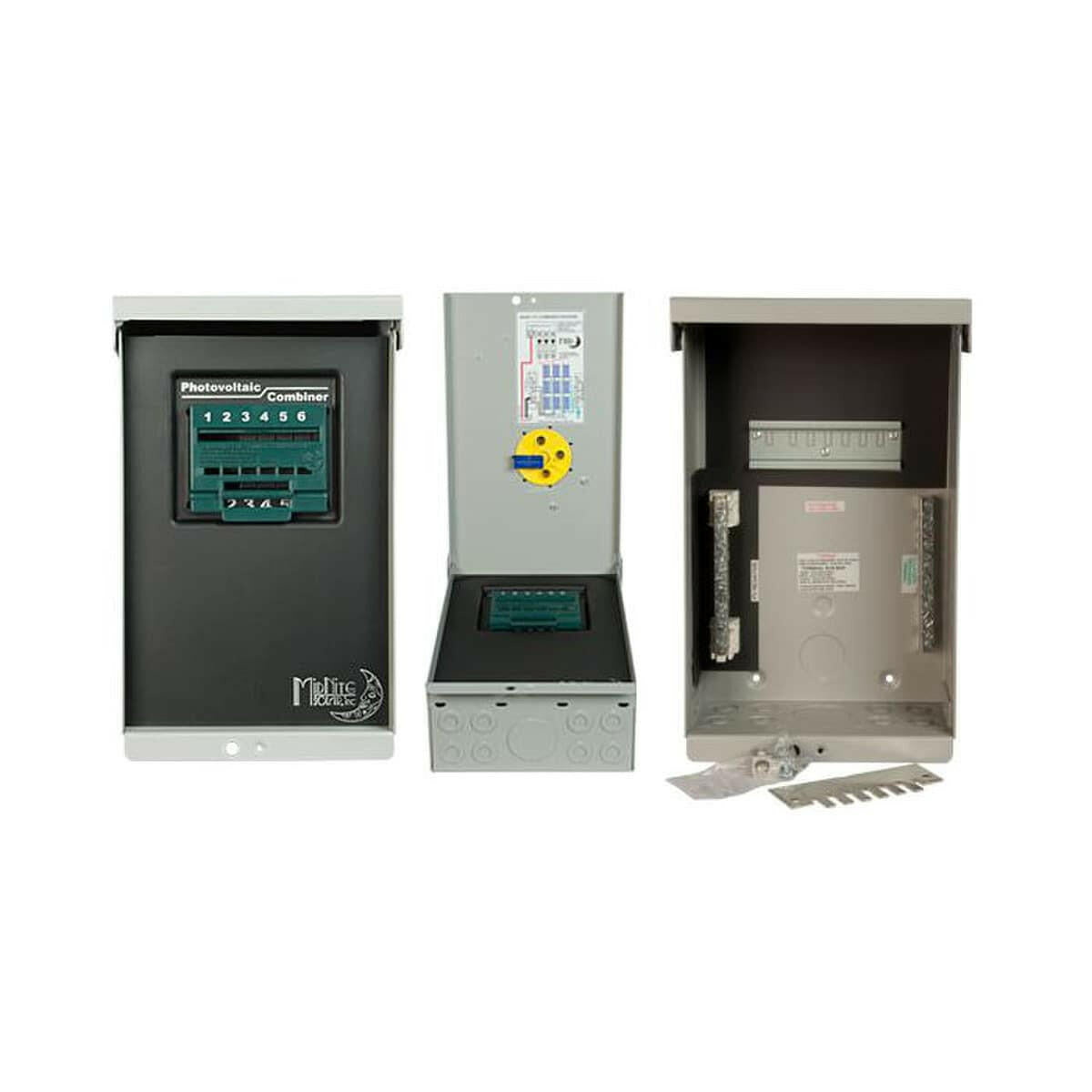

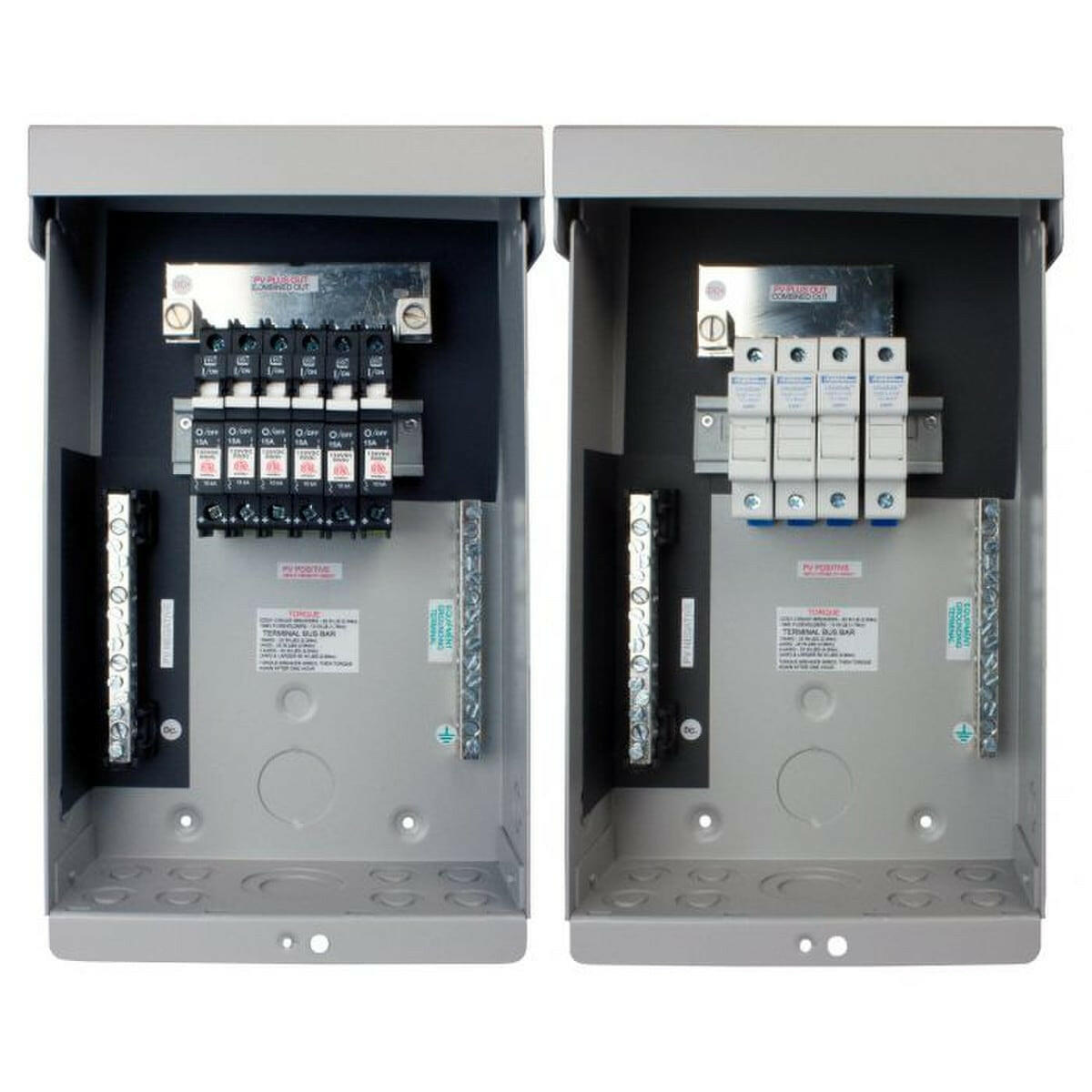

MidNite Solar 6 String DC Combiner with Disconnect (SKU Part Number MNPV6-Disco)

MidNite Solar offers a range of PV Combiners from our MNPV3 to the MNPV16. This range of combiners accommodates PV systems as small as a two string off grid cabin up to 16 strings for a 100 KW commercial grid tie inverter. The MNPV series of combiners are the result of 20 years of design and manufacturing experience in the renewable energy industry.

Features

• Aluminum rainproof type 3R enclosure
• Internal plastic injection molded dead front covers
• Knock outs that accept waterproof strain reliefs, conduit or panel mount MC type connectors
• Knock outs for lightning arrestors
• Uses 150 VDC & 300 VDC breakers or 600 VDC fuses depending on model number
• ETL listed to UL1741for use in the US and Canada
• Adaptable for two separate inverters or charge controllers on certain models

Specifications

• Enclosure Material: Aluminum
• Enclosure Rating: Type 3R
• Maximum VDC: 150 VDC
• Maximum Number of Strings: 6
• Maximum OCPD Rating: 63 A (PV Source Circuits)
• OCPD: CB 150 V (PV Source Circuits)
• Wire Range: 14-6 AWG (PV Source Circuits)
• Maximum Number of Output Strings: 2 (PV Output Circuits)
• Maximum Output Amps: 120 A (PV Output Circuits)
• Wire Range: 14-1/0 AWG (PV Output Circuits)
• Approved Mounting Angle: 90-14°
• Includes: 15-Position PV Negative Bus Bar, 15-Position Ground Bus Bar, 168 A Plus Bus Bar
• Suitable For Use With: 200 & 250 VDC Charge Controllers
• Color: Gray
• Standards: ETL for US & Canada, UL1741
• Warranty: 5 Years

Documents

• Specification Sheet
