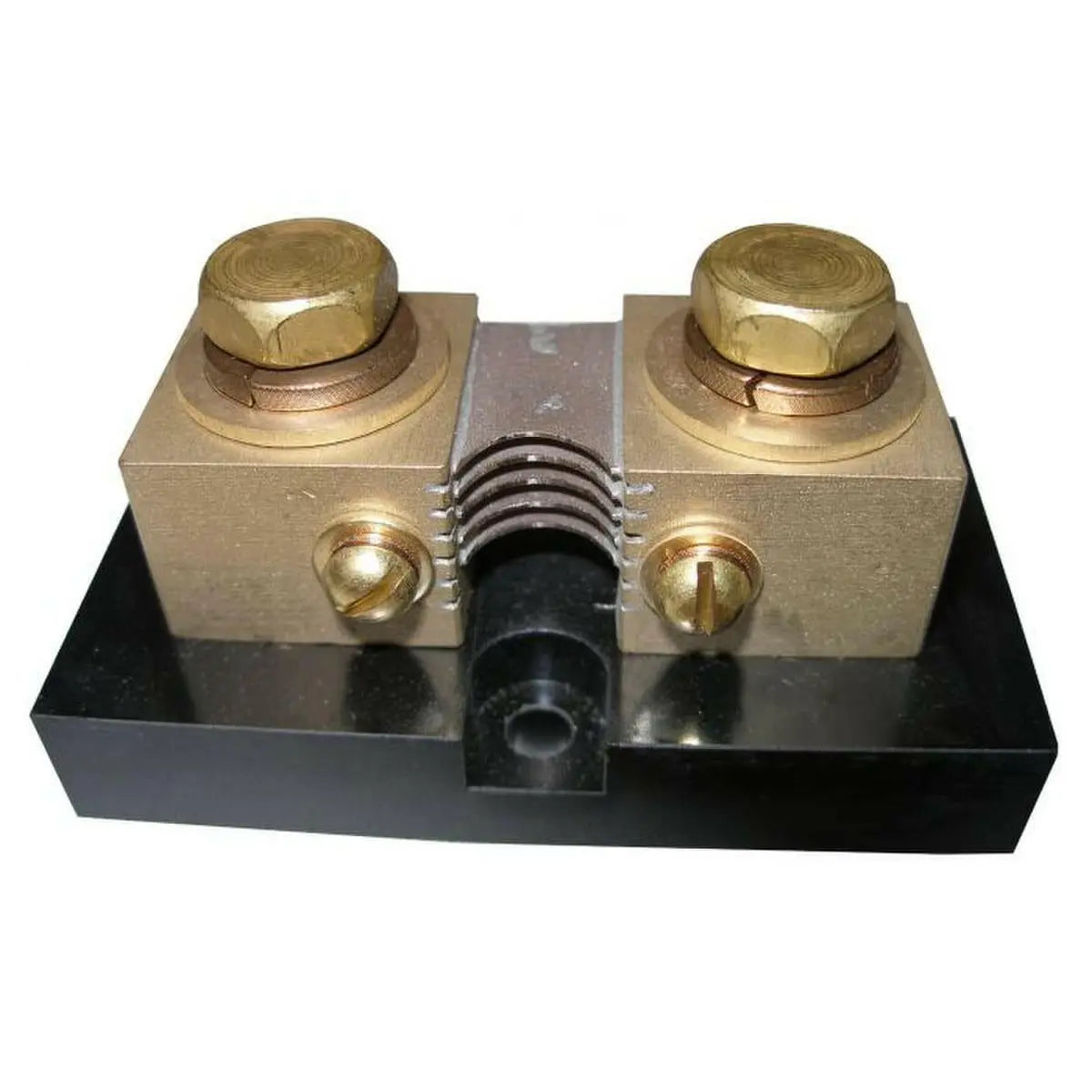

MidNite Solar 50mV/500amp Current shunt (SKU Part Number MNSHUNT)

Understanding the MidNite Solar shunt for Efficient Energy Monitoring

50 mV/500 A Current shunt - used primarily with Midnite Solar Whiz Bang Jr (MNWBJR) current sense module for use Classic and Kid charge controllers.

Features

• The shunts are calibrated with an accuracy of +/- 0.25%
• This is the Industry Standard shunt


Specifications

• Current Rating: 500 A
• Voltage Rating: 50 mV
• Accuracy: +/-0.25%
• Suitable For Use With: Classic & Kid Charge Controllers
• Includes: Taptite Mounting Screws, (2) 8-32 Tapped Holes on One End to Attach a Bus Bar
• Warranty: 5 Years
• data sheet
• warranty

Precision and Reliability of the MidNite Solar shunt

The MidNite Solar shunt offers a highly precise 50mV output at 500 amps, making it an essential component for accurate current measurement in solar power systems. Designed to handle high-current loads safely, this shunt ensures reliable readings that are critical for monitoring energy flow and maintaining system efficiency. Its robust construction supports longevity and consistent performance, aligning well with the demanding environments solar equipment often faces. For professionals aiming to optimize solar panel output and battery health, the MidNite Solar shunt provides a dependable solution that enhances system diagnostics and maintenance.

Integration and Compatibility with MidNite Solar Components

The MidNite Solar shunt integrates seamlessly with a variety of MidNite Solar charge controllers and monitoring devices. Its precise 50mV/500amp rating allows it to communicate accurate current data to compatible inverters and battery monitors. This compatibility ensures streamlined installation and operation within existing solar setups. The shunt's compact design also facilitates easy placement within battery banks without requiring extensive modifications. By using the MidNite Solar shunt, users benefit from a plug-and-play experience that maximizes system coherence and performance.

Benefits for Solar Energy Management and Safety

Utilizing the MidNite Solar shunt significantly improves energy management by providing exact current measurements critical for battery state-of-charge calculations and system load assessments. It enables timely detection of irregular current flow, preventing potential system faults or failures. The shunt supports safer operation by handling high amperage with minimal voltage drop and heat generation. This combination of safety and precision empowers users to monitor their solar installations effectively, ensuring long-term reliability and optimized energy usage in residential or commercial solar power systems.
