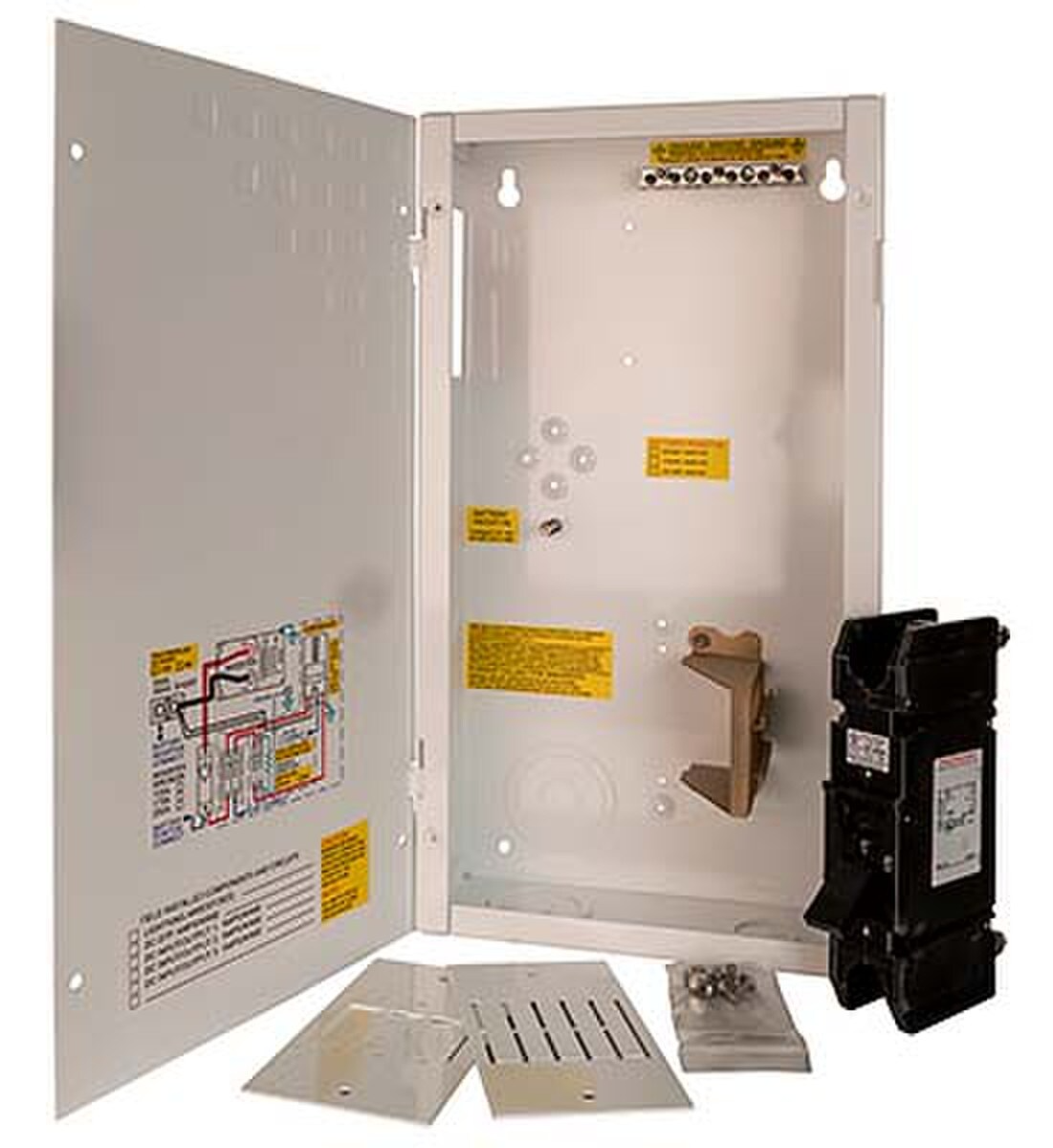

MidNite Solar 175A Mini DC Disconnect Box (SKU Part Number MNDC175)

The Mini-DC was designed to take into account many different types of renewable energy installations. These installation instructions will describe and show some of the more common possibilities.

Features

• Aluminum chassis. (no rust in the tropics or around salt water)
• Hinged door for easy access to electrical circuits
• Inverter breaker included (175 A)
• Din rail for DC circuits such as PV in, Chg Cntrl out, DC-GFP, DC loads, PV combiner
• Ground bus bar with 14 poles
• Six mounting spots for 500 amp, 50mV shunt
• Mounting spot for insulated bus bar (for PV negative connection point)
• Knock outs for inverter and battery cables, charge control mounting, DC & PV in & out
• 5/16 in diameter stud for battery negative tie point

Specifications

• Series/Model: MNDC
• Wire Size: 4/0 AWG
• Maximum DC Voltage: 300 VDC
• Material: Aluminum
• Finish: White Powder Coated
• Breaker Amperage: 175 A
• Breaker Voltage: 125 VDC
• Dimensions: 17 in Length x 9 in Width x 4 in Depth
• Environmental Rating: Type 1 (Indoor)
• Standards: ETL Listed For US & Canada
• Warranty: 5 Years

Documents

• Instruction/Installation Manual
