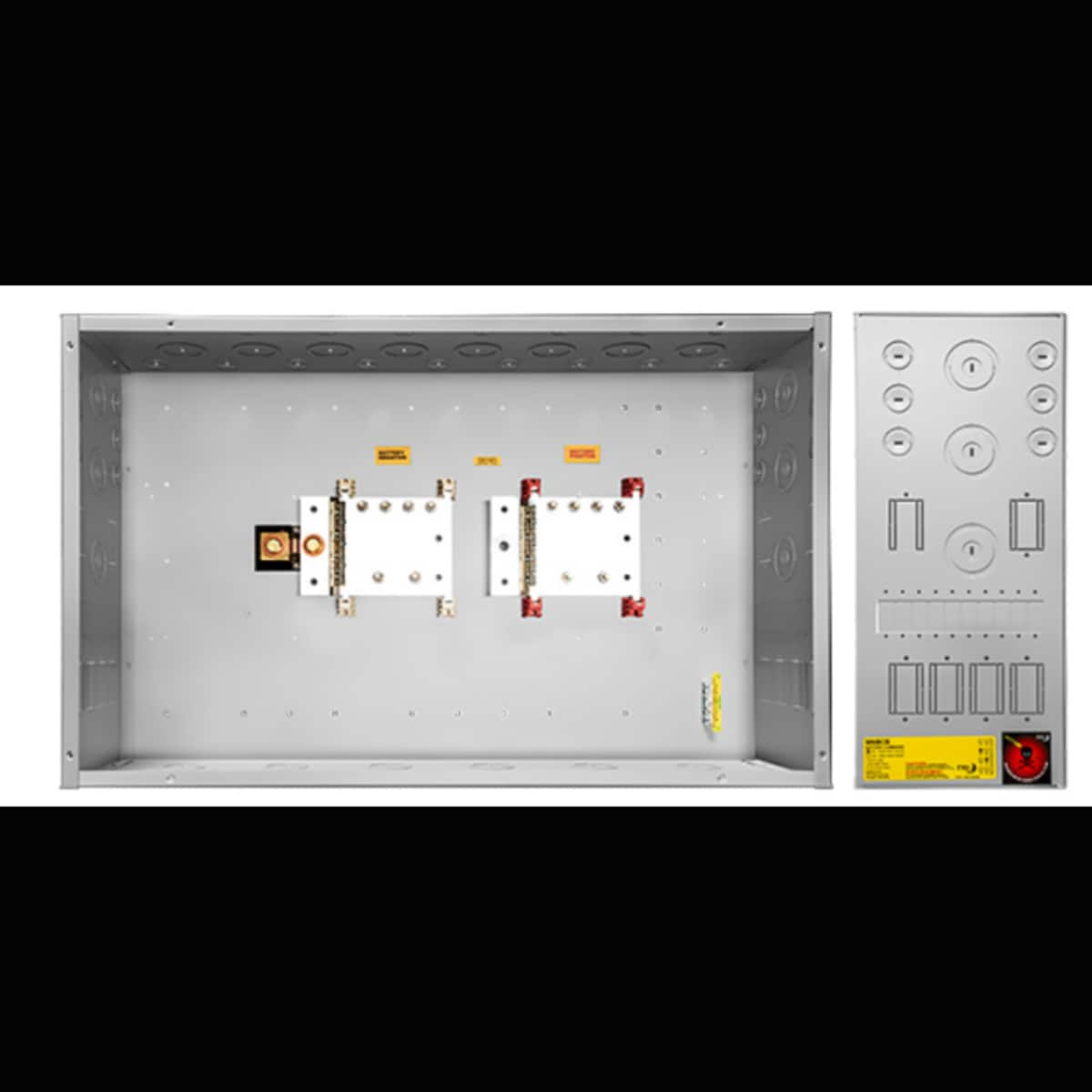

MidNite Solar 1000amp battery combiner box. Incl. 1000A 50mV shunt (SKU Part Number MNBCB 1000/50)

Midnite 1000 A battery combiner box includes a 1000 A positive and negative bus bar with 3/8 in studs. cables can be double lugged and the copper bus bar can be drilled for additional mounting locations. we recommend you use 3/8 in stainless bolts if you drill holes to attach more ring terminals. includes a 1000amp 50mv shunt with 1/2 inch bolt for customer connection (sma uses 50 mV shunt) 1000 A 100 mV shunt available see mnbcb-1000/100 (radian uses 100mv shunt) has locations for up to 12 of our mnedc battery breakers powder coated steel.

Features

• Made in USA


Specifications

• Enclosure Material: Aluminum
• Enclosure Rating: Type 1
• Maximum OCPD Rating Amps: 50 A
• Current Rating: 1000/2000 A
• Output Stud Size: 3/8 in
• Maximum AC Voltage: 277 VAC
• Maximum DC Voltage: 300 VDC
• Standards: ETL for US & Canada, UL1741
• Warranty: 5 Years
• Dimensions: 35-1/2 in Length x 22 in Width x 9-3/4 in Height

Documents

• Specification Sheet
