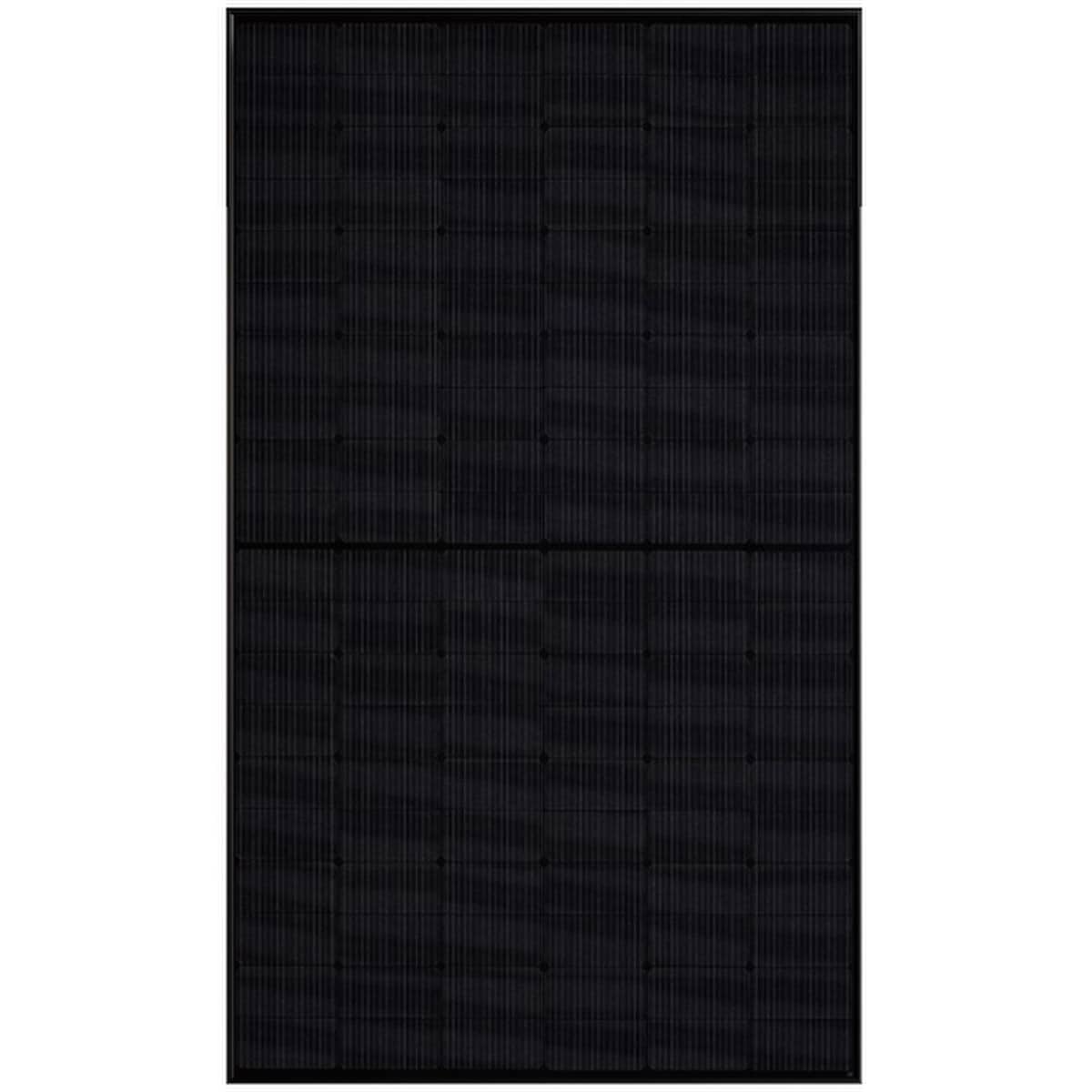

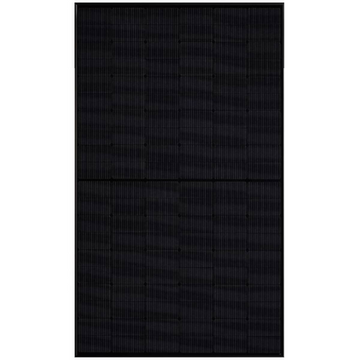

Meyer Burger 390 W Module with 120 HJT Cells, Black Frame, Black Backsheet. Type 2 Module

Explore the advanced Meyer Burger 390W solar module for efficient energy

For maximum yields combined with outstanding design: Heterojunction high-performance solar module with SmartWire Connection Technology (SWCTTM).

Features

• Made in Germany. Designed in Switzerland - Production and development according to the highest quality standards
• Highly profitable - More energy yield over the same area even on cloudy or hot days
• Extremely durable - Outstanding cell stability and high breakage resistance thanks to patented SmartWire Connection Technology
• Consistently sustainable - Regional value creation, made without lead and produced using 100% renewable energy
• Guaranteed reliability - Industry-leading 25-year product and performance warranty
• Extremely aesthetic - Elegant Swiss design suitable for all roof shapes and sophisticated architecture

Specifications

• Cells Technology: Monocrystalline (Mono) N-SI, HJT with SWCTTM Bifacial Cell
• Number of Cells: 120
• Maximum Power (Pmax): 390 W at STC / 294 W at NOCT
• Maximum Power Voltage (Vmp): 38.9 V at STC / 36.7 V at NOCT
• Maximum Power Current (Imp): 10.1 A at STC / 8 A at NOCT
• Open-Circuit Voltage (VOC): 44.6 V at STC / 42.4 V at NOCT
• Short-Circuit Current (ISC): 10.6 A at STC / 8.5 A at NOCT
• Maximum System Voltage (Vmax): 1000 V
• Module Efficiency: 21.2%
• Frame Material: Anodized Aluminum
• Front Glass: Tempered Solar Glass, 3.2 mm, with Anti-Reflective Surface
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000/800 W/m2
• Output Cables: PV Cable 4 mm² / 11 AWG, 1.2 m / 47.2 in Length
• Connector Type: MC4, 2: MC4-Evo2, 3: UKT Energy PV-CO02, 4: TE Connectivity PV4-S1 in accordance with IEC 62852, IP68 Rated Only When Connected
• Fire Type: Type 2
• Maximum Design Load (Push/Pull): 83.5 lb
• Maximum Test Load (Push/Pull): 125.3 lb
• Operating Temperature: -40 to 185°F
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.234%/°K
• Temperature Coefficients of ISC: 0.033%/°K
• Junction Box: Protection Class IP68, 3 Diodes
• Standards: IEC 61215:2016, IEC 61730:2016, UL 61730-1, UL 61730-2, PID (IEC 62804), Salt Mist (IEC 61701)
• Warranty: 25 Years Product

Documents

• Specification Sheet

High-Performance 120 HJT Cells Technology

The Meyer Burger 390W solar module features cutting-edge 120 Heterojunction Technology (HJT) cells that combine crystalline silicon and amorphous silicon layers. This innovative design maximizes energy conversion efficiency while reducing power loss under real-world conditions. Thanks to HJT cells, this solar module offers excellent temperature stability and a superior low-light performance compared to traditional modules, ensuring consistent energy production throughout the day. The advanced cell architecture also contributes to the module’s longevity, enhancing the reliability and return on investment for residential and commercial solar projects.

Durable Black Frame and Backsheet for Aesthetic Appeal and Protection

Designed with a sleek black frame and black backsheet, the Meyer Burger 390W solar module not only delivers on performance but also boasts an appealing modern appearance. The black anodized aluminum frame provides robust mechanical strength, protecting the module against harsh weather conditions such as strong winds and heavy snow loads. The black backsheet enhances UV resistance and prevents moisture ingress, prolonging the module's lifespan. This refined design is not just about aesthetics; it also supports long-term durability and helps maintain high power output over many years in varied installation environments.

Type 2 Module with Versatile Applications

The Meyer Burger 390W module, classified as a Type 2 module, meets international standards for safety and performance, making it a versatile choice for multiple solar power systems. Its compatibility with various mounting systems and easy integration make it suitable for residential rooftops, commercial buildings, and utility-scale solar farms. This module offers a smart balance of high power density and manageable size, enabling seamless installation while optimizing available space. The Type 2 classification further assures users of stringent quality control and compliance, providing peace of mind for long-term renewable energy generation.
