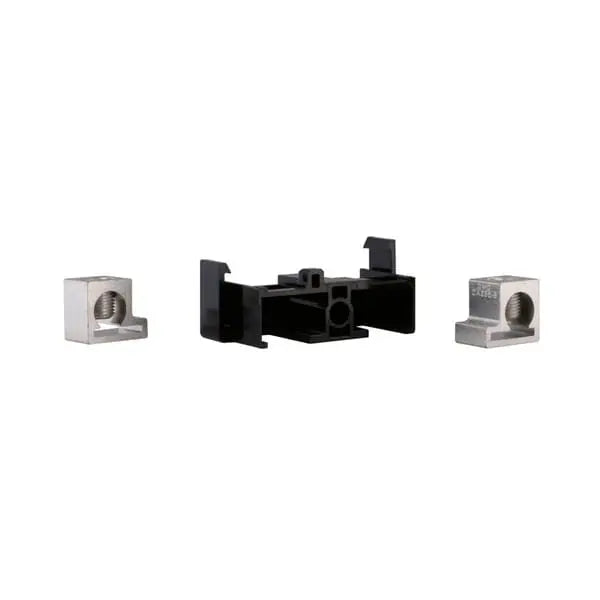

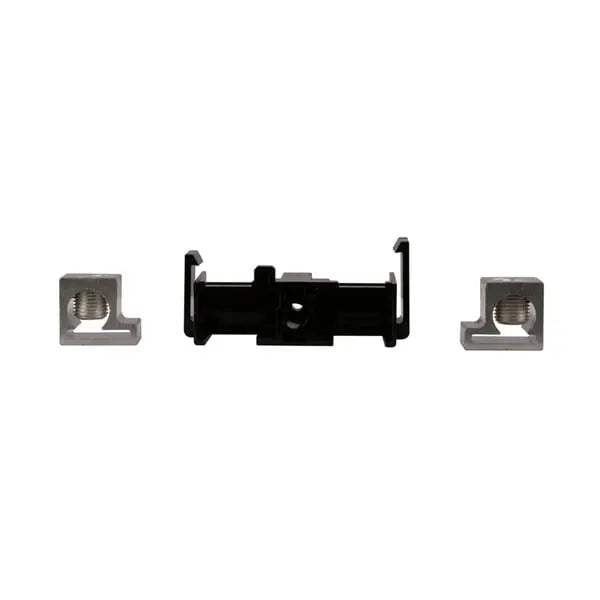

MCBK225 - Eaton Type CH Style 3/4 In Loadcenter and Breaker Accessories

The Eaton Type CH Style Lug Tree Kit is an essential accessory for enhancing the functionality of loadcenters and circuit breakers. Designed for use with Type CH loadcenters, this kit offers a 225A rating and a 10 kAIC (kiloampere interrupting capacity) for superior safety and performance. The lug tree supports wire sizes ranging from 2 AWG to 300 Kcmil for both copper and aluminum conductors, making it versatile for various wiring needs. Ideal for ECB unit enclosures, this kit provides an efficient and secure method for making multiple connections within your electrical panel.

Key Features:

• Accessory Type: Lug Tree Kit
• Compatibility: Type CH loadcenters and breakers
• Current Rating: 225A
• Interrupting Capacity: 10 kAIC for added safety
• Wire Size Compatibility:
• 2 AWG to 300 Kcmil (Cu/Al)
• Application: Ideal for ECB unit enclosures and electrical panel configurations

This lug tree kit ensures secure and efficient wiring connections, optimizing your loadcenter or breaker setup for enhanced performance and safety.

Documents:

Catalogs
Residential and Light Commercial, Loadcenters and Circuit Breakers, Volume 1 Tab 1

Specifications and datasheets
Eaton Specification Sheet - MCBK225
